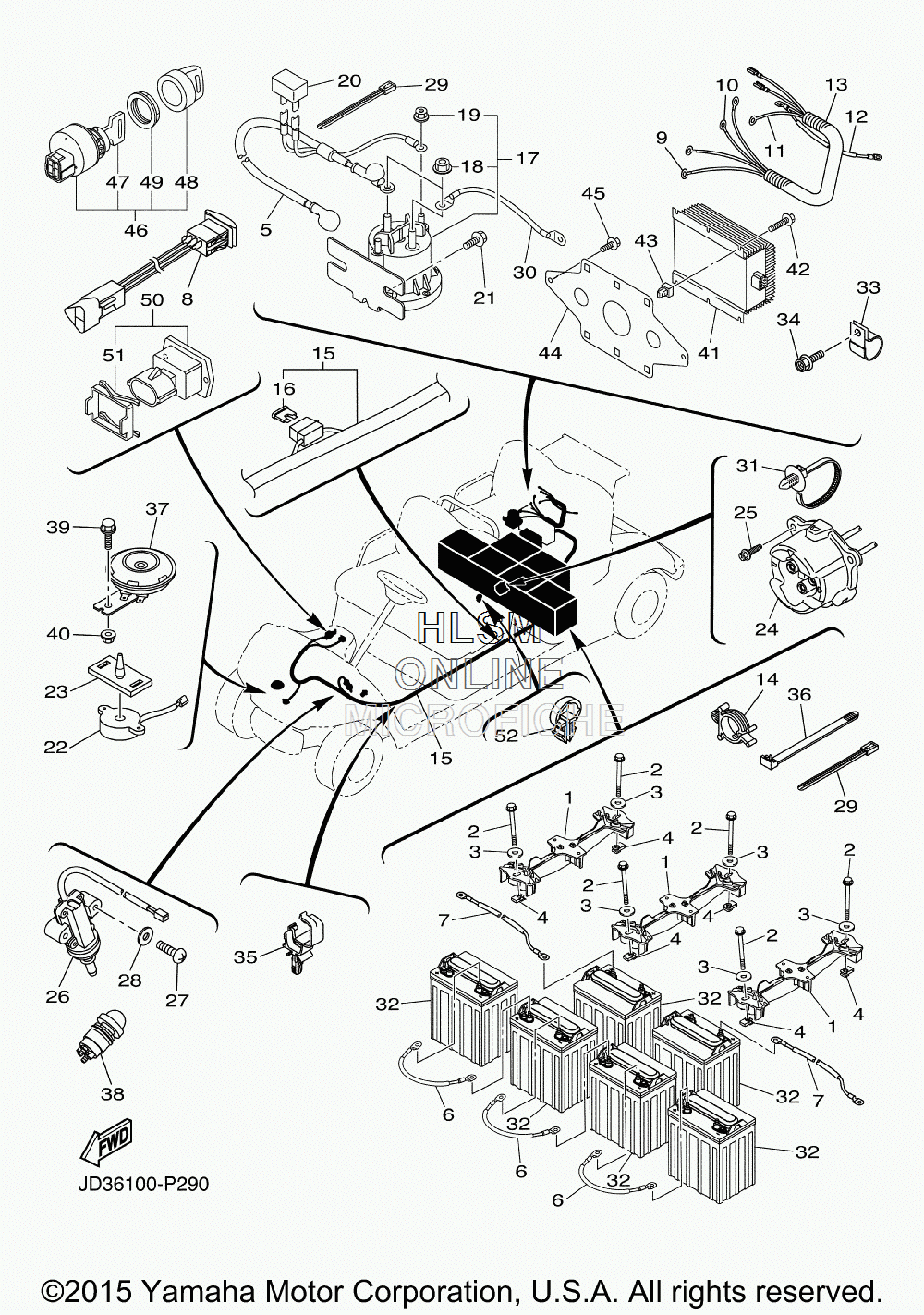

ELECTRICAL для Yamaha SPECIALTY VEHICLE CONCIERGE 4 PASSENGER [YDREX5 PTV] (JD46) - 2015 года выпуска
-
№АртикулНазвание
-
1JW9-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
2JW9-H1892-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390201-08310-00 WASHER, PLATEWASHER, PLATE
-
4JW9-K811K-00-00 NUT, TRIM FITTINGNUT, TRIM FITTING
-
5JW9-H2115-20-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6JW9-H2127-00-00 WIRE, LEAD 2WIRE, LEAD 2
-
7JW9-H2149-00-00 WIRE, LEAD 3WIRE, LEAD 3
-
8JU2-H2917-00-00 SWITCHSWITCH
-
9JU2-H2521-20-00 WIRE, LEAD (F1)WIRE, LEAD (F1)
-
10JU2-H2531-20-00 WIRE, LEAD (F2)WIRE, LEAD (F2)
-
11JU2-H6171-20-00 WIRE, LEAD 1 (A1)WIRE, LEAD 1 (A1)
-
12JW9-H6172-00-00 WIRE, LEAD 2 (A2)WIRE, LEAD 2 (A2)
-
13JU2-H7196-20-00 TUBE 1TUBE 1
-
1490464-25826-00 CLAMPCLAMP
-
15JD4-H2590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
16JN6-H2151-00-00 ...FUSE (10A)...FUSE (10A)
-
17JW9-H1950-20-00 RELAY ASSYRELAY ASSY
-
1890179-05807-00 ...NUT...NUT
-
1990179-08824-00 ...NUT...NUT
-
20JW9-85371-00-00 RESISTOR COMP.RESISTOR COMP.
-
2190105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
22JR1-H3383-02-00 BUZZERBUZZER
-
23JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
24JW9-H6181-00-00 RECEPTACLERECEPTACLE
-
25JW1-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
26JF7-82817-22-00 SWITCHSWITCH
-
2798502-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2892902-05600-00 WASHER, PLATEWASHER, PLATE
-
2990464-40825-00 CLAMPCLAMP
-
30JW2-H6527-00-00 WIRE 7WIRE 7
-
3190464-20005-00 CLAMPCLAMP
-
3390461-14108-00 CLAMPCLAMP
-
3490105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
3590464-20237-00 CLAMPCLAMP
-
3690464-51800-00 CLAMP (213X7.60)CLAMP (213X7.60)
-
374LR-83371-11-00 HORNHORN
-
38JR6-H270X-00-00 SWITCHSWITCH
-
3995817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4095702-06500-00 NUT, FLANGENUT, FLANGE
-
41JU6-H1910-10-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
42JC1-H252V-00-00 SCREW, SPECIALSCREW, SPECIAL
-
43JC1-H397K-00-00 NUT, INSERTNUT, INSERT
-
44JC1-F7876-30-00 BRKT.,SWITCHBRKT.,SWITCH
-
4590105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
46JW6-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
47JU6-H2511-10-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
485UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
49JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
50JW2-H351B-00-00 GAUGE, BATTERYGAUGE, BATTERY
-
51JW1-H1128-00-00 ...CLAMP...CLAMP
-
5290464-19815-00 CLAMPCLAMP
