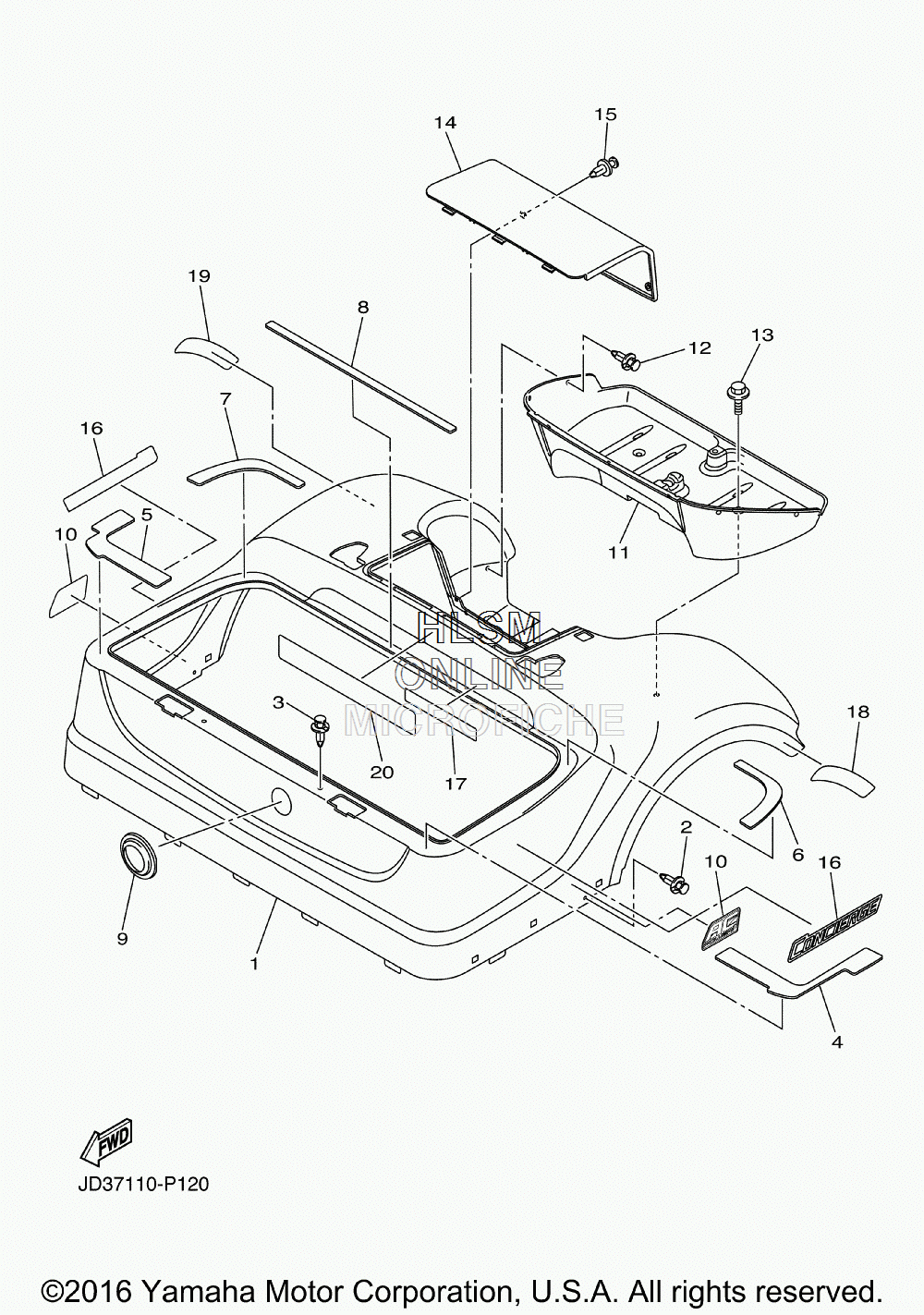

BODY 2 для Yamaha SPECIALTY VEHICLE CONCIERGE 4 PASSENGER [YDREX5AC PTV4](JD47) - 2015 года выпуска
-
№АртикулНазвание
-
1JW1-K8142-00-00 PANEL, REAR BODY (OPT) (FOR WS7)PANEL, REAR BODY (OPT) (FOR WS7)
-
1JW1-K8142-10-00 PANEL, REAR BODY (OPT) (FOR VDGS1)PANEL, REAR BODY (OPT) (FOR VDGS1)
-
1JW1-K8142-30-00 PANEL, REAR BODY (OPT) (FOR LNYM8)PANEL, REAR BODY (OPT) (FOR LNYM8)
-
1JW1-K8142-50-00 PANEL, REAR BODY (OPT) (FOR BMG)PANEL, REAR BODY (OPT) (FOR BMG)
-
1JW1-K8142-80-00 PANEL, REAR BODY (OPT) (FOR DPBST)PANEL, REAR BODY (OPT) (FOR DPBST)
-
1JW1-K8142-90-00 PANEL, REAR BODY (OPT) (FOR LNMP)PANEL, REAR BODY (OPT) (FOR LNMP)
-
1JW1-K8142-X0-00 PANEL, REAR BODY (OPT) (FOR DRMV)PANEL, REAR BODY (OPT) (FOR DRMV)
-
290269-06804-00 RIVETRIVET
-
390269-08813-00 RIVETRIVET
-
4JW1-F2873-10-00 SEAL 1SEAL 1
-
5JW1-F2874-10-00 SEAL 2SEAL 2
-
6JW1-F2875-10-00 SEAL 3SEAL 3
-
7JW1-F2876-10-00 SEAL 4SEAL 4
-
8JW1-F2877-10-00 SEAL, 5SEAL, 5
-
9JW9-K827A-00-00 GUIDE 1GUIDE 1
-
10JW3-F1781-00-00 EMBLEM 1EMBLEM 1
-
11JW1-K8237-10-00 COVER, REAR FLOORCOVER, REAR FLOOR
-
1290269-08813-00 RIVETRIVET
-
13JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
14JW1-K8151-00-00 PANEL, INSPECTION LID 1PANEL, INSPECTION LID 1
-
1590269-08813-00 RIVETRIVET
-
16JD1-F1781-00-00 EMBLEM 1EMBLEM 1
-
17JW9-K8298-10-00 PLATE, CAUTION 2PLATE, CAUTION 2
-
18JC0-H360G-10-00 REFLECTOR 3REFLECTOR 3
-
19JC0-H360H-10-00 REFLECTOR 4REFLECTOR 4
-
20JW9-K8297-00-00 PLATE, CAUTION 1PLATE, CAUTION 1
