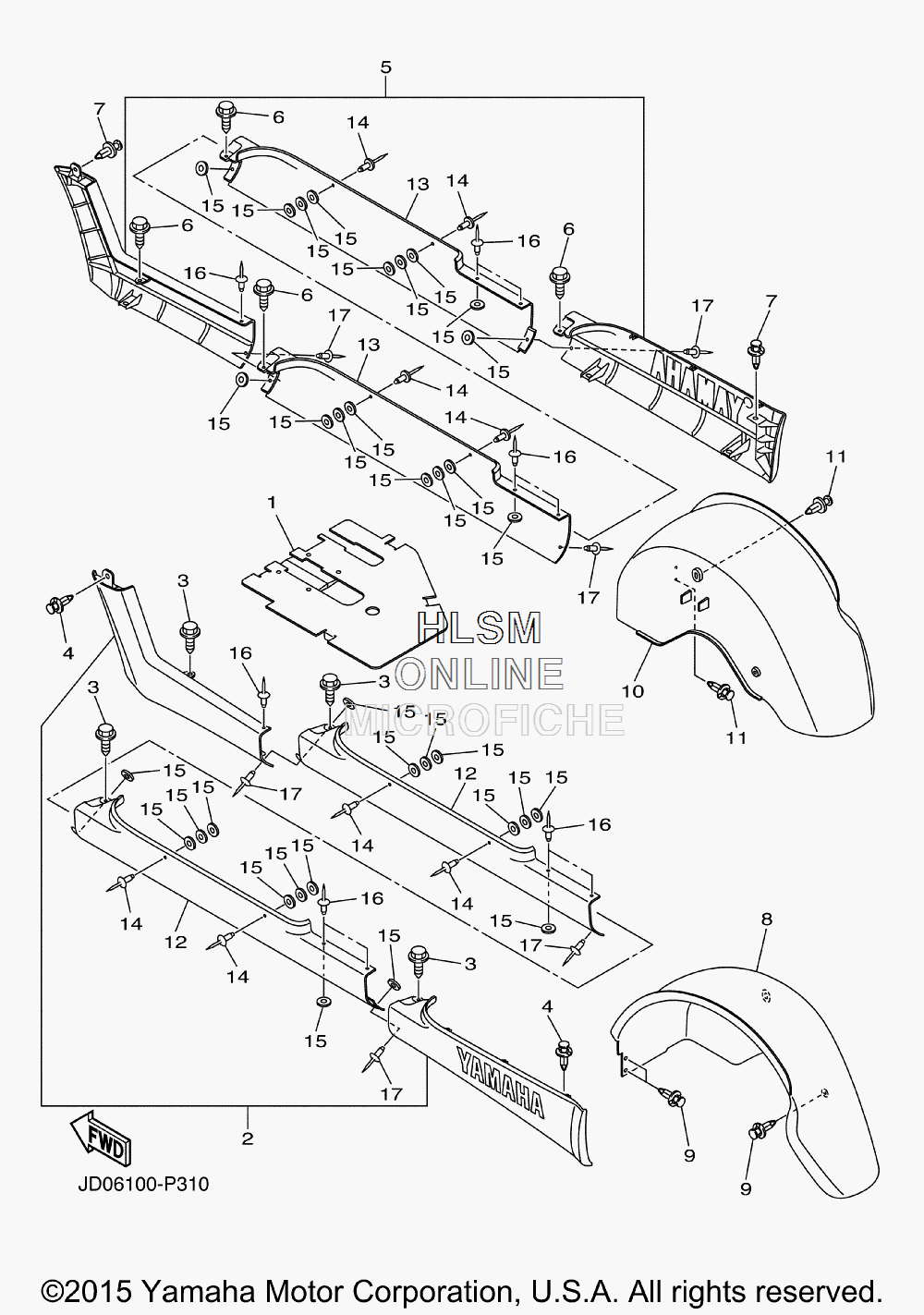

BODY FITTING для Yamaha SPECIALTY VEHICLE CONCIERGE 6 PASSENGER [YDRAX5 PTV] (JD06) - 2015 года выпуска
-
№АртикулНазвание
-
1JW1-K8270-11-00 LID ASSYLID ASSY
-
2JD1-K818A-00-00 PROTECTOR, SIDE PLATEPROTECTOR, SIDE PLATE
-
3JW1-F3396-01-00 SCREW, SPECIALSCREW, SPECIAL
-
490269-06804-00 RIVETRIVET
-
5JD1-K818B-00-00 PROTECTOR, SIDE PLATE 2PROTECTOR, SIDE PLATE 2
-
6JW1-F3396-01-00 SCREW, SPECIALSCREW, SPECIAL
-
790269-06804-00 RIVETRIVET
-
8JW1-K8191-00-00 PANEL, REAR FENDER 1PANEL, REAR FENDER 1
-
990269-06804-00 RIVETRIVET
-
10JW1-K8192-00-00 PANEL, REAR FENDER 2PANEL, REAR FENDER 2
-
1190269-06804-00 RIVETRIVET
-
12JD1-K8183-00-00 PLATE, SIDE SILL (L.H)PLATE, SIDE SILL (L.H)
-
13JD1-K8184-00-00 PLATE, SIDE SILL (R.H)PLATE, SIDE SILL (R.H)
-
14JD1-K7449-00-00 RIVET 1RIVET 1
-
15JD1-K7728-00-00 WASHERWASHER
-
16JD1-K7459-00-00 RIVET 2RIVET 2
-
1790267-48833-00 RIVET, BLINDRIVET, BLIND
