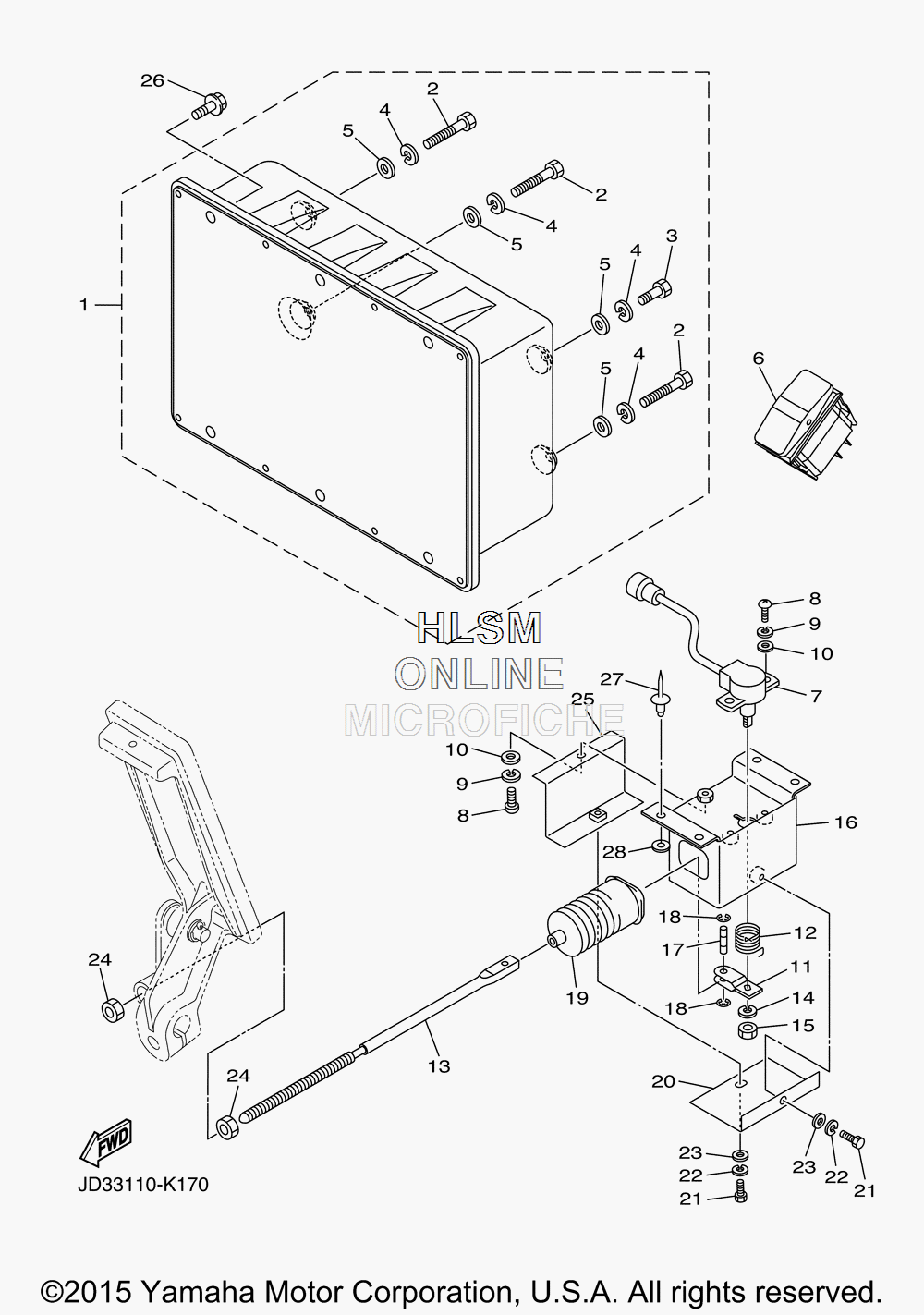

CONTROLLER 1 для Yamaha SPECIALTY VEHICLE CONCIERGE 6 PASSENGER [YDREX5PTV6] (JD36) - 2015 года выпуска
-
№АртикулНазвание
-
1JU6-H6510-00-00 MOTOR CONTROL UNIT ASSY (FOR GE MOTOR)MOTOR CONTROL UNIT ASSY (FOR GE MOTOR)
-
2JU2-H332G-00-00 ...BOLT, SPECIAL 1...BOLT, SPECIAL 1
-
3JU2-H332H-00-00 ...BOLT, SPECIAL 2...BOLT, SPECIAL 2
-
4JU2-H2534-00-00 ...WASHER,LOCK...WASHER,LOCK
-
5JU2-H2558-00-00 ...WASHER...WASHER
-
6JW2-H2727-00-00 SWITCHSWITCH
-
7JR1-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
898507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
992907-05100-00 WASHER, SPRINGWASHER, SPRING
-
1092907-05600-00 WASHER, PLATEWASHER, PLATE
-
11JF3-2625H-00-00 ARM, THROTTLEARM, THROTTLE
-
12JF3-27825-00-00 SPRING, RETURNSPRING, RETURN
-
13JU2-F7241-00-00 ROD, JOINTROD, JOINT
-
149290P-06100-00 WASHERWASHER
-
1595302-06600-00 NUT, HEXAGONNUT, HEXAGON
-
16JF3-27981-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
17JF3-27813-00-00 PIN, PEDAL CRANKPIN, PEDAL CRANK
-
1899001-04600-00 CIRCLIPCIRCLIP
-
19JN4-F7486-00-00 COVER 1COVER 1
