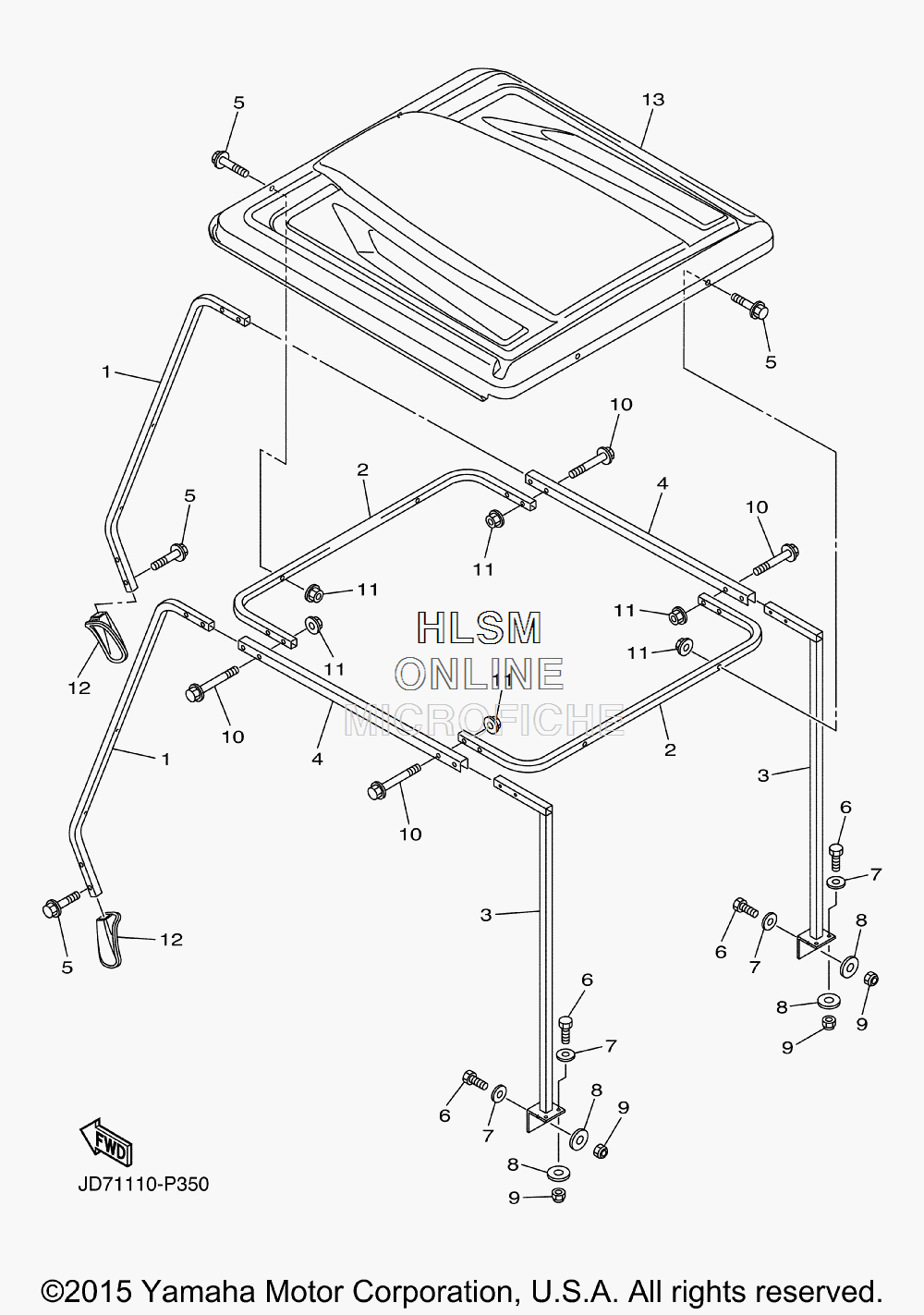

ALTERNATE FOR SUN ROOF для Yamaha SUPER HAULER [YDRAX5] (JD71) - 2015 года выпуска
-
№АртикулНазвание
-
1JW6-K8312-00-00 SUPPORT, SUN ROOF 1SUPPORT, SUN ROOF 1
-
2JW6-K8313-00-00 SUPPORT, SUN ROOF 2SUPPORT, SUN ROOF 2
-
3JD7-K831A-00-00 SUPPORT, ROOF 3SUPPORT, ROOF 3
-
4JW6-K831F-00-00 SUPPORT, ROOF 5SUPPORT, ROOF 5
-
5JW1-K8388-00-00 .BOLT, ROOF 1.BOLT, ROOF 1
-
6JD7-K8388-00-00 BOLT, ROOF 1BOLT, ROOF 1
-
7JD7-K837A-00-00 WASHER, ROOF 1WASHER, ROOF 1
-
8JD7-K837E-00-00 WASHER, ROOF 2WASHER, ROOF 2
-
9JD7-K8398-00-00 NUT, ROOF 1NUT, ROOF 1
-
1090105-088A8-00 BOLT, FLANGEBOLT, FLANGE
-
1195602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
12JW1-K832F-10-00 GROMMET, ROOF SUPPORT 1GROMMET, ROOF SUPPORT 1
-
13JW6-K8314-00-00 COVER, SUN ROOFCOVER, SUN ROOF
