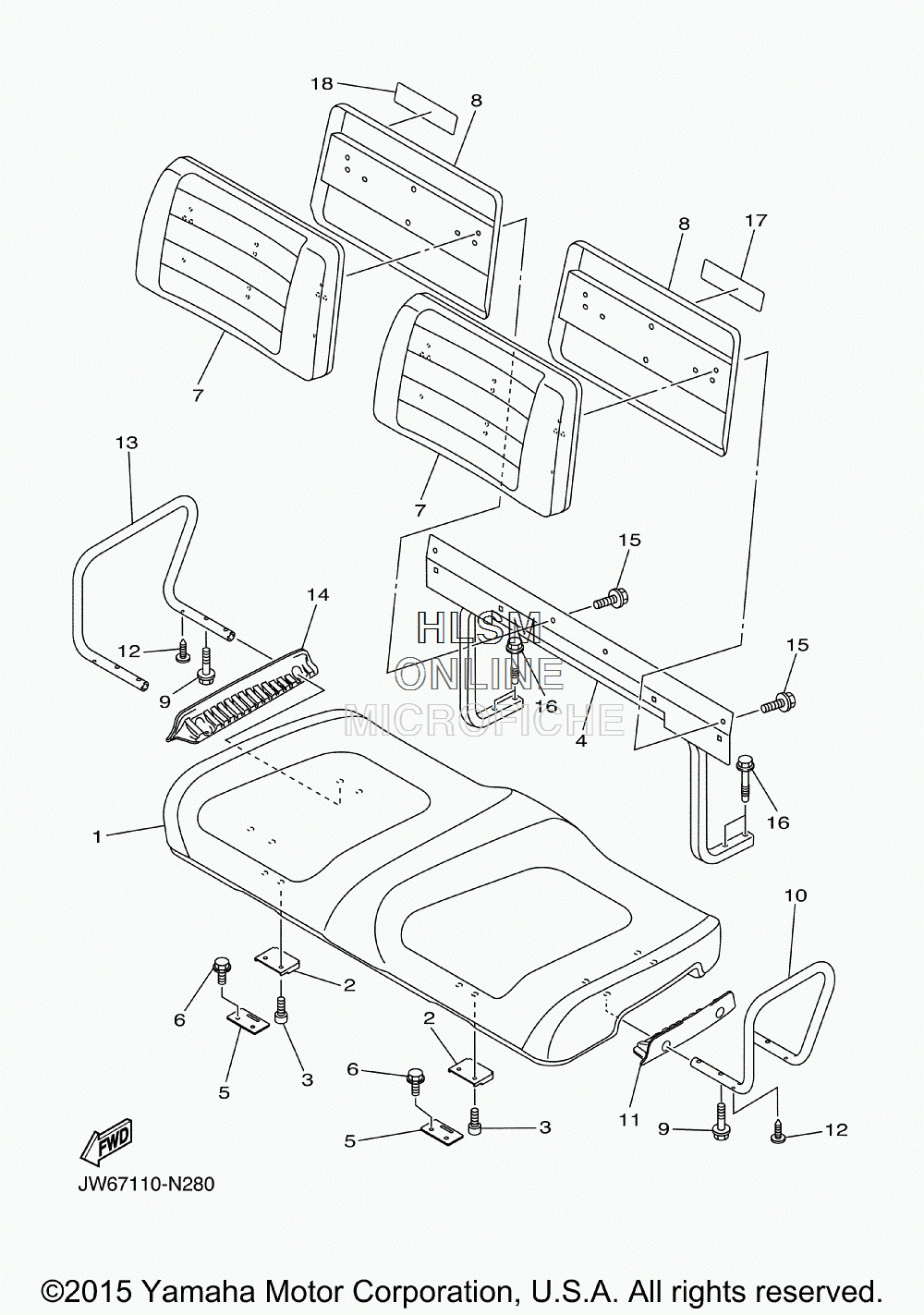

SEAT для Yamaha ADVEBTURER ONE [YTF1AX6F] (JW69) - 2016 года выпуска
-
№АртикулНазвание
-
1JW1-K8401-12-00 SEAT SUB-ASSY,CUSHIONSEAT SUB-ASSY,CUSHION
-
2JW1-K8426-00-00 HINGE, SEAT 1HINGE, SEAT 1
-
390110-06125-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4JW6-K8423-00-00 SUPPORT, SEAT BACKSUPPORT, SEAT BACK
-
5JW1-K8427-00-00 HINGE, SEAT 2HINGE, SEAT 2
-
690163-06802-00 SCREW, TAPPINGSCREW, TAPPING
-
7JW6-K8402-00-00 SEAT SUB ASSY, BACKSEAT SUB ASSY, BACK
-
8JJ3-K8413-10-00 COVER, SEAT BACKCOVER, SEAT BACK
-
990105-06129-00 BOLT, FLANGEBOLT, FLANGE
-
10JW6-K8361-00-00 ARM REST 1ARM REST 1
-
11JW6-K7213-00-00 TRIM, UPPERTRIM, UPPER
-
12JW6-K7329-00-00 RIVETRIVET
-
13JW6-K8362-00-00 ARM REST 2ARM REST 2
-
14JW6-K7214-00-00 TRIM, LOWERTRIM, LOWER
-
1590119-06837-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690105-088A4-00 BOLT, FLANGEBOLT, FLANGE
-
17JW6-K7766-01-00 LABEL, WARNING 6LABEL, WARNING 6
-
18JW6-K7767-01-00 LABEL, WARNING 7LABEL, WARNING 7
