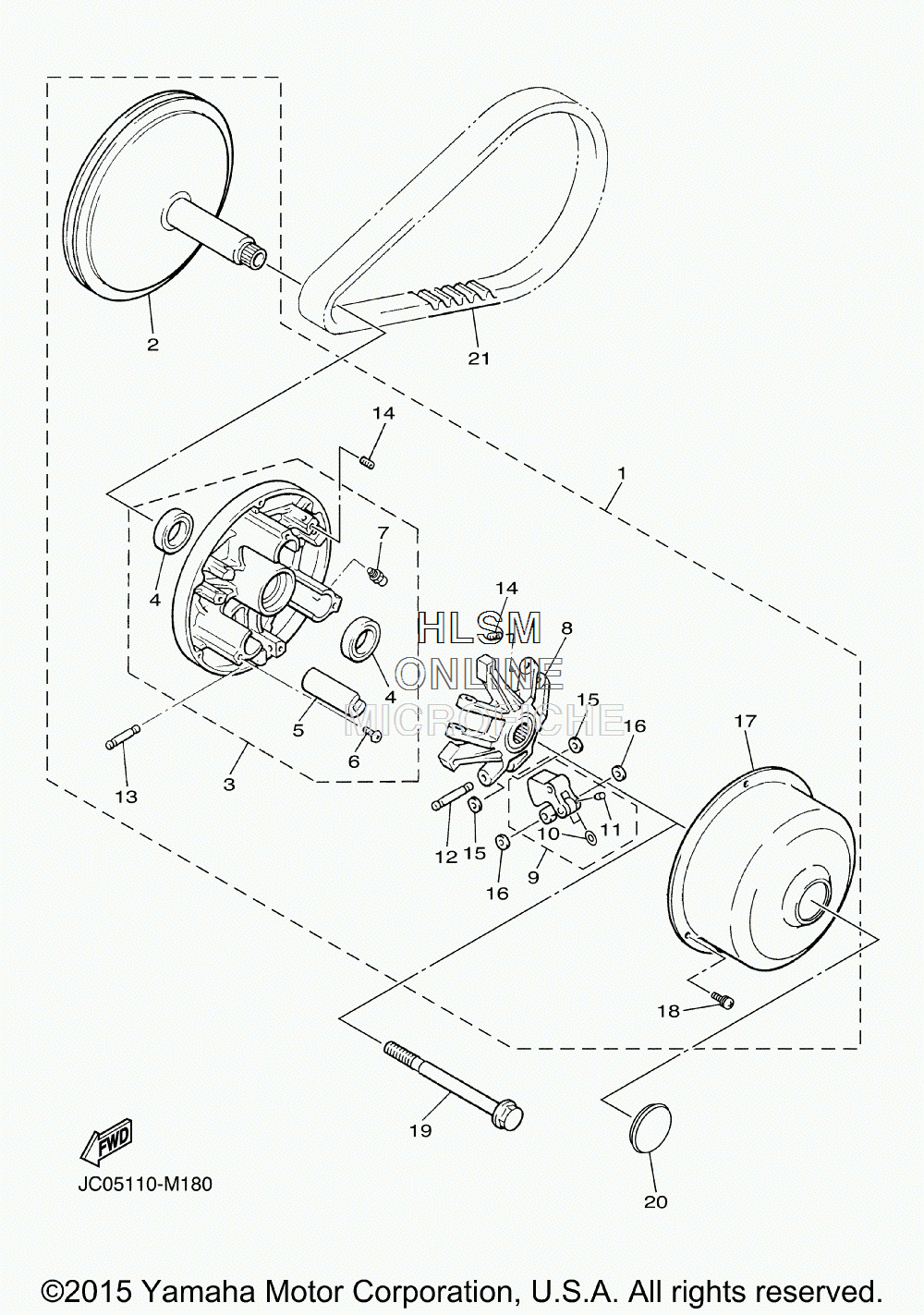

PRIMARY SHEAVE для Yamaha ADVENTURER SPORT 2+2 [YDRAX6] (JP04) - 2016 года выпуска
-
№АртикулНазвание
-
1JW8-G6201-22-00 PRIMARY CLUTCH ASSYPRIMARY CLUTCH ASSY
-
2JW8-G6210-00-00 ...PRIMARY FIXED SHEAVE COMP....PRIMARY FIXED SHEAVE COMP.
-
3JW8-G6220-22-00 ...PRIMARY SLIDING SHEAVE COMP....PRIMARY SLIDING SHEAVE COMP.
-
4JW8-G624A-00-00 ......OIL SEAL 1......OIL SEAL 1
-
5JW8-G6253-00-00 ......SLIDER......SLIDER
-
6JW8-G4189-00-00 ......SCREW......SCREW
-
7JW8-F135J-00-00 ......NIPPLE......NIPPLE
-
8JW8-G6251-21-00 ...SPIDER...SPIDER
-
9JW8-G6205-21-00 ...WEIGHT LINK ASSY...WEIGHT LINK ASSY
-
10JW8-G5618-00-00 ......WASHER, 1......WASHER, 1
-
1190113-04803-00 ......BOLT, SET......BOLT, SET
-
12JW8-G6236-20-00 ...PIN, WEIGHT...PIN, WEIGHT
-
13JW8-G6237-20-00 ...PIN, WEIGHT 2...PIN, WEIGHT 2
-
1490113-04803-00 ...BOLT, SET...BOLT, SET
-
15JW8-G5618-00-00 ...WASHER, 1...WASHER, 1
-
16JW8-G5621-00-00 ...WASHER, 2...WASHER, 2
-
17JW8-G6231-21-00 ...CAP...CAP
-
18JW8-G5282-00-00 ...SCREW...SCREW
-
19JW8-G6249-00-00 BOLTBOLT
-
20JW8-G7339-00-00 PLUGPLUG
-
21JC0-G6241-01-00 V-BELTV-BELT
