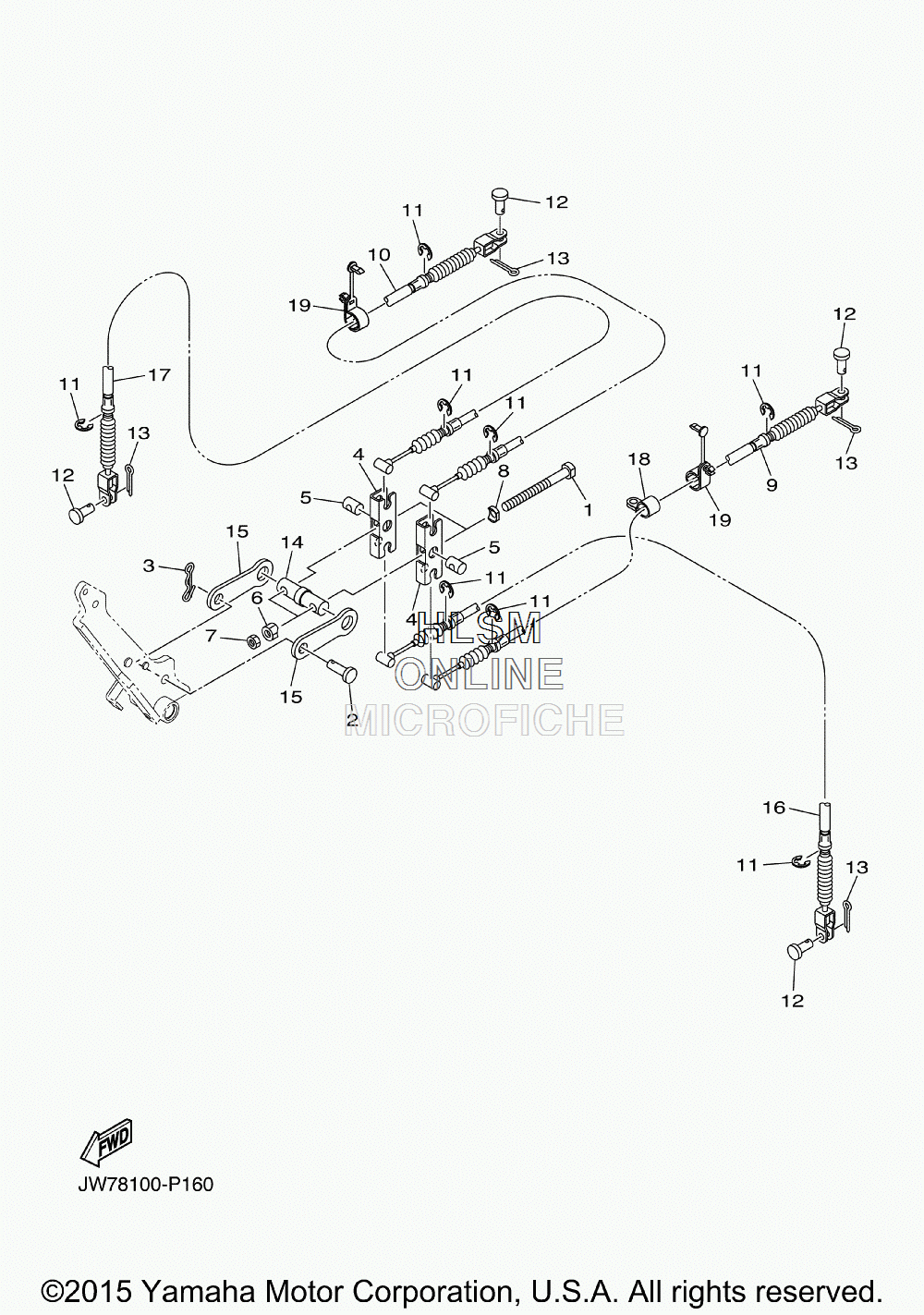

BRAKE - BRAKE SYSTEM для Yamaha ADVENTURER TWO [YTF2AX6F] (JW79) - 2016 года выпуска
-
№АртикулНазвание
-
1JW7-27227-00-00 BOLT, AJUSTINGBOLT, AJUSTING
-
291702-10022-00 PIN, CLEVISPIN, CLEVIS
-
390468-20196-00 CLIPCLIP
-
4JW7-F5681-00-00 EQUALIZER, BRAKEEQUALIZER, BRAKE
-
590249-14129-00 PINPIN
-
6JW7-27238-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
795302-08700-00 NUT, HEXAGONNUT, HEXAGON
-
8JW7-27213-00-00 COLLARCOLLAR
-
9JW7-26341-10-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
10JW7-26351-10-00 CABLE, BRAKECABLE, BRAKE
-
1199002-09600-00 CIRCLIPCIRCLIP
-
1291702-08018-00 PIN, CLEVISPIN, CLEVIS
-
1391490-25020-00 PIN. COTTERPIN. COTTER
-
14JW7-27229-00-00 PIN, JOINTPIN, JOINT
-
15JW7-27275-00-00 PLATEPLATE
-
16JW7-26361-10-00 CABLE, BRAKECABLE, BRAKE
-
17JW7-26373-10-00 CABLE, BRAKE 4CABLE, BRAKE 4
-
1890461-08072-00 CLAMPCLAMP
-
19JW7-F312H-00-00 CLAMPCLAMP
