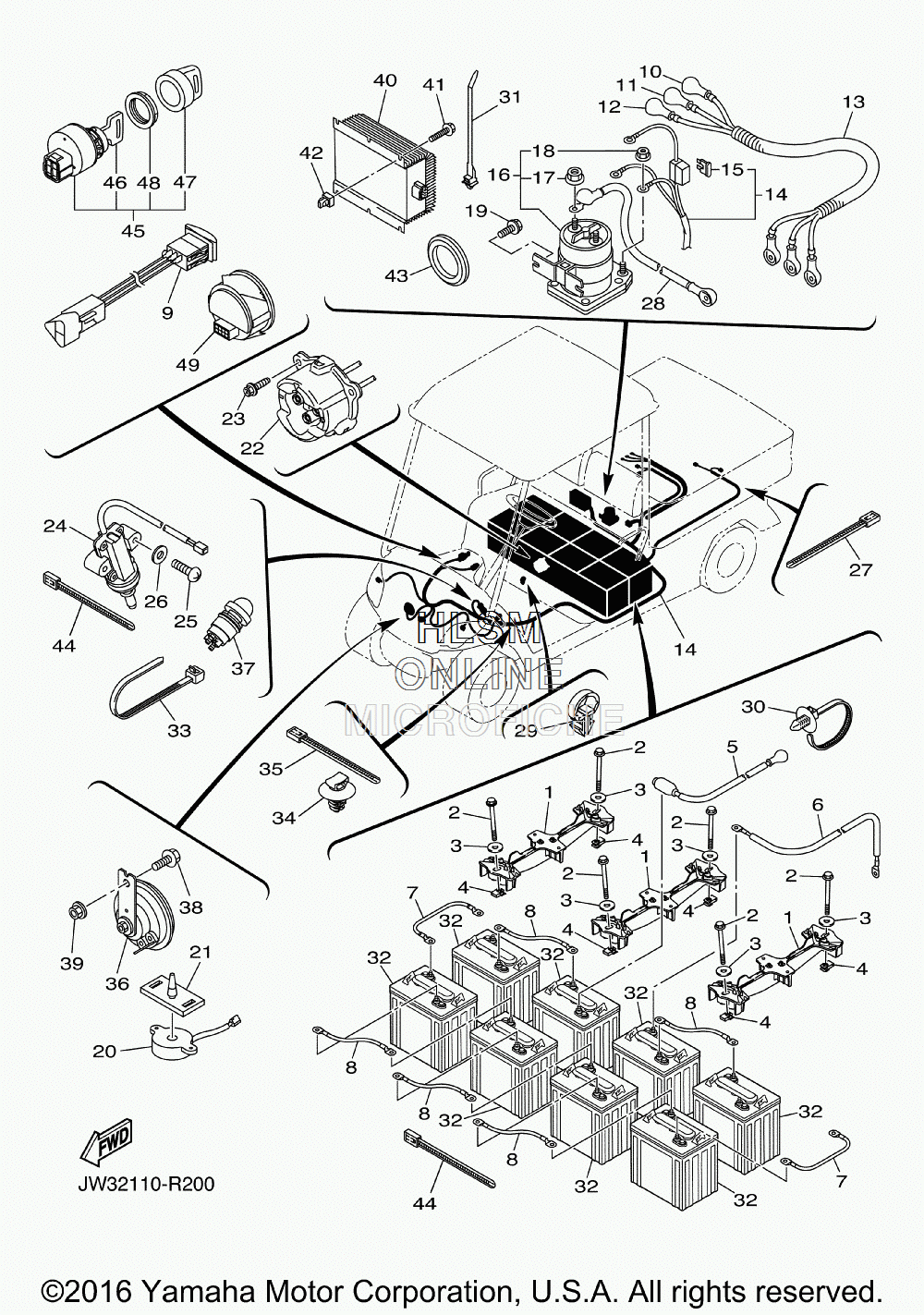

ELECTRICAL для Yamaha ADVENTURER TWO [YTF2EX6] (JW32) - 2016 года выпуска
-
№АртикулНазвание
-
1JW9-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
2JW9-H1892-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390201-08310-00 WASHER, PLATEWASHER, PLATE
-
4JW9-K811K-00-00 NUT, TRIM FITTINGNUT, TRIM FITTING
-
5JW3-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6JW3-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
7JW3-H2127-00-00 WIRE, LEAD 2WIRE, LEAD 2
-
8JW3-H2149-00-00 WIRE, LEAD 3WIRE, LEAD 3
-
9JU2-H2917-00-00 SWITCHSWITCH
-
10JW3-H6171-00-00 WIRE, LEAD 1 (U)WIRE, LEAD 1 (U)
-
11JW3-H6172-00-00 WIRE, LEAD 2 (V)WIRE, LEAD 2 (V)
-
12JW3-H6173-00-00 WIRE, LEAD 3 (W)WIRE, LEAD 3 (W)
-
13JU2-H7196-20-00 TUBE 1TUBE 1
-
14JW3-H2590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
15JN6-H2151-00-00 ...FUSE (10A)...FUSE (10A)
-
16JU6-H1950-00-00 RELAY ASSYRELAY ASSY
-
1790179-08887-00 ...NUT...NUT
-
1890179-05886-00 ...NUT...NUT
-
1990105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
20JR1-H3383-02-00 BUZZERBUZZER
-
21JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
22JW9-H6181-00-00 RECEPTACLERECEPTACLE
-
23JW1-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
24JF7-82817-22-00 SWITCHSWITCH
-
2598580-05525-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2692990-05600-00 WASHER, PLATEWASHER, PLATE
-
2790464-40825-00 CLAMPCLAMP
-
28JW3-H6527-00-00 WIRE 7WIRE 7
-
2990464-19815-00 CLAMPCLAMP
-
3090464-20005-00 CLAMPCLAMP
-
3190464-38800-00 CLAMPCLAMP
-
3390464-48800-00 CLAMPCLAMP
-
34JW3-F2465-00-00 HOLDERHOLDER
-
3590464-40825-00 CLAMPCLAMP
-
364LR-83371-11-00 HORNHORN
-
37JR6-H270X-00-00 SWITCHSWITCH
-
3895822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3995702-06500-00 NUT, FLANGENUT, FLANGE
-
40JU6-H1910-10-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
41JC1-H252V-00-00 SCREW, SPECIALSCREW, SPECIAL
-
42JC1-H397K-00-00 NUT, INSERTNUT, INSERT
-
4390480-48243-00 GROMMETGROMMET
-
4490464-40825-00 CLAMPCLAMP
-
45JW6-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
46JU6-H2511-10-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
475UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
48JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
49JC1-H351B-01-00 GAUGE, BATTERYGAUGE, BATTERY
