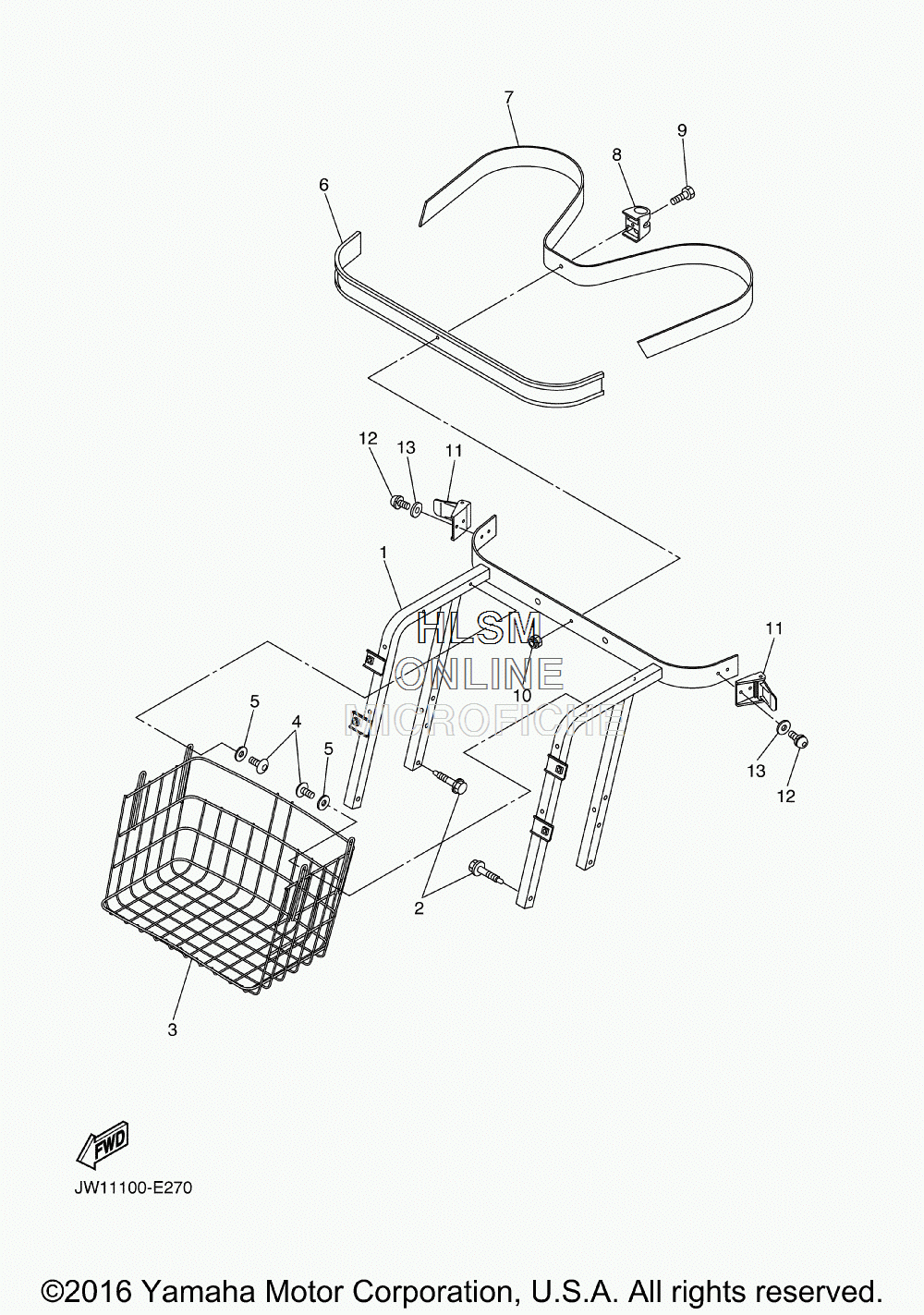

CARRIER для Yamaha GOLF CAR GAS [DRIVE YDRAX6F] (JC24) - 2016 года выпуска
-
№АртикулНазвание
-
1JW1-K8423-10-00 SUPPORT, SEAT BACKSUPPORT, SEAT BACK
-
290109-08002-00 BOLTBOLT
-
3JW1-K8340-00-00 LUGGAGE RACK ASSY., REARLUGGAGE RACK ASSY., REAR
-
490110-06102-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590201-068G7-00 WASHER, PLATEWASHER, PLATE
-
6JF2-K8356-00-00 PAD, BAG SUPPORTPAD, BAG SUPPORT
-
7JN6-K8355-20-00 BANDBAND
-
8JW1-K834G-00-00 HOLDER, RAKE SANDHOLDER, RAKE SAND
-
99708R-06020-00 BOLTBOLT
-
1090185-06836-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
11JN6-K8380-00-00 LOCK ASSYLOCK ASSY
-
1290159-06845-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
139299R-06200-00 WASHERWASHER
