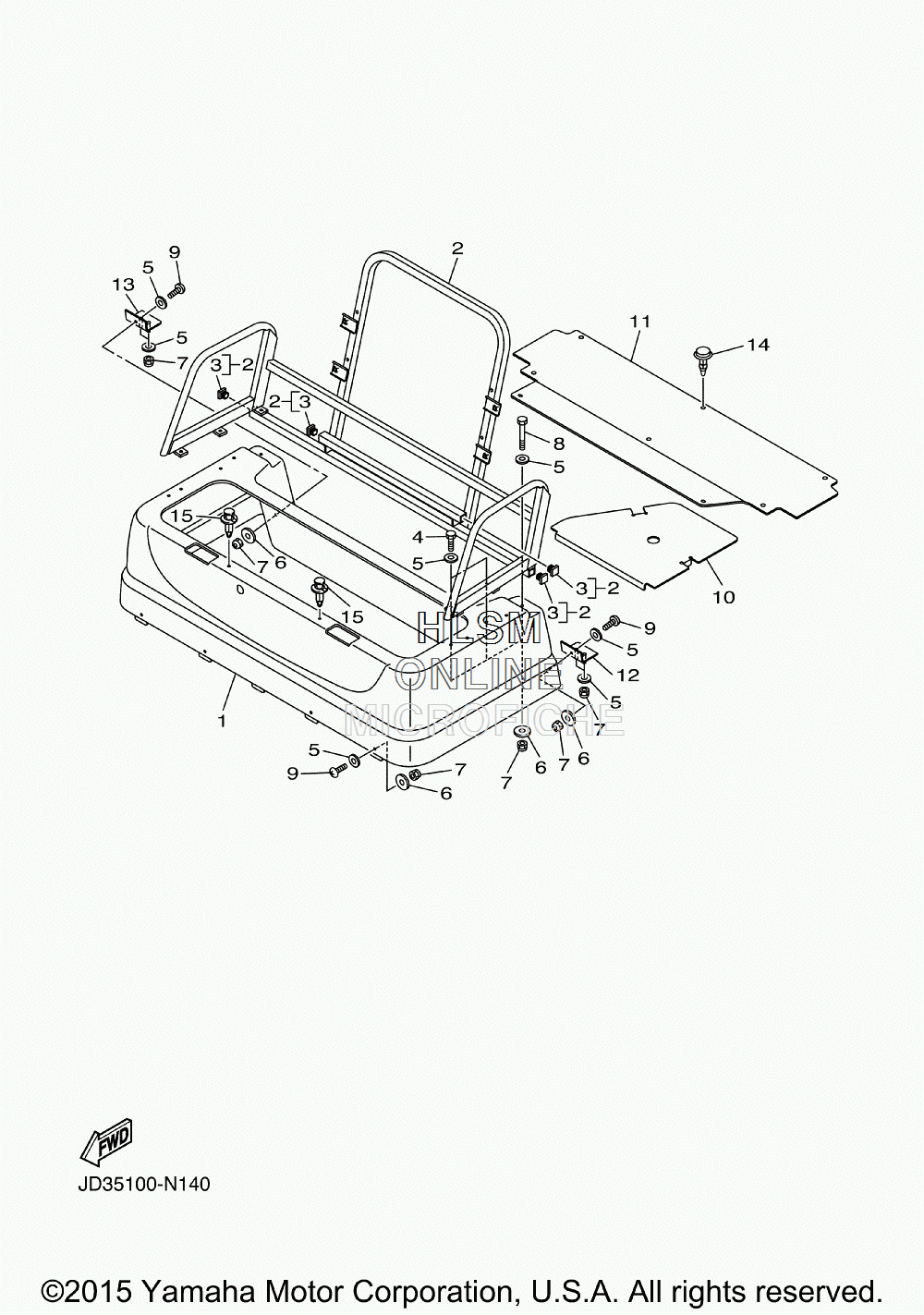

BODY 3 для Yamaha SPECIALTY VEHICLE CONCIERGE 4 PASSENGER [YDREX6 PTV-4] (JD48) - 2016 года выпуска
-
№АртикулНазвание
-
1JD4-K8141-00-00 PANEL, INTERMEDIATE BODY (OPT) (FOR WS7)PANEL, INTERMEDIATE BODY (OPT) (FOR WS7)
-
1JD4-K8141-10-00 PANEL, INTERMEDIATE BODY (OPT) (FOR VDGS1)PANEL, INTERMEDIATE BODY (OPT) (FOR VDGS1)
-
1JD4-K8141-30-00 PANEL, INTERMEDIATE BODY (OPT) (FOR LNYM8)PANEL, INTERMEDIATE BODY (OPT) (FOR LNYM8)
-
1JD4-K8141-50-00 PANEL, INTERMEDIATE BODY (OPT) (FOR BMG)PANEL, INTERMEDIATE BODY (OPT) (FOR BMG)
-
1JD4-K8141-80-00 PANEL, INTERMEDIATE BODY (OPT) (FOR DPBST)PANEL, INTERMEDIATE BODY (OPT) (FOR DPBST)
-
1JD4-K8141-90-00 PANEL, INTERMEDIATE BODY (OPT) (FOR LNMP)PANEL, INTERMEDIATE BODY (OPT) (FOR LNMP)
-
1JD4-K8141-X0-00 PANEL, INTERMEDIATE BODY (OPT) (FOR DRMV)PANEL, INTERMEDIATE BODY (OPT) (FOR DRMV)
-
2JD1-K8460-00-00 SEAT FRAME COMP.SEAT FRAME COMP.
-
35FU-F111A-00-00 ...CAP, MAIN PIPE...CAP, MAIN PIPE
-
4JD1-K7481-00-00 BOLTBOLT
-
5JD1-K7525-00-00 WASHER 1WASHER 1
-
6JD1-K7526-00-00 WASHER 2WASHER 2
-
7JD1-K7528-00-00 NUTNUT
-
8JD1-K7574-00-00 BOLTBOLT
-
9JD1-K7387-00-00 SCREWSCREW
-
10JD1-K811U-00-00 LID 2LID 2
-
11JD1-K8241-00-00 MAT, REAR FLOORMAT, REAR FLOOR
-
12JD1-K8135-00-00 BRACKET 1BRACKET 1
-
13JD1-K8136-00-00 BRACKET 2BRACKET 2
-
14JW1-K7449-00-00 RIVET 1RIVET 1
-
1590269-08813-00 RIVETRIVET
