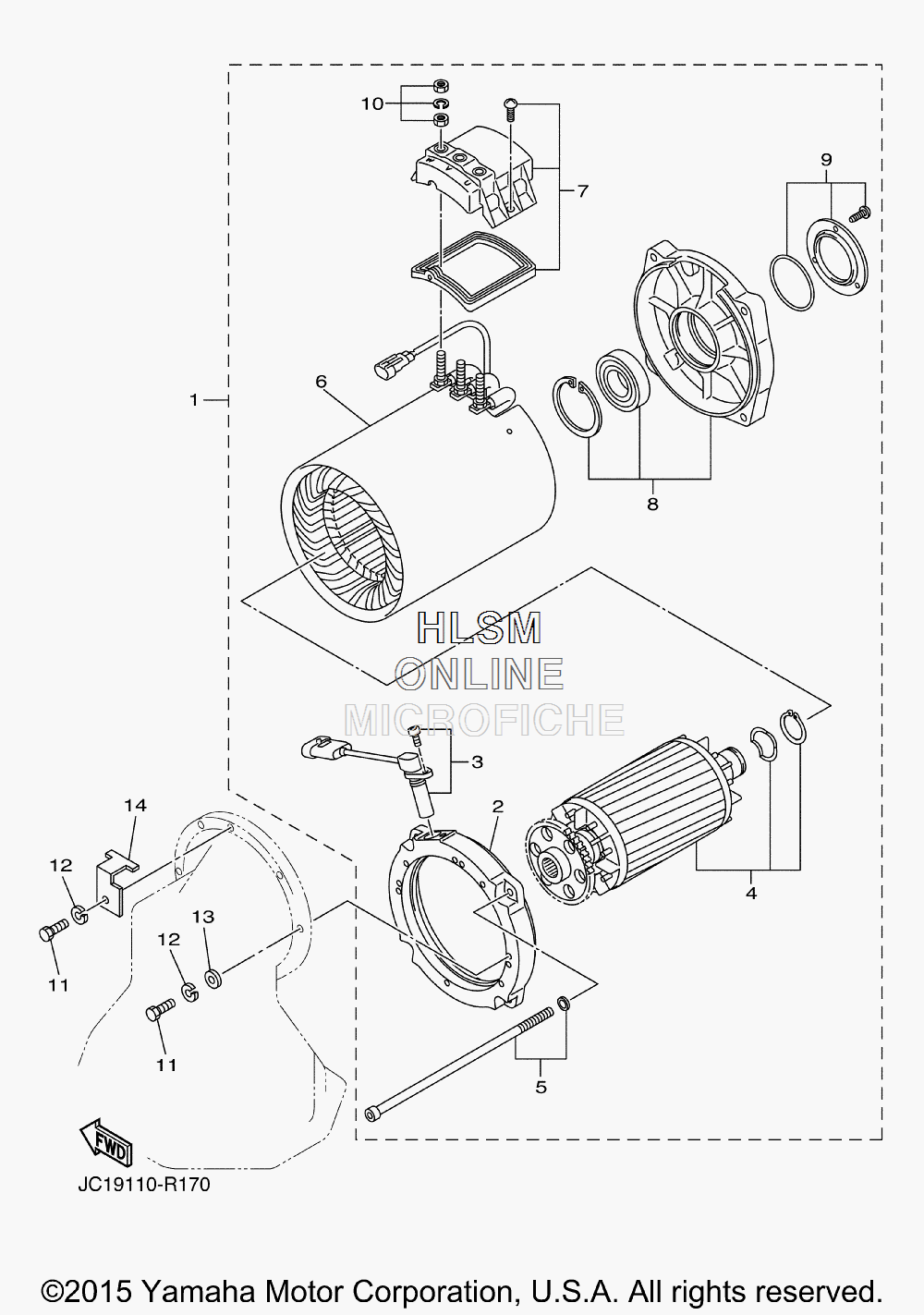

STARTER для Yamaha SPECIALTY VEHICLE CONCIERGE 6 PASSENGER [YDREX6 PTV-6] (JD38) - 2016 года выпуска
-
№АртикулНазвание
-
1JW3-H1890-00-00 MOTOR ASSYMOTOR ASSY
-
2JW3-H183J-00-00 ...BRACKET, FRONT...BRACKET, FRONT
-
3JW3-H3756-00-00 ...SENSOR, UNIT...SENSOR, UNIT
-
4JW3-H1155-00-00 ...ARMATURE...ARMATURE
-
5JW3-H2379-00-00 ...SCREW, UNIT...SCREW, UNIT
-
6JW3-H1117-00-00 ...STATOR...STATOR
-
7JW3-H165G-00-00 ...PLTE, TERMINAL...PLTE, TERMINAL
-
8JW3-H182J-00-00 ...BRACKET COMPLETE...BRACKET COMPLETE
-
9JW3-H1869-00-00 ...COVER, DUST...COVER, DUST
-
10JW3-H182V-00-00 ...NUT & WASHER KIT...NUT & WASHER KIT
-
1190101-069U0-00 BOLTBOLT
-
1290215-06811-00 WASHER, LOCKWASHER, LOCK
-
1390201-068E2-00 WASHER, PLATEWASHER, PLATE
-
14JU2-H218E-01-00 RELIEF, STRAIN 1RELIEF, STRAIN 1
