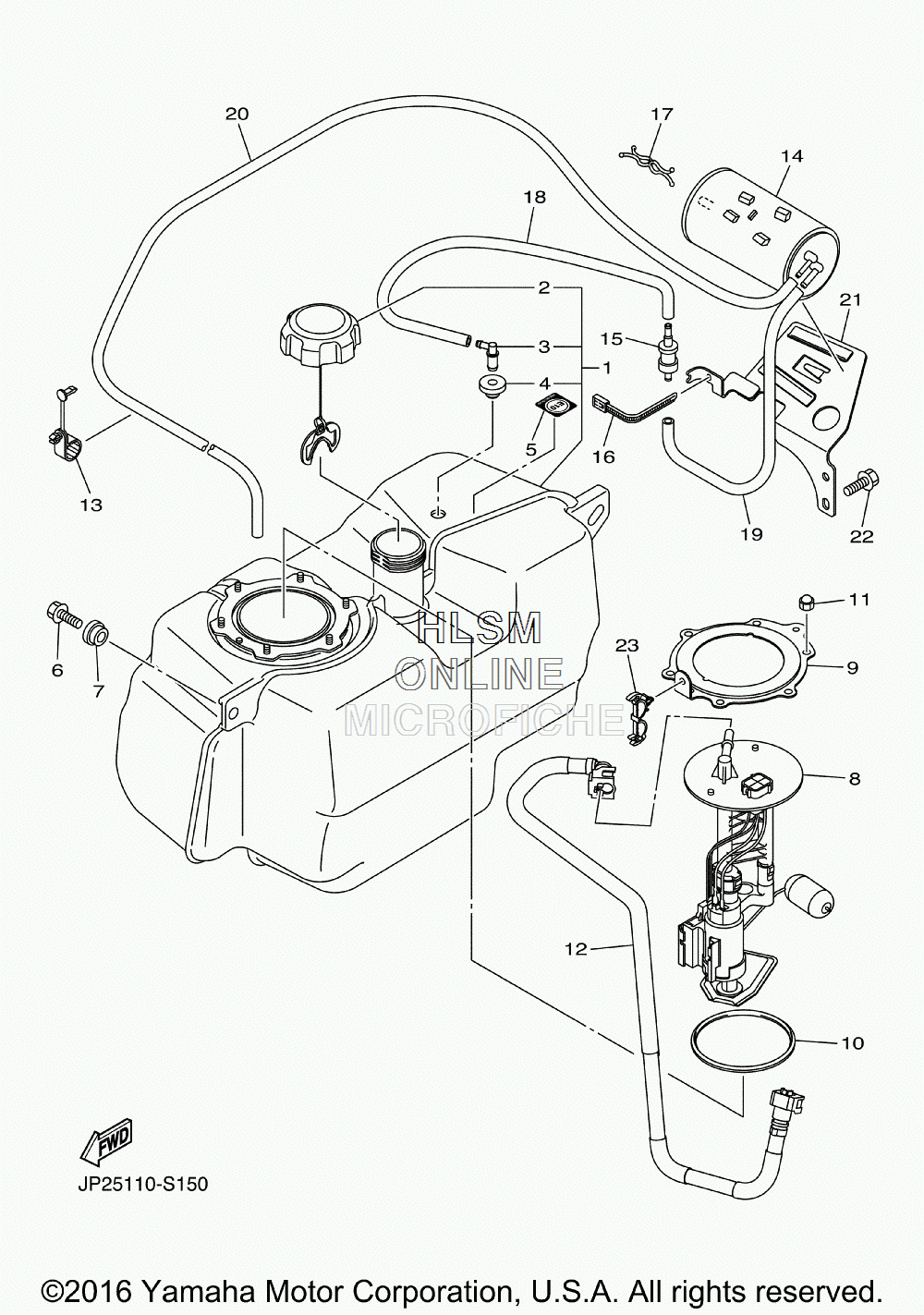

FUEL TANK для Yamaha ADVENTURER SPORT (YTF1A17SPORT SERIAL: JW6-9000101) - 2017 года выпуска
-
№АртикулНазвание
-
1JC0-F4111-01-00 TANK, FUELTANK, FUEL
-
2JW1-F4610-00-00 ...CAP ASSY...CAP ASSY
-
3JW1-F4112-00-00 ...PIPE...PIPE
-
4JU5-F4375-00-00 ...GROMMET...GROMMET
-
5B88-2817K-00-00 LABEL,FUELLABEL,FUEL
-
6JW1-F1738-00-00 BOLTBOLT
-
790560-08251-00 SPACERSPACER
-
8J0D-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
9JC0-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
101S3-24486-00-00 O-RINGO-RING
-
1195302-06800-00 NUT, CROWNNUT, CROWN
-
12J0D-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
13JW7-F312H-00-00 CLAMPCLAMP
-
147CC-F4170-01-00 CANISTER ASSYCANISTER ASSY
-
154WM-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
1690464-40825-00 CLAMPCLAMP
-
17JW7-F1977-00-00 CLAMP, FUEL PIPECLAMP, FUEL PIPE
-
18JW7-F4314-10-00 PIPE 4PIPE 4
-
19JW6-F4316-00-00 PIPE 6PIPE 6
-
20JW1-F4317-00-00 PIPE 7PIPE 7
-
21JW6-F419A-10-00 HOLDERHOLDER
-
22JW1-F1738-00-00 BOLTBOLT
-
2390464-18246-00 CLAMPCLAMP
