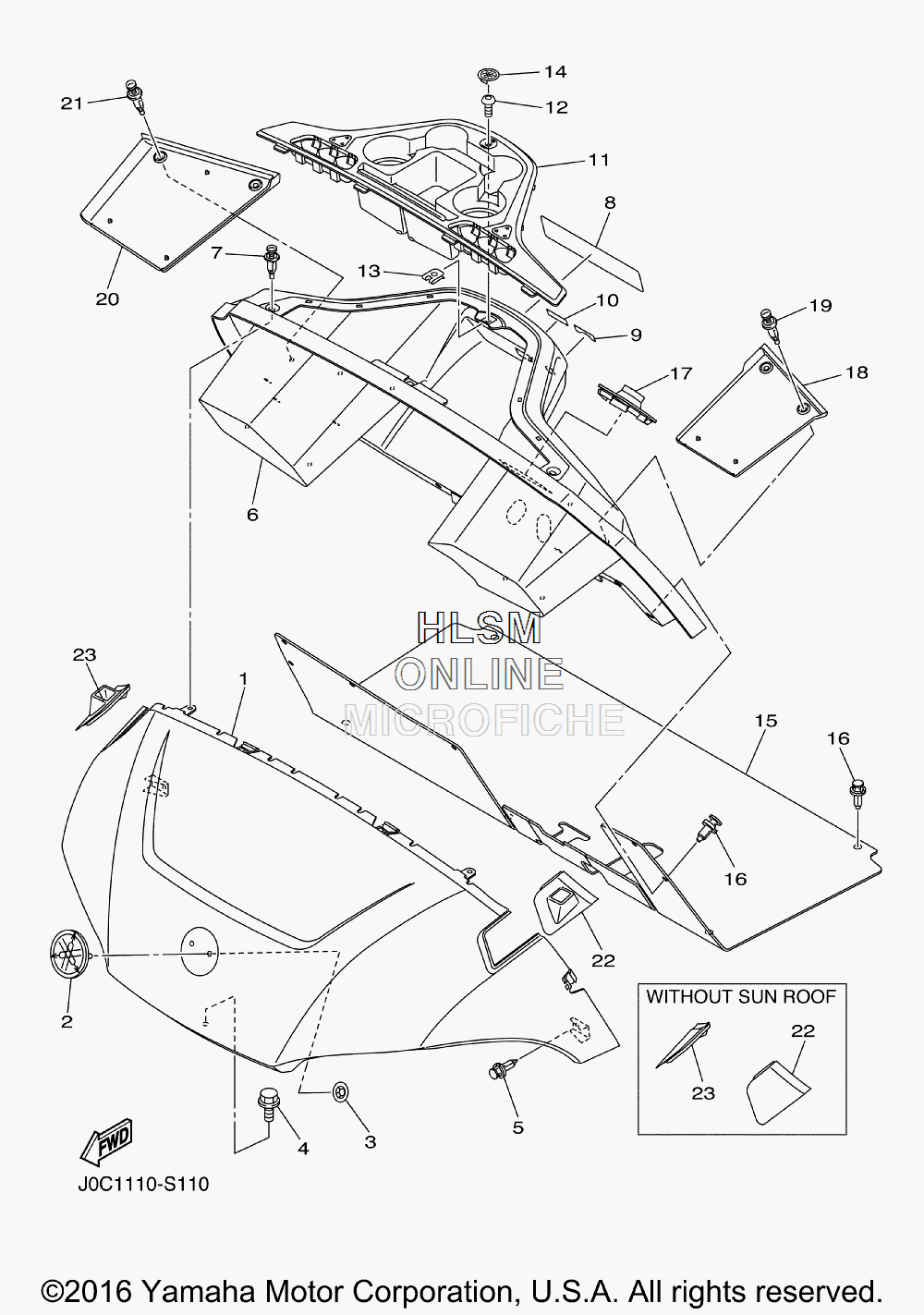

BODY для Yamaha DRIVE2 (DR2E17AC SERIAL: J0J-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0B-K8115-A0-00 COWL, FRONT (FOR BW1 - BLUISH WHITE)COWL, FRONT (FOR BW1 - BLUISH WHITE)
-
1J0B-K8115-10-00 COWL, FRONT (FOR VDGS1 - VERY DARK GREEN)COWL, FRONT (FOR VDGS1 - VERY DARK GREEN)
-
1J0B-K8115-60-00 COWL, FRONT (FOR DNMC - DARK GRAY METALLIC)COWL, FRONT (FOR DNMC - DARK GRAY METALLIC)
-
1J0B-K8115-50-00 COWL, FRONT (FOR HTR - HEAT RED)COWL, FRONT (FOR HTR - HEAT RED)
-
1J0B-K8115-B0-00 COWL, FRONT (FOR NYS4 - GRAYISH YELLOW)COWL, FRONT (FOR NYS4 - GRAYISH YELLOW)
-
1J0B-K8115-40-00 COWL, FRONT (FOR DYNM2 - DARK YELLOWISH GRAY)COWL, FRONT (FOR DYNM2 - DARK YELLOWISH GRAY)
-
1J0B-K8115-30-00 COWL, FRONT (FOR LNMP - SILVER METALLIC)COWL, FRONT (FOR LNMP - SILVER METALLIC)
-
1J0B-K8115-00-00 COWL, FRONT (FOR DNBME - GRAYISH BLUE)COWL, FRONT (FOR DNBME - GRAYISH BLUE)
-
1J0B-K8115-20-00 COWL, FRONT (FOR LNYM8 - CHAMPAGNE METALLIC)COWL, FRONT (FOR LNYM8 - CHAMPAGNE METALLIC)
-
2J0B-F4161-00-00 EMBLEM 1EMBLEM 1
-
3JU0-K7573-00-00 NUT, SPECIALNUT, SPECIAL
-
490105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
590269-06804-00 RIVETRIVET
-
6J0B-K8114-00-00 PANEL, FRONTPANEL, FRONT
-
790269-07803-00 RIVETRIVET
-
8J0B-K7768-00-00 LABEL, WARNING 8 (ENGLISH)LABEL, WARNING 8 (ENGLISH)
-
9J0B-K8282-00-00 PLATE, SWITCH PANELPLATE, SWITCH PANEL
-
10J0C-K7741-00-00 INDICATOR 1INDICATOR 1
-
11J0B-K835E-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
-
1290111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1390183-05008-00 NUT, SPRINGNUT, SPRING
-
14J0B-H2370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
15J0B-K8233-00-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
1690269-09003-00 RIVETRIVET
-
17J0B-K8273-00-00 COVER, HOLECOVER, HOLE
-
18J0B-K8243-00-00 MAT, REAR BODY SIDE (LH)MAT, REAR BODY SIDE (LH)
-
1990269-07803-00 RIVETRIVET
-
20J0B-K8244-00-00 MAT, REAR BODY SIDE (RH)MAT, REAR BODY SIDE (RH)
-
2190269-07803-00 RIVETRIVET
-
22J0B-K832F-00-00 GROMMET, ROOF SUPPORT 1 (WITHOUT SUN ROOF)GROMMET, ROOF SUPPORT 1 (WITHOUT SUN ROOF)
-
22J0B-K832F-10-00 GROMMET, ROOF SUPPORT 1 (WITH SUN ROOF)GROMMET, ROOF SUPPORT 1 (WITH SUN ROOF)
-
23J0B-K832G-10-00 GROMMET, ROOF SUPPORT 2 (WITH SUN ROOF)GROMMET, ROOF SUPPORT 2 (WITH SUN ROOF)
-
23J0B-K832G-00-00 GROMMET, ROOF SUPPORT 2 (WITHOUT SUN ROOF)GROMMET, ROOF SUPPORT 2 (WITHOUT SUN ROOF)
