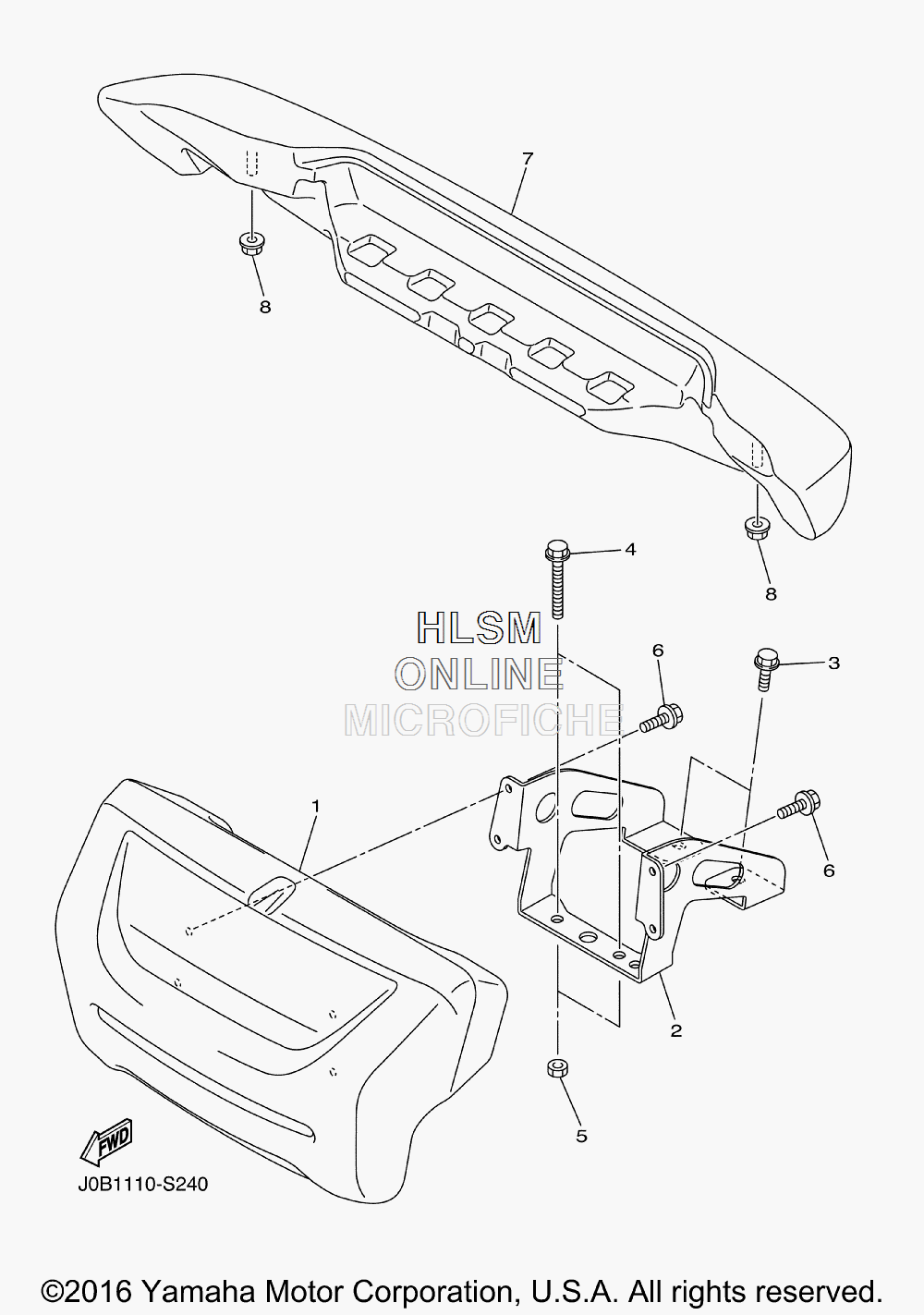

BUMPER для Yamaha DRIVE2 PTV (DR2E17PTV SERIAL: J0E-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0B-K7510-00-00 FRONT BUMPER COMP.FRONT BUMPER COMP.
-
2J0B-K8164-00-00 STAY, FRONT BUMPER (LEFT)STAY, FRONT BUMPER (LEFT)
-
395812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
495812-08050-00 BOLT, FLANGEBOLT, FLANGE
-
595302-08700-00 NUT, HEXAGONNUT, HEXAGON
-
695822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
7JW8-K7540-00-00 REAR BUMPER COMP.REAR BUMPER COMP.
-
895602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
