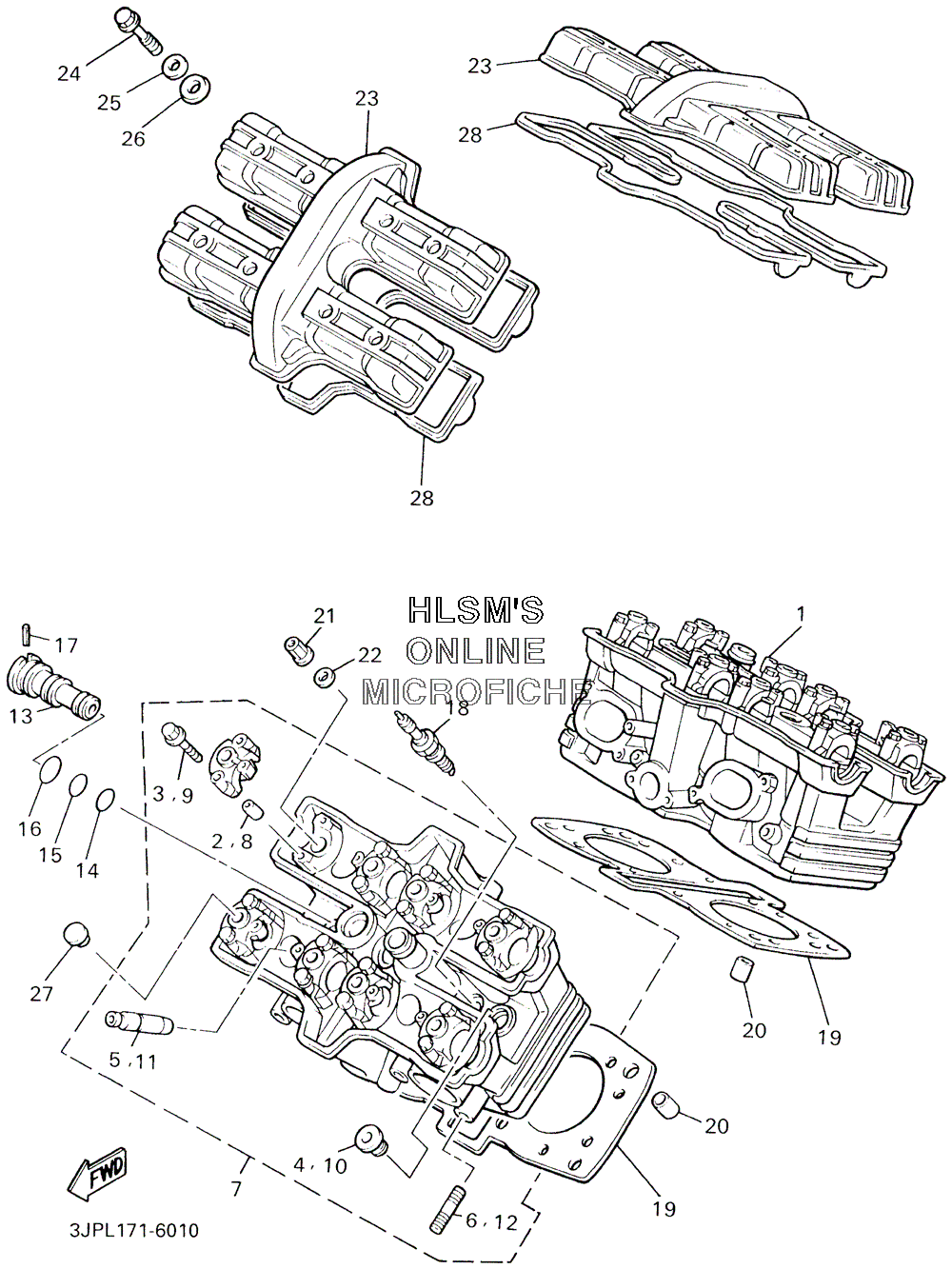

CYLINDER HEAD для Yamaha VMX 1200 V-MAX - 2000 года выпуска
-
№АртикулНазвание
-
11FK-11101-02-00 CYL HEAD ASSYCYL HEAD ASSY
-
291808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
390105-06153-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
490340-20090-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
530X-11133-10-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
695617-08620-00 ...BOLT, STUD...BOLT, STUD
-
71FK-W1112-02-00 CYL HEAD ASSY 2CYL HEAD ASSY 2
-
891808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
990105-06153-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
1090340-20090-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
1130X-11133-10-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
1295617-08635-00 ...BOLT, STUD...BOLT, STUD
-
1326H-12469-01-00 JOINT 1JOINT 1
-
1493210-16629-00 O-RINGO-RING
-
1593210-18322-00 O-RINGO-RING
-
1693210-21631-00 O-RINGO-RING
-
1790254-03008-00 PIN, SPRINGPIN, SPRING
-
1894701-00241-00 PLUG, SPARK (NGK DPR8EA-9) (OPT)PLUG, SPARK (NGK DPR8EA-9) (OPT)
-
1894701-00242-00 PLUG, SPARK (ND X24EPR-U9) (OPT)PLUG, SPARK (ND X24EPR-U9) (OPT)
-
1926H-11181-00-00 GASKET, CYL HEAD 1GASKET, CYL HEAD 1
-
2099530-14016-00 PIN, DOWELPIN, DOWEL
-
2190179-10414-00 NUTNUT
-
2290201-102G9-00 WASHER, PLATEWASHER, PLATE
-
231FK-11191-00-00 COVER, CYL HEAD 1COVER, CYL HEAD 1
-
2490119-06218-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2590209-11262-00 WASHERWASHER
-
262GH-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
2790338-10150-00 PLUGPLUG
-
2826H-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
