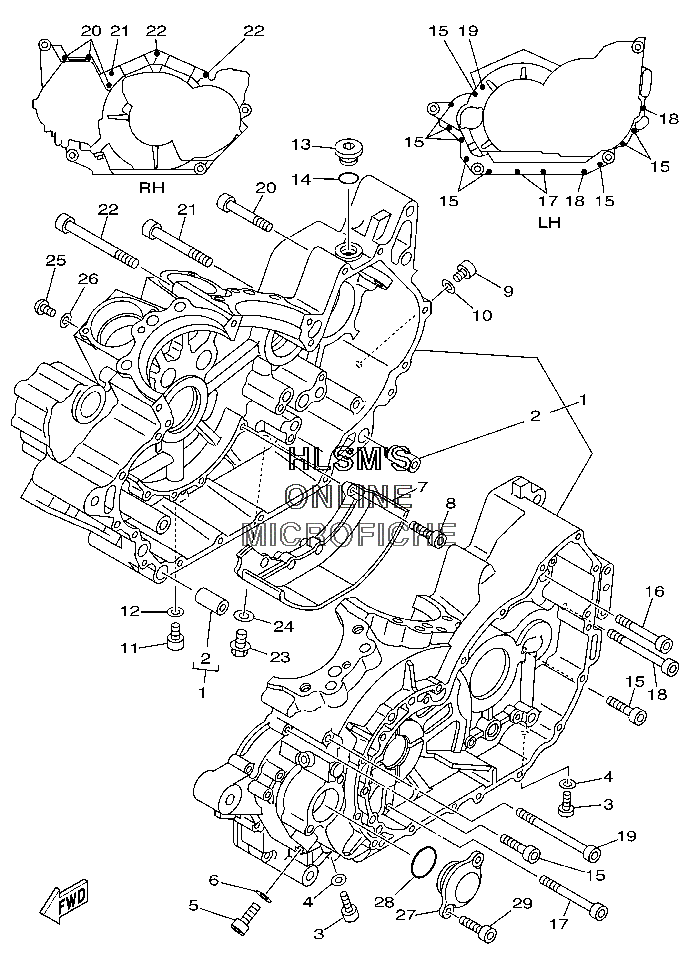

CRANKCASE для Yamaha XV 1600 ROAD STAR - 2000 года выпуска
-
№АртикулНазвание
-
14WM-15100-00-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-14016-00 ...PIN, DOWEL...PIN, DOWEL
-
390110-05003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490430-05126-00 GASKETGASKET
-
590110-08004-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690430-08119-00 GASKETGASKET
-
74WM-15123-00-00 PLATE, BUFFLE 1PLATE, BUFFLE 1
-
890110-06005-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990110-05003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090430-05126-00 GASKETGASKET
-
1190110-08004-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290430-08119-00 GASKETGASKET
-
134H7-15189-00-00 PLUGPLUG
-
1493210-22382-00 O-RINGO-RING
-
1591314-06040-00 BOLTBOLT
-
1691314-06060-00 BOLTBOLT
-
1791314-06075-00 BOLTBOLT
-
1891314-06085-00 BOLTBOLT
-
1991314-06105-00 BOLTBOLT
-
2091314-06060-00 BOLTBOLT
-
2191314-08080-00 BOLTBOLT
-
2291314-08100-00 BOLTBOLT
-
2395024-08012-00 BOLT, FLANGEBOLT, FLANGE
-
2490430-08119-00 GASKETGASKET
-
2592014-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2690430-05126-00 GASKETGASKET
-
274WM-15417-00-00 COVER, CAPCOVER, CAP
-
2893210-37532-00 O-RINGO-RING
-
2991314-06016-00 BOLTBOLT
