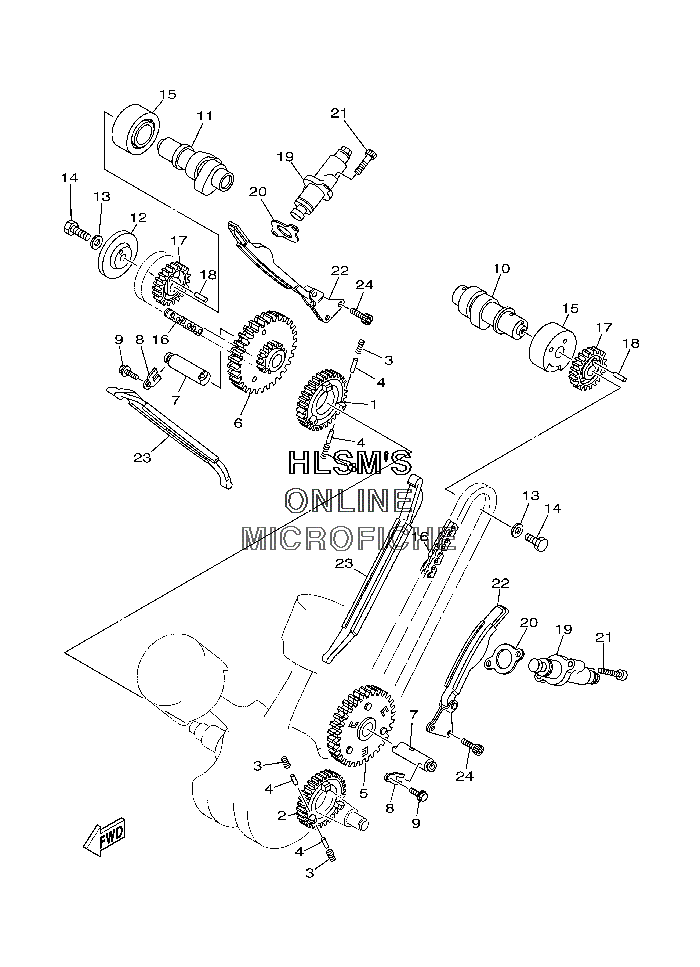

CAMSHAFT - CHAIN для Yamaha XVS 1100 V-STAR CUSTOM - 2000 года выпуска
-
№АртикулНазвание
-
14X7-11536-00-00 GEAR, DRIVE (35 TEETH)GEAR, DRIVE (35 TEETH)
-
24X7-11534-00-00 GEAR, BREAKER DRIVE (35 TEETH)GEAR, BREAKER DRIVE (35 TEETH)
-
390501-21133-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
493605-10090-00 PIN, DOWELPIN, DOWEL
-
55EL-11540-01-00 CAM CHAIN SPROCKET ASSY 1CAM CHAIN SPROCKET ASSY 1
-
65EL-11550-01-00 CAM CHAIN SPROCKET ASSY 2CAM CHAIN SPROCKET ASSY 2
-
75EL-12247-00-00 SHAFT, TENSIONERSHAFT, TENSIONER
-
890209-06205-00 WASHERWASHER
-
990105-06154-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
105EL-12171-00-00 CAMSHAFT 1CAMSHAFT 1
-
115EL-12181-00-00 CAMSHAFT 2CAMSHAFT 2
-
1242X-11145-00-00 PLATE, BREATHER 2PLATE, BREATHER 2
-
1390201-10591-00 WASHER, PLATEWASHER, PLATE
-
1490101-10303-00 BOLTBOLT
-
1590380-25125-00 BUSH, SOLIDBUSH, SOLID
-
1694591-49098-00 CHAINCHAIN
-
175EL-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
1893604-12037-00 PIN, DOWELPIN, DOWEL
-
195EL-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
204FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
2191314-06025-00 BOLTBOLT
-
225EL-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
235EL-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
2491314-06016-00 BOLTBOLT
