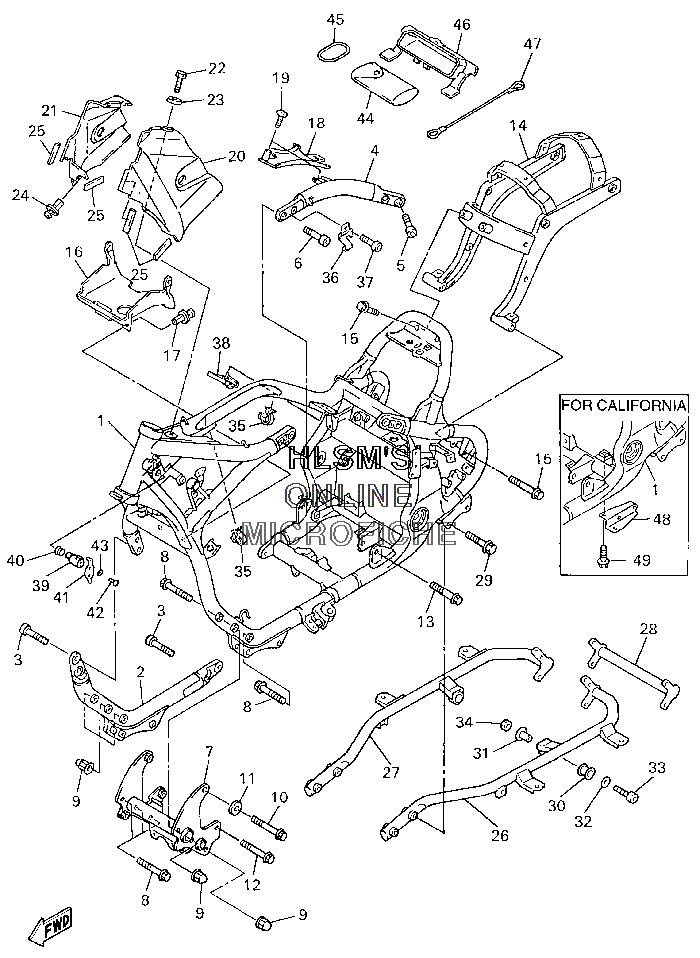

FRAME для Yamaha XVZ 1300 AT ROYAL STAR TOUR CLASSIC - 2000 года выпуска
-
№АртикулНазвание
-
14YE-21110-00-33 FRAME COMP. (033) (YAMAHA BLACK) (EXCEPT CALIF)FRAME COMP. (033) (YAMAHA BLACK) (EXCEPT CALIF)
-
14YE-21110-10-33 FRAME COMP. (033) (YAMAHA BLACK) (CALIF ONLY)FRAME COMP. (033) (YAMAHA BLACK) (CALIF ONLY)
-
24XY-21150-00-33 DOWN TUBE COMP. 2 (033) (YAMAHA BLACK)DOWN TUBE COMP. 2 (033) (YAMAHA BLACK)
-
390110-10161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
44NK-21120-00-33 FRAME, REAR (033) (YAMAHA BLACK)FRAME, REAR (033) (YAMAHA BLACK)
-
590110-10161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690110-10191-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
74NK-2141V-00-00 CROSS BAR COMPLETECROSS BAR COMPLETE
-
895827-10070-00 BOLT, FLANGEBOLT, FLANGE
-
990176-10075-00 NUT, CROWNNUT, CROWN
-
1090105-10788-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1190209-12341-00 WASHERWASHER
-
1290105-10788-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1390105-12252-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
144XY-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
1595827-10035-00 BOLT, FLANGEBOLT, FLANGE
-
164NK-2117F-00-00 COVERCOVER
-
1790269-05049-00 RIVETRIVET
-
184NK-2117M-01-00 COVER 2COVER 2
-
1997707-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
204NK-2171E-00-33 COVER, SIDE 5 (033) (YAMAHA BLACK)COVER, SIDE 5 (033) (YAMAHA BLACK)
-
214NK-2171X-00-33 COVER, SIDE 6 (033) (YAMAHA BLACK)COVER, SIDE 6 (033) (YAMAHA BLACK)
-
2297007-05016-00 BOLTBOLT
-
2390209-06174-00 WASHERWASHER
-
2490269-07076-00 RIVETRIVET
-
251LJ-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
264YE-21445-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
274YE-21446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
284YE-2144F-01-00 STAY, MUFFLER 3STAY, MUFFLER 3
-
2990105-08310-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3036Y-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
3190387-104L8-00 COLLARCOLLAR
-
3290201-105A2-00 WASHER, PLATEWASHER, PLATE
-
3391317-10045-00 BOLTBOLT
-
3495317-10600-00 NUTNUT
-
3590464-20191-00 CLAMPCLAMP
-
364NK-82594-00-00 CLAMPCLAMP
-
3791317-06010-00 BOLTBOLT
-
384NK-2117G-00-00 PROTECTORPROTECTOR
-
394R3-23408-00-00 STEERING LOCK ASSYSTEERING LOCK ASSY
-
4090502-09024-00 SPRING, CONICALSPRING, CONICAL
-
41584-23484-01-00 CAP, HANDLE LOCKCAP, HANDLE LOCK
-
4290269-04003-00 RIVETRIVET
-
4390208-04029-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
444NK-28100-00-00 TOOL KITTOOL KIT
-
4593210-62446-00 O-RINGO-RING
-
464NK-28173-00-00 BOX, TOOLBOX, TOOL
-
474YE-21398-00-00 HANGER, HELMETHANGER, HELMET
-
484NK-2134X-00-00 BRACKET, CANISTER (CALIF ONLY)BRACKET, CANISTER (CALIF ONLY)
-
4995807-06012-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
