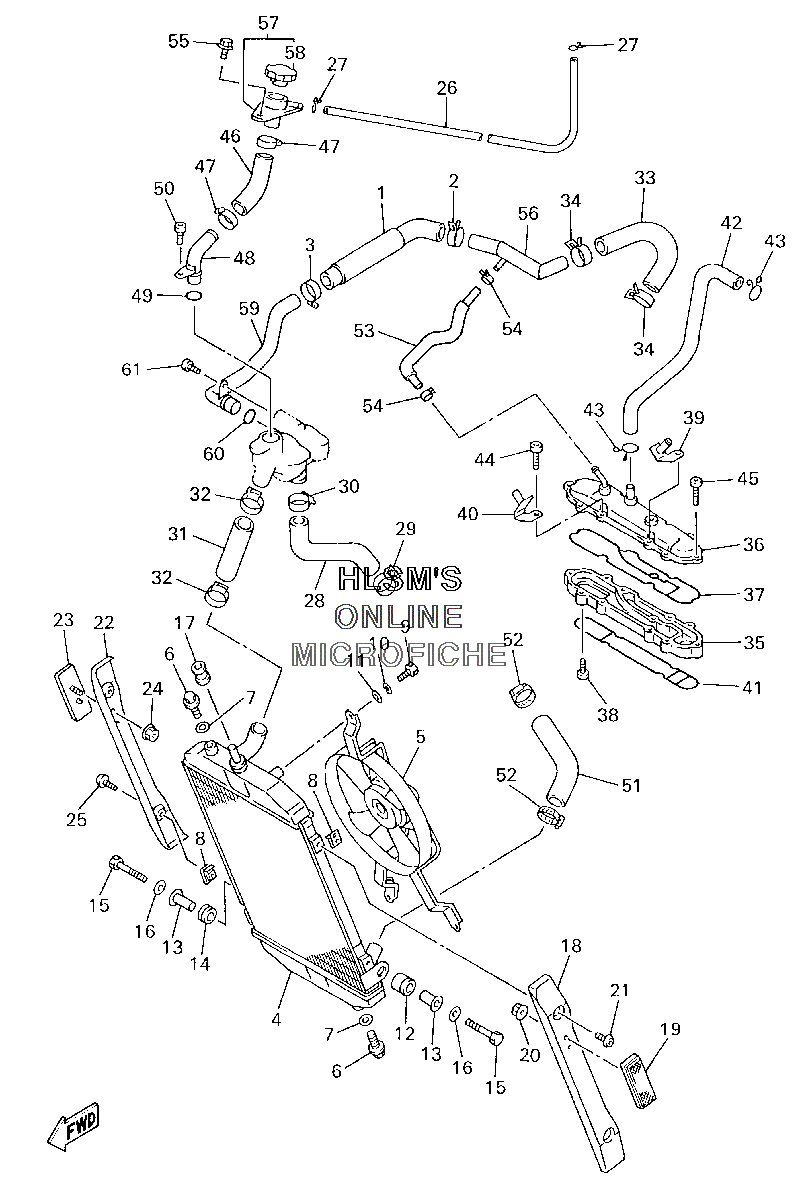

RADIATOR HOSE для Yamaha XVZ 1300 LT ROYAL STAR TOUR DELUXE CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
14NK-12578-00-00 HOSE 3HOSE 3
-
290467-23109-00 CLIPCLIP
-
390450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
44NK-12461-02-00 RADIATOR ASSY.RADIATOR ASSY.
-
54NK-12405-01-00 BLOWER ASSY.BLOWER ASSY.
-
61AA-12561-00-00 PLUG, DRAIN COCKPLUG, DRAIN COCK
-
71AA-12435-00-00 GASKETGASKET
-
84NK-12671-00-00 NUT 1NUT 1
-
997007-06012-00 BOLTBOLT
-
1092907-06100-00 WASHER, SPRINGWASHER, SPRING
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
124NK-12465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
1390387-0609L-00 COLLARCOLLAR
-
1490480-19283-00 GROMMETGROMMET
-
1597007-06040-00 BOLTBOLT
-
1692907-06600-00 WASHER, PLATEWASHER, PLATE
-
1790480-16284-00 GROMMETGROMMET
-
184NK-1240J-00-00 RADIATOR COVER ASSY. 1RADIATOR COVER ASSY. 1
-
1911H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
2095707-05500-00 NUT, FLANGENUT, FLANGE
-
2192017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
