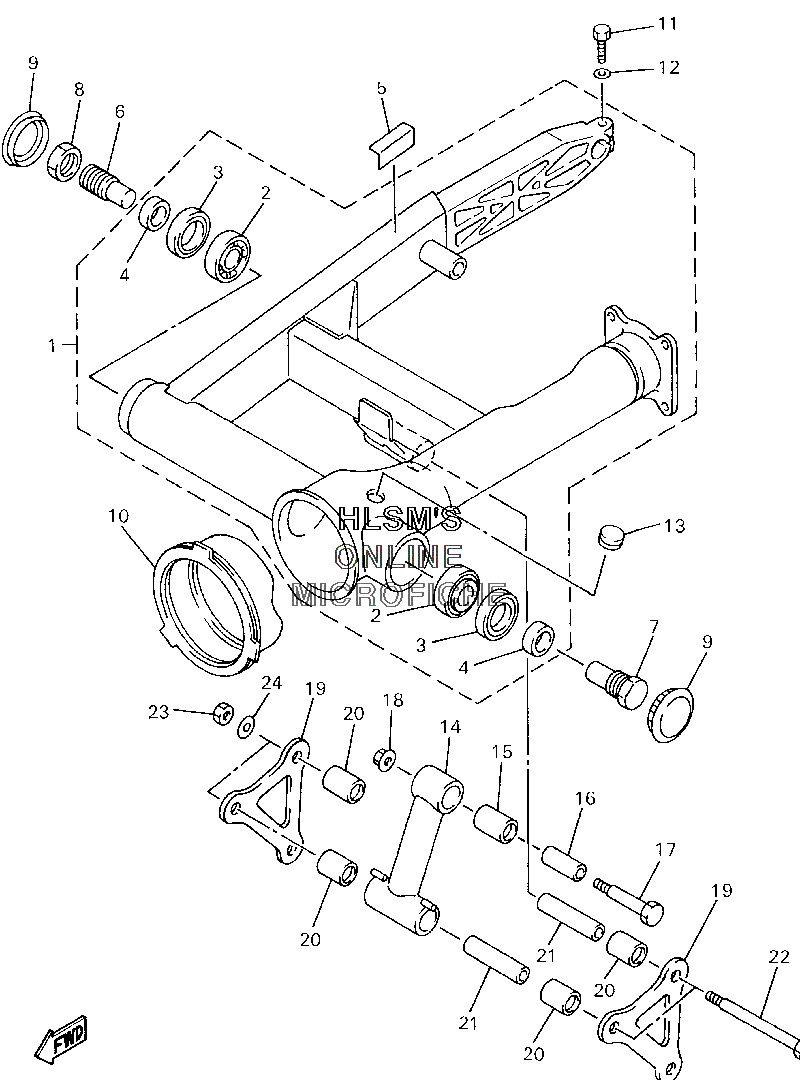

ARM - REAR для Yamaha XVZ 1300 LT ROYAL STAR TOUR DELUXE - 2000 года выпуска
-
№АртикулНазвание
-
14YE-W2211-00-35 REAR ARM COMP.REAR ARM COMP.
-
293332-00050-00 ...BEARING...BEARING
-
93332-00051-00 ...BEARING...BEARING
-
393106-28023-00 ...OIL SEAL...OIL SEAL
-
490387-204H5-00 ...COLLAR...COLLAR
-
52AL-84553-00-00 DAMPERDAMPER
-
64NK-2214H-00-00 SHAFT, PIVOT 2SHAFT, PIVOT 2
-
74NK-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
826H-22143-00-00 NUTNUT
-
92H7-2219X-00-00 COVERCOVER
-
1026H-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
1197024-08025-00 BOLTBOLT
-
1292904-08600-00 WASHERWASHER
-
1390338-20113-00 PLUGPLUG
-
144NK-2217A-00-00 ARM, RELAYARM, RELAY
-
1593317-42060-00 BEARINGBEARING
-
1690387-122J6-00 COLLARCOLLAR
-
1790109-104E4-00 BOLTBOLT
-
1895607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
194NK-2217M-00-00 ARM 1ARM 1
-
2093317-41761-00 BEARINGBEARING
-
2190387-126Y1-00 COLLARCOLLAR
-
2290101-12749-00 BOLTBOLT
-
2390185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2490201-126A7-00 WASHER, PLATEWASHER, PLATE
