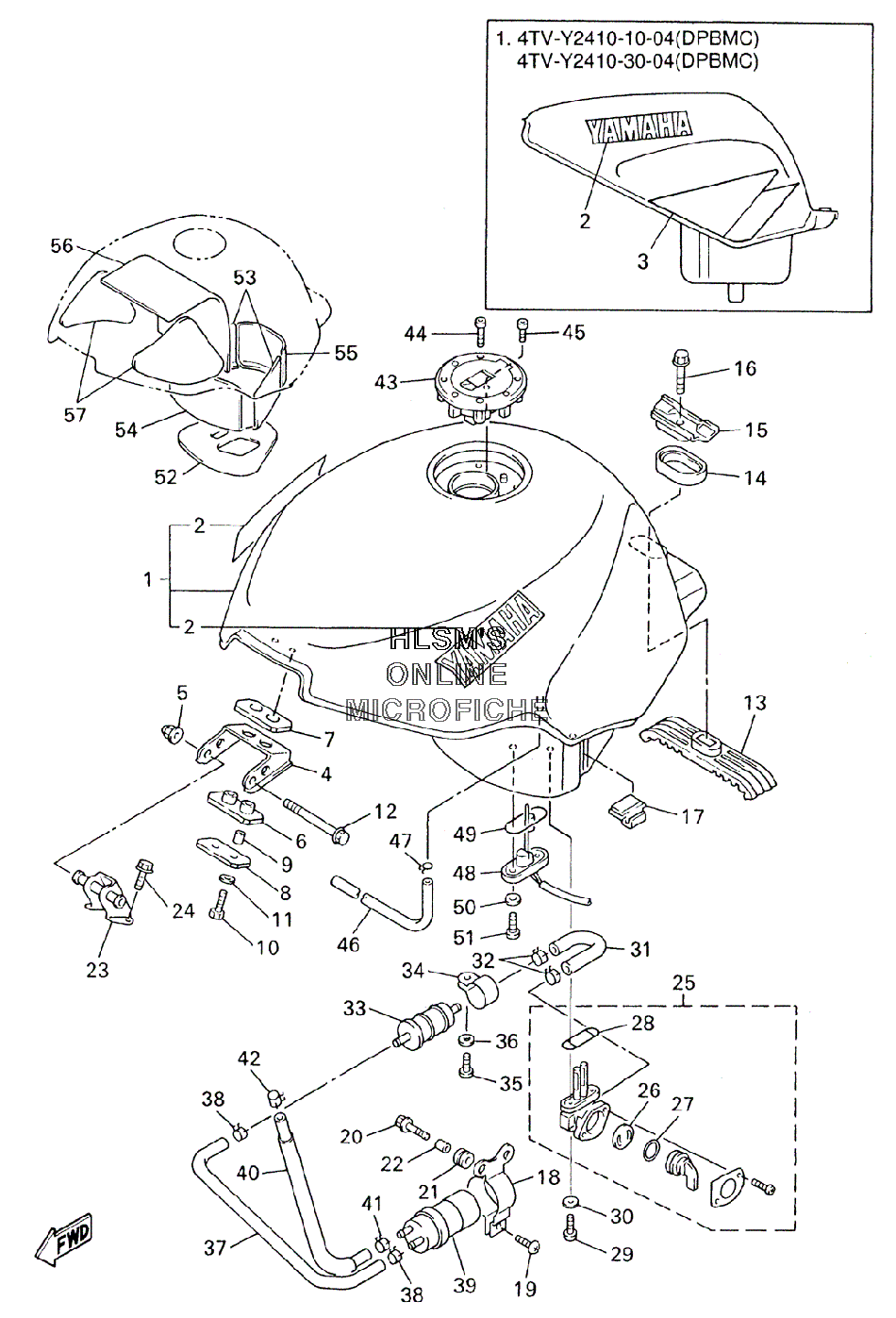

FUEL TANK для Yamaha YZF 600 CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
14TV-Y2410-10-04 FUEL TANK COMP. (564) (DARK PURPLISH BLUE METALLIC C)FUEL TANK COMP. (564) (DARK PURPLISH BLUE METALLIC C)
-
14TV-Y2410-30-04 FUEL TANK COMP. (564) (DARK PURPLISH BLUE METALLIC C)FUEL TANK COMP. (564) (DARK PURPLISH BLUE METALLIC C)
-
14TV-24110-10-07 FUEL TANK COMP. (04B) (BLACK 2)FUEL TANK COMP. (04B) (BLACK 2)
-
14TV-24110-30-08 FUEL TANK COMP. (04B) (BLACK 2)FUEL TANK COMP. (04B) (BLACK 2)
-
24TV-2153A-00-00 ...EMBLEM, YAMAHA (564) (DARK PURPLISH BLUE METALLIC C)...EMBLEM, YAMAHA (564) (DARK PURPLISH BLUE METALLIC C)
-
24TV-2153A-30-00 ...EMBLEM, YAMAHA (04B) (BLACK 2)...EMBLEM, YAMAHA (04B) (BLACK 2)
-
35AH-24240-30-00 ...GRAPHIC SET (564) (DARK PURPLISH BLUE METALLIC C)...GRAPHIC SET (564) (DARK PURPLISH BLUE METALLIC C)
-
44FM-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
590176-06055-00 NUT, CROWNNUT, CROWN
-
62GH-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
72GH-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
82GH-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
990387-06299-00 COLLARCOLLAR
-
1097007-06025-00 BOLTBOLT
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
1295817-06075-00 BOLT, FLANGEBOLT, FLANGE
-
1333M-24182-01-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
143Y6-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
154FM-24187-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1695807-08035-00 BOLT, FLANGEBOLT, FLANGE
-
174TV-24183-10-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
183CV-24491-10-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
1998907-05010-00 SCREW, BINDSCREW, BIND
-
2090119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2190480-13163-00 GROMMETGROMMET
-
2290387-060G7-00 COLLARCOLLAR
-
234TV-24115-00-00 STAY, FUEL TANK 1STAY, FUEL TANK 1
-
2495027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
254TV-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
263XV-24523-00-00 ...VALVE...VALVE
-
273XV-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
284X8-24512-00-00 ...O-RING...O-RING
-
2990149-06008-00 SCREWSCREW
-
3090202-05193-00 WASHER, PLATEWASHER, PLATE
-
314TV-24313-00-00 PIPE 3PIPE 3
-
3290467-14057-00 CLIPCLIP
-
334TV-24560-00-00 FILTER ASSYFILTER ASSY
-
341AE-24366-00-00 CLAMP, FUEL PIPE 1CLAMP, FUEL PIPE 1
-
3598507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3692907-06600-00 WASHER, PLATEWASHER, PLATE
-
374TV-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3890467-14057-00 CLIPCLIP
-
394TV-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
404TV-14294-00-00 HOSEHOSE
-
4190467-13123-00 CLIPCLIP
-
4290467-11032-00 CLIPCLIP
-
434FM-24602-10-00 CAP ASSYCAP ASSY
-
434HM-24602-00-00 CAP ASSYCAP ASSY
-
4490110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4591317-05010-00 BOLTBOLT
-
4690445-107H3-00 HOSEHOSE
-
4790467-09006-00 CLIPCLIP
-
483GM-85752-01-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
4942X-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
5090202-05193-00 WASHER, PLATEWASHER, PLATE
-
5190149-06008-00 SCREWSCREW
-
524TV-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
534TV-24145-10-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
544TV-24145-20-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
554TV-24145-30-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
564TV-24145-40-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
574TV-24145-50-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
