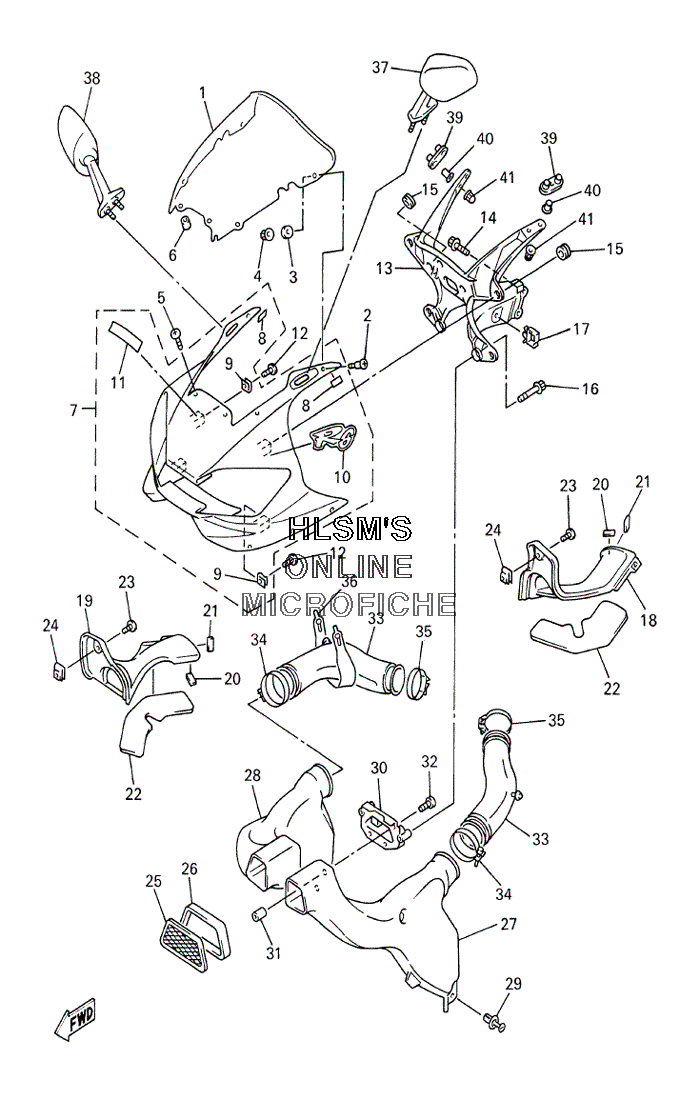

COWLING 1 для Yamaha YZF 600 R6 CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
15EB-28381-10-00 WINDSHIELDWINDSHIELD
-
290149-05273-00 SCREWSCREW
-
34FM-28215-00-00 WASHER, SPECIALWASHER, SPECIAL
-
495707-05500-00 NUT, FLANGENUT, FLANGE
-
590150-05023-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
690179-05523-00 NUTNUT
-
75EB-Y283G-40-P0 BODY, FRONT UPPER 1 (564) (DEEP PURPLISH BLUE METALLIC C)BODY, FRONT UPPER 1 (564) (DEEP PURPLISH BLUE METALLIC C)
-
75EB-Y283G-30-0X BODY, FRONT UPPER 1 (390) (BLUISH WHITE COCKTAIL 1)BODY, FRONT UPPER 1 (390) (BLUISH WHITE COCKTAIL 1)
-
83TU-2178A-00-00 ...LABEL...LABEL
-
990183-05074-00 ...NUT, SPRING...NUT, SPRING
-
105EB-28315-10-00 ...EMBLEM (564) (DEEP PURPLISH BLUE METALLIC C)...EMBLEM (564) (DEEP PURPLISH BLUE METALLIC C)
-
105EB-28315-30-00 ...EMBLEM (390) (BLUISH WHITE COCKTAIL 1)...EMBLEM (390) (BLUISH WHITE COCKTAIL 1)
-
1199241-00080-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
1290154-05005-00 SCREW, BINDINGSCREW, BINDING
-
135EB-28356-01-00 STAY 1STAY 1
-
1495824-08025-00 BOLT, FLANGEBOLT, FLANGE
-
154XV-83513-00-00 DAMPERDAMPER
-
1695024-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1790464-16025-00 CLAMPCLAMP
-
185EB-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
195EB-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
2051Y-21639-00-00 DAMPER 2DAMPER 2
-
2127V-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
225EB-2837J-00-00 DAMPER 5DAMPER 5
-
2390150-05039-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
2490183-05024-00 NUT, SPRINGNUT, SPRING
-
255EB-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
265EB-28371-00-00 DAMPERDAMPER
-
275EB-2838R-00-00 DUCT 2DUCT 2
-
285EB-2838T-00-00 DUCT 3DUCT 3
-
2990269-07076-00 RIVETRIVET
-
305EB-28342-01-00 JOINTJOINT
-
3190179-05523-00 NUTNUT
-
3298507-05014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
335EB-1446F-00-00 JOINT, SURGE TANK 1JOINT, SURGE TANK 1
-
344TV-13575-00-00 BANDBAND
-
3590460-59211-00 CLAMP, HOSECLAMP, HOSE
-
365EB-2834V-00-00 PROTECTOR 1PROTECTOR 1
-
374YR-26280-01-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
384YR-26290-01-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
395EB-26298-01-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
4090387-0602X-00 COLLARCOLLAR
-
4190176-06055-00 NUT, CROWNNUT, CROWN
