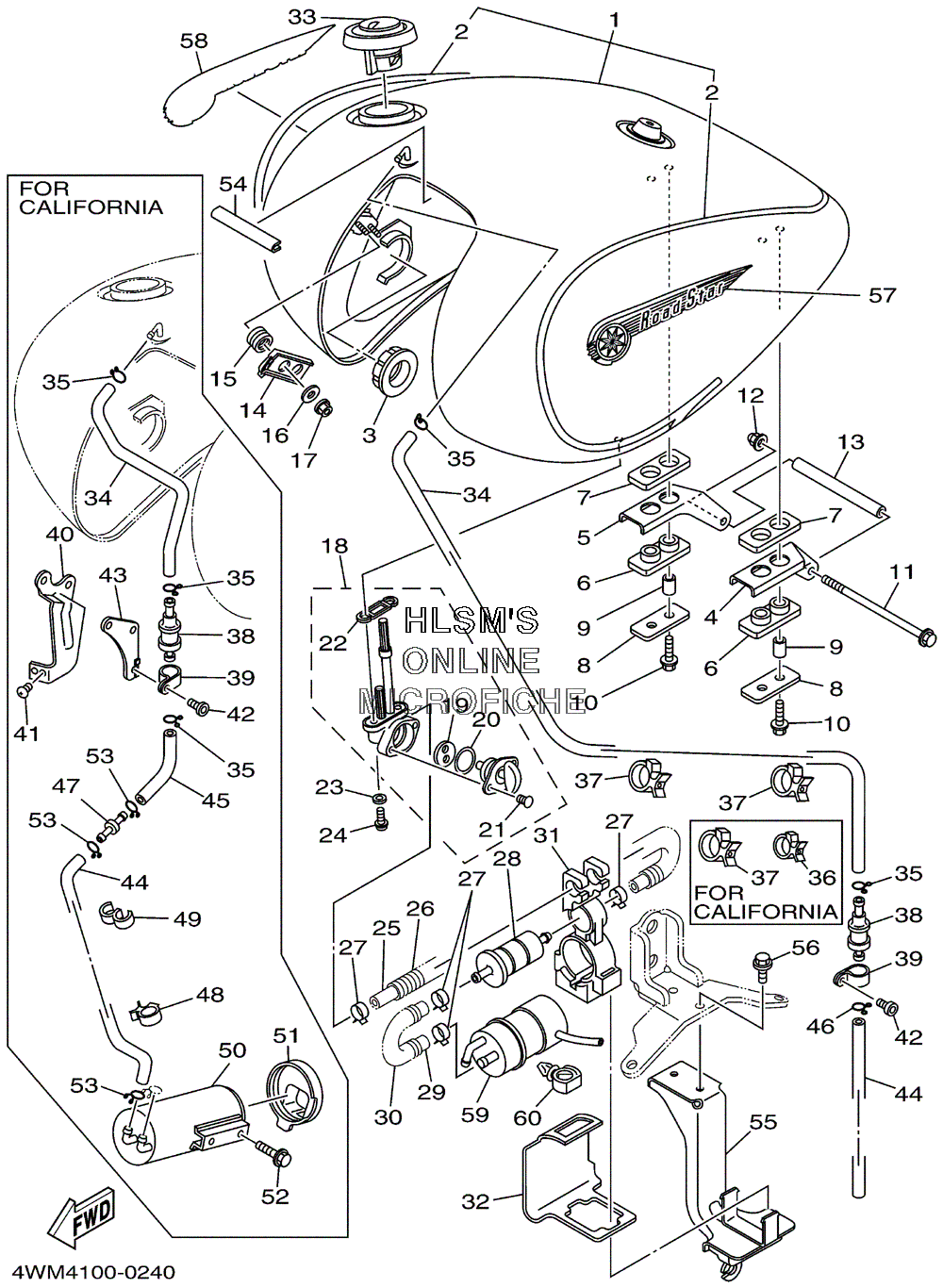

FUEL TANK для Yamaha XV 1600 AT ROAD STAR SILVERDO - 2001 года выпуска
-
№АртикулНазвание
-
14WM-Y2410-31-03 FUEL TANK COMP. (YAMAHA BLACK (YB))FUEL TANK COMP. (YAMAHA BLACK (YB))
-
14WM-Y2410-31-02 FUEL TANK COMP. (MAROON (MYM) / BROWN (BDB))FUEL TANK COMP. (MAROON (MYM) / BROWN (BDB))
-
24WM-24240-60-00 ...GRAPHIC SET (FOR YAMAHA BLACK (YB))...GRAPHIC SET (FOR YAMAHA BLACK (YB))
-
25JA-24240-10-00 ...GRAPHIC SET (FOR MAROON (MYM))...GRAPHIC SET (FOR MAROON (MYM))
-
32YK-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
44WM-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
54WM-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
62GH-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
72GH-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
82GH-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
990387-06553-00 COLLARCOLLAR
-
1095807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1195817-06125-00 BOLT, FLANGEBOLT, FLANGE
-
1290176-06055-00 NUT, CROWNNUT, CROWN
-
1390387-0615R-00 COLLARCOLLAR
-
144WM-24291-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
154WM-24339-00-00 GROMMETGROMMET
-
1690387-050T5-00 COLLARCOLLAR
-
1795707-05500-00 NUT, FLANGENUT, FLANGE
-
184WM-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
193AJ-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
203AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
2198580-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
224X8-24512-00-00 ...O-RING...O-RING
-
2390202-05193-00 WASHER, PLATEWASHER, PLATE
-
2490149-06011-00 SCREWSCREW
-
254WM-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
264WM-24393-00-00 SPRINGSPRING
-
2790467-13083-00 CLIPCLIP
-
281FK-24560-00-00 FILTER ASSYFILTER ASSY
-
294WM-24312-00-00 PIPE 2PIPE 2
-
304WM-24394-00-00 SPRINGSPRING
-
314WM-24398-00-00 BAND 1BAND 1
-
324WM-24217-00-00 COVERCOVER
-
334NK-24602-10-00 CAP ASSYCAP ASSY
-
344WM-24321-00-00 PIPE 10 (EXCEPT CALF)PIPE 10 (EXCEPT CALF)
-
344WM-24321-10-00 PIPE 10 (CALF ONLY)PIPE 10 (CALF ONLY)
-
3590467-10008-00 CLIPCLIP
-
3690464-15192-00 CLAMP (CALF ONLY)CLAMP (CALF ONLY)
-
3790464-25217-00 CLAMPCLAMP
-
384WM-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
3990461-15100-00 CLAMPCLAMP
-
404WM-2148X-00-00 BRACKET 4 (CALF ONLY)BRACKET 4 (CALF ONLY)
-
4198507-05008-00 SCREW, PAN HEAD (CALF ONLY)SCREW, PAN HEAD (CALF ONLY)
-
4298907-05012-00 SCREW, SOCKETSCREW, SOCKET
-
434WM-24662-00-00 STAY (CALF ONLY)STAY (CALF ONLY)
-
4490445-112K5-00 HOSE (L355) (EXCEPT CALF)HOSE (L355) (EXCEPT CALF)
-
444WM-24322-00-00 PIPE 11 (CALF ONLY)PIPE 11 (CALF ONLY)
-
454WM-24323-00-00 PIPE 12 (CALF ONLY)PIPE 12 (CALF ONLY)
-
4690467-10008-00 CLIP (EXCEPT CALF)CLIP (EXCEPT CALF)
-
474XY-14568-00-00 JOINT (CALF ONLY)JOINT (CALF ONLY)
-
4890464-15192-00 CLAMP (CALF ONLY)CLAMP (CALF ONLY)
-
4990464-10075-00 CLAMP (CALF ONLY)CLAMP (CALF ONLY)
-
504WM-24170-00-00 CANISTER ASSY (CALF ONLY)CANISTER ASSY (CALF ONLY)
-
514WM-2419E-00-00 COVER, CANISTER (CALF ONLY)COVER, CANISTER (CALF ONLY)
-
5290105-06009-00 BOLT, FLANGE (CALF ONLY)BOLT, FLANGE (CALF ONLY)
-
5390467-10008-00 CLIP (CALF ONLY)CLIP (CALF ONLY)
-
544GY-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
554WM-24491-01-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
5695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
574WM-2416B-00-00 EMBLEMEMBLEM
-
584WM-2417B-00-00 EMBLEMEMBLEM
-
594WM-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
6090464-13249-00 CLAMPCLAMP
