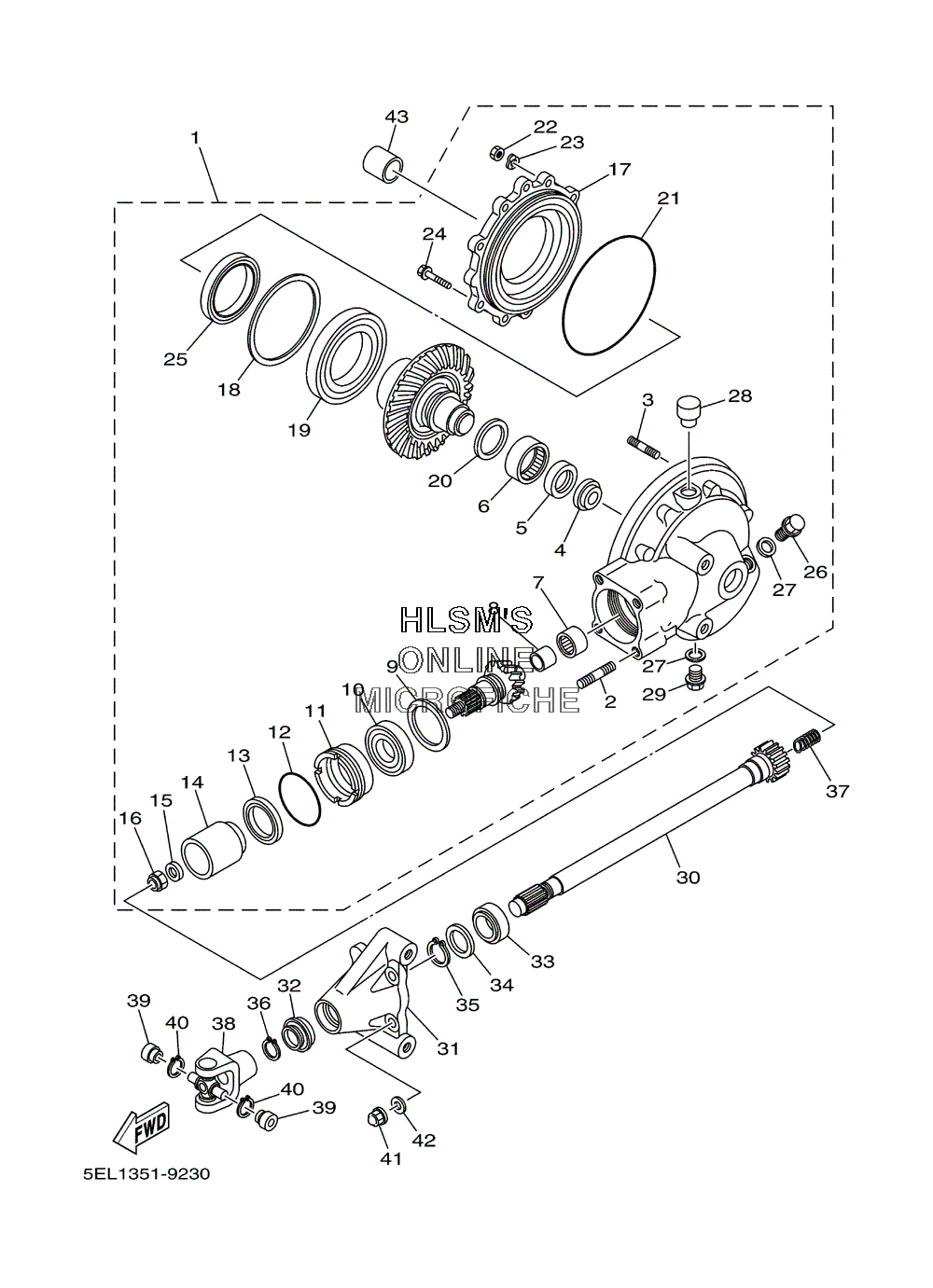

DRIVE SHAFT W/ GEAR CASE для Yamaha XVS 1100 A V-STAR CLASSIC - 2001 года выпуска

№

Артикул

Название
1

5EL-46101-00-00 REAR AXLE GEAR CASE ASSY

REAR AXLE GEAR CASE ASSY

147 100 ₽
2

90116-10361-00 ...BOLT, STUD

...BOLT, STUD

470 ₽
3

95617-08620-00 ...BOLT, STUD

...BOLT, STUD

890 ₽
4

5EL-46153-00-00 ...COLLAR, GUIDE

...COLLAR, GUIDE

1 880 ₽
5

93101-30084-00 ...OIL SEAL

...OIL SEAL

1 420 ₽
6

93311-43729-00 ...BEARING

...BEARING

6 920 ₽
7

2H7-46102-00-00 ...BEARING ASSY

...BEARING ASSY

3 460 ₽
8

2H7-46122-00-00 ...RACE, INNER

...RACE, INNER

1 880 ₽
9

1J7-17537-Y0-30 ...SHIM, THRUST (0.30T) (OPT)

...SHIM, THRUST (0.30T) (OPT)

370 ₽
9

1J7-17537-Y0-40 ...SHIM, THRUST (0.40T) (OPT)

...SHIM, THRUST (0.40T) (OPT)

370 ₽
9

1J7-17537-Y0-50 ...SHIM, THRUST (0.50T) (OPT)

...SHIM, THRUST (0.50T) (OPT)

370 ₽
10

93306-30533-00 ...BEARING (B6305RB1 SPECIAL)

...BEARING (B6305RB1 SPECIAL)

10 860 ₽
11

4H7-46125-00-00 ...RETAINER, BEARING

...RETAINER, BEARING

3 300 ₽
12

93210-60426-00 ...O-RING

...O-RING

890 ₽
13

93101-38098-00 ...OIL SEAL

...OIL SEAL

1 200 ₽
14

4H7-46123-01-00 ...COUPLING, GEAR

...COUPLING, GEAR

14 170 ₽
15

90201-14632-00 ...WASHER, PLATE

...WASHER, PLATE

650 ₽
16

90185-14070-00 ...NUT, SELF-LOCKING

...NUT, SELF-LOCKING

1 200 ₽
17

4H7-46152-00-00 ...HOUSING, BEARING

...HOUSING, BEARING

6 920 ₽
18

1J7-46117-Y0-25 ...SHIM, RING GEAR (0.25T) (OPT)

...SHIM, RING GEAR (0.25T) (OPT)

440 ₽
18

1J7-46117-Y0-30 ...SHIM, RING GEAR (0.30T) (OPT)

...SHIM, RING GEAR (0.30T) (OPT)

440 ₽
18

1J7-46117-Y0-40 ...SHIM, RING GEAR (0.40T) (OPT)

...SHIM, RING GEAR (0.40T) (OPT)

440 ₽
18

1J7-46117-Y0-50 ...SHIM, RING GEAR (0.50T) (OPT)

...SHIM, RING GEAR (0.50T) (OPT)

440 ₽
19

93316-01403-00 ...BEARING

...BEARING

7 550 ₽
20

22U-46118-00-12 ...SHIM, THRUST (1.2T) (OPT)

...SHIM, THRUST (1.2T) (OPT)

750 ₽
20

22U-46118-00-14 ...SHIM, THRUST (1.4T) (OPT)

...SHIM, THRUST (1.4T) (OPT)

750 ₽
20

22U-46118-00-16 ...SHIM, THRUST (1.6T) (OPT)

...SHIM, THRUST (1.6T) (OPT)

750 ₽
20

22U-46118-00-18 ...SHIM, THRUST (1.8T) (OPT)

...SHIM, THRUST (1.8T) (OPT)

750 ₽
20

22U-46118-00-20 ...SHIM, THRUST (2.0T)

...SHIM, THRUST (2.0T)

750 ₽
