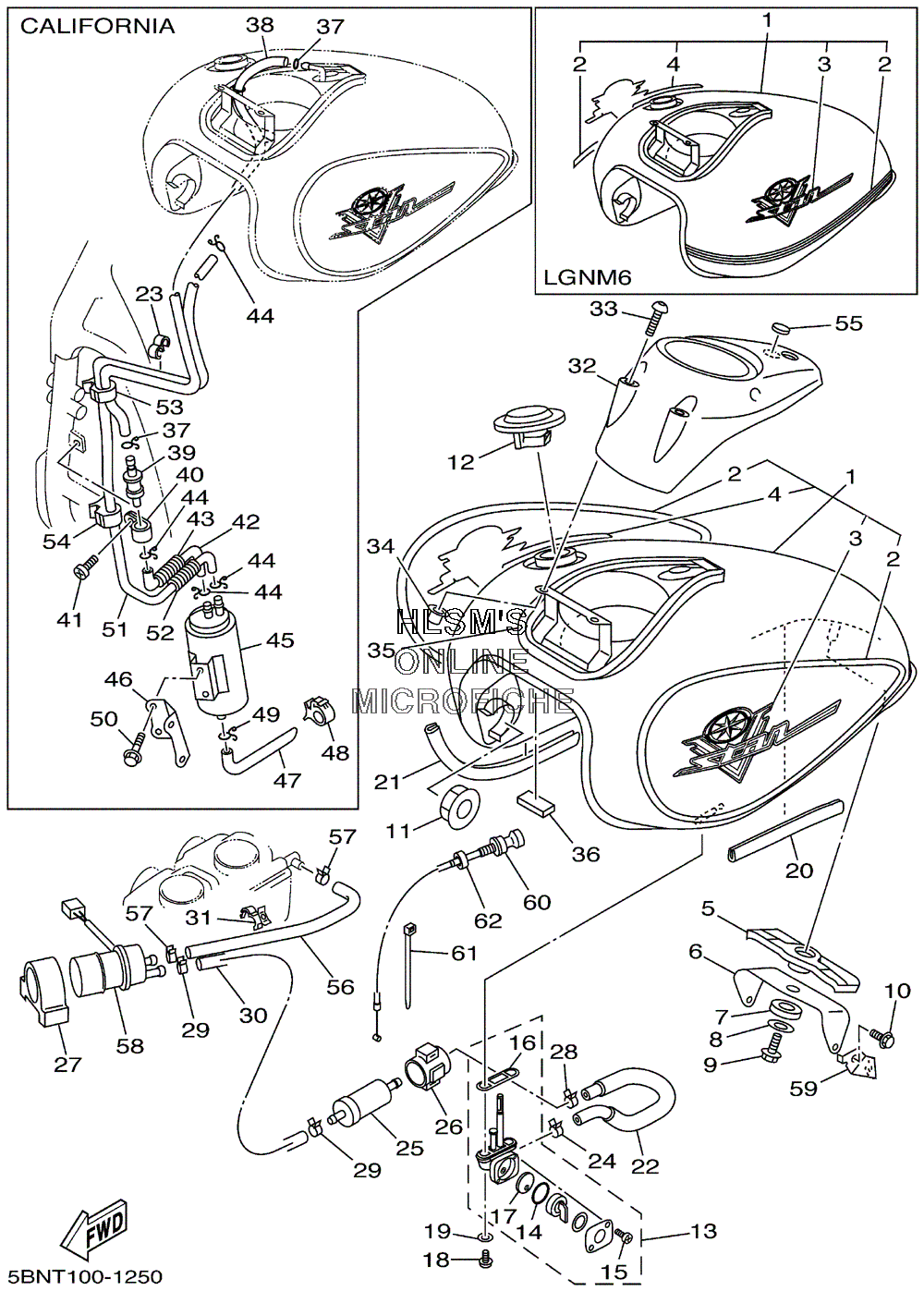

FUEL TANK для Yamaha XVS 650 A V-STAR CLASSIC - 2001 года выпуска

№

Артикул

Название
1

4TR-Y2410-12-03 FUEL TANK COMP. (YAMAHA BLACK (YB)) (CALF ONLY)

FUEL TANK COMP. (YAMAHA BLACK (YB)) (CALF ONLY)

0 ₽
1

4TR-Y2410-12-04 FUEL TANK COMP. (DARK GRAYISH PURPLE METALLIC (DNPM1)) (CALF ONLY)

FUEL TANK COMP. (DARK GRAYISH PURPLE METALLIC (DNPM1)) (CALF ONLY)

0 ₽
1

4TR-Y2410-12-05 FUEL TANK COMP. (LIGHT GREENISH GRAY METALLIC (LGNM6) / DARK GRAYISH GREEN MET (DNLGM1)) (CALF ONLY)

FUEL TANK COMP. (LIGHT GREENISH GRAY METALLIC (LGNM6) / DARK GRAYISH GREEN MET (DNLGM1)) (CALF ONLY)

0 ₽
1

4TR-Y2410-T1-W2 FUEL TANK COMP. (YAMAHA BLACK (YB)) (EXCEPT CALF)

FUEL TANK COMP. (YAMAHA BLACK (YB)) (EXCEPT CALF)

0 ₽
1

4TR-Y2410-T1-W3 FUEL TANK COMP. (DARK GRAYISH PURPLE METALLIC (DNPM1)) (EXCEPT CALF)

FUEL TANK COMP. (DARK GRAYISH PURPLE METALLIC (DNPM1)) (EXCEPT CALF)

0 ₽
1

4TR-Y2410-T1-W4 FUEL TANK COMP. (LIGHT GREENISH GRAY METALLIC (LGNM6) / DARK GRAYISH GREEN MET (DNLGM1)) (EXCEPT CALF)

FUEL TANK COMP. (LIGHT GREENISH GRAY METALLIC (LGNM6) / DARK GRAYISH GREEN MET (DNLGM1)) (EXCEPT CALF)

0 ₽
2

5BN-24240-E0-00 ...GRAPHIC SET (FOR YAMAHA BLACK (YB))

...GRAPHIC SET (FOR YAMAHA BLACK (YB))

0 ₽
2

5BN-24240-F0-00 ...GRAPHIC SET (FOR DARK GRAYISH PURPLE METALLIC (DNPM1))

...GRAPHIC SET (FOR DARK GRAYISH PURPLE METALLIC (DNPM1))

28 970 ₽
2

5BN-24240-G0-00 ...GRAPHIC SET (FOR LIGHT GREENISH GRAY METALLIC (LGNM6))

...GRAPHIC SET (FOR LIGHT GREENISH GRAY METALLIC (LGNM6))

0 ₽
3

5FB-24161-30-00 ...EMBLEM 1 (FOR YAMAHA BLACK (YB))

...EMBLEM 1 (FOR YAMAHA BLACK (YB))

0 ₽
3

5FB-24161-60-00 ...EMBLEM 1 (FOR DARK GRAYISH PURPLE METALLIC (DNPM1))

...EMBLEM 1 (FOR DARK GRAYISH PURPLE METALLIC (DNPM1))

9 920 ₽
3

5FB-24161-70-00 ...EMBLEM 1 (FOR LIGHT GREENISH GRAY METALLIC (LGNM6))

...EMBLEM 1 (FOR LIGHT GREENISH GRAY METALLIC (LGNM6))

0 ₽
4

5FB-24162-30-00 ...EMBLEM 2 (FOR YAMAHA BLACK (YB))

...EMBLEM 2 (FOR YAMAHA BLACK (YB))

0 ₽
4

5FB-24162-60-00 ...EMBLEM 2 (FOR DARK GRAYISH PURPLE METALLIC (DNPM1))

...EMBLEM 2 (FOR DARK GRAYISH PURPLE METALLIC (DNPM1))

9 920 ₽
4

5FB-24162-70-00 ...EMBLEM 2 (FOR LIGHT GREENISH GRAY METALLIC (LGNM6))

...EMBLEM 2 (FOR LIGHT GREENISH GRAY METALLIC (LGNM6))

0 ₽
5

4TR-24182-00-00 DAMPER, LOCATING 2

DAMPER, LOCATING 2

1 360 ₽
6

4TR-2413Y-00-00 BRACKET, TANK FITTING

BRACKET, TANK FITTING

1 730 ₽
7

4TR-24183-00-00 DAMPER, LOCATING 3

DAMPER, LOCATING 3

340 ₽
8

90201-060S9-00 WASHER, PLATE

WASHER, PLATE

350 ₽
9

92017-06012-00 BOLT, BUTTON HEAD

BOLT, BUTTON HEAD

220 ₽
10

95817-08016-00 BOLT, FLANGE

BOLT, FLANGE

340 ₽
11

4H7-24181-00-00 DAMPER, LOCATING 1

DAMPER, LOCATING 1

820 ₽
12

4NK-24602-10-00 CAP ASSY (CALF ONLY)

CAP ASSY (CALF ONLY)

14 170 ₽
12

5BN-24602-00-00 CAP ASSY (EXCEPT CALF)

CAP ASSY (EXCEPT CALF)

16 220 ₽
13

21V-24500-10-00 FUEL COCK ASSY 1

FUEL COCK ASSY 1

3 300 ₽
14

3AJ-24534-00-00 ...SEAL, COCK

...SEAL, COCK

250 ₽
15

97801-03008-00 ...SCREW, PAN HEAD

...SCREW, PAN HEAD

150 ₽
16

4X8-24512-00-00 ...O-RING

...O-RING

260 ₽
17

3AJ-24523-00-00 ...VALVE PACKING

...VALVE PACKING

1 480 ₽
18

90149-06011-00 SCREW

SCREW

180 ₽
19

90202-05193-00 WASHER, PLATE

WASHER, PLATE

150 ₽
20

1FK-2171L-00-00 MOLE, SIDE COVER 1

MOLE, SIDE COVER 1

1 190 ₽
21

4BP-24188-00-00 MOLD, FUEL TANK

MOLD, FUEL TANK

840 ₽
22

4TR-24313-00-00 PIPE 3

PIPE 3

2 200 ₽
23

90464-10075-00 CLAMP (CALF ONLY)

CLAMP (CALF ONLY)

310 ₽
24

90467-10038-00 CLIP

CLIP

310 ₽
25

1FK-24560-10-00 FILTER ASSY

FILTER ASSY

2 040 ₽
26

1FK-24566-00-00 BRACKET, FILTER

BRACKET, FILTER

1 550 ₽
27

4EB-24398-00-00 BAND 1

BAND 1

1 880 ₽
28

90467-11032-00 CLIP

CLIP

340 ₽
29

90467-12053-00 CLIP

CLIP

340 ₽
30

4TR-24311-00-00 PIPE, FUEL 1

PIPE, FUEL 1

850 ₽
31

90464-15192-00 CLAMP

CLAMP

280 ₽
32

4TR-2171A-00-00 COVER, TOP

COVER, TOP

7 550 ₽
33

90149-05299-00 SCREW

SCREW

260 ₽
34

90179-05523-00 NUT

NUT

410 ₽
35

4TR-2414G-00-00 SEAL

SEAL

500 ₽
36

3XV-21717-00-00 DAMPER

DAMPER

190 ₽
37

90467-10041-00 CLIP (CALF ONLY)

CLIP (CALF ONLY)

160 ₽
38

5BN-24312-01-00 PIPE 2 (CALF ONLY)

PIPE 2 (CALF ONLY)

0 ₽
39

4WM-24180-00-00 ROLL OVER VALVE ASSY (CALF ONLY)

ROLL OVER VALVE ASSY (CALF ONLY)

2 990 ₽
40

90461-15139-00 CLAMP (CALF ONLY)

CLAMP (CALF ONLY)

320 ₽
41

98907-05010-00 SCREW, BIND (CALF ONLY)

SCREW, BIND (CALF ONLY)

280 ₽
42

5BN-24314-01-00 PIPE 4 (CALF ONLY)

PIPE 4 (CALF ONLY)

0 ₽
43

5BN-24327-00-00 PROTECTOR, PIPE (CALF ONLY)

PROTECTOR, PIPE (CALF ONLY)

0 ₽
44

90467-10041-00 CLIP (CALF ONLY)

CLIP (CALF ONLY)

160 ₽
45

2JU-24170-00-00 CANISTER ASSY (CALF ONLY)

CANISTER ASSY (CALF ONLY)

0 ₽
46

5BN-2419F-00-00 BRACKET, CANISTOR (CALF ONLY)

BRACKET, CANISTOR (CALF ONLY)

0 ₽
47

5BN-24315-00-00 PIPE 5 (CALF ONLY)

PIPE 5 (CALF ONLY)

0 ₽
48

90464-15192-00 CLAMP (CALF ONLY)

CLAMP (CALF ONLY)

280 ₽
49

90467-10041-00 CLIP (CALF ONLY)

CLIP (CALF ONLY)

160 ₽
50

95807-06010-00 BOLT, FLANGE (CALF ONLY)

BOLT, FLANGE (CALF ONLY)

160 ₽
51

5BN-24313-00-00 PIPE 3 (CALF ONLY)

PIPE 3 (CALF ONLY)

0 ₽
52

5BN-24327-00-00 PROTECTOR, PIPE (CALF ONLY)

PROTECTOR, PIPE (CALF ONLY)

0 ₽
53

90464-20191-00 CLAMP (CALF ONLY)

CLAMP (CALF ONLY)

370 ₽
54

90464-15192-00 CLAMP (CALF ONLY)

CLAMP (CALF ONLY)

280 ₽
55

4TR-2413B-00-00 EMBLEM

EMBLEM

1 880 ₽
56

4TR-14294-00-00 HOSE

HOSE

1 880 ₽
57

90467-12053-00 CLIP

CLIP

340 ₽
58

3LN-13907-00-00 FUEL PUMP COMP.

FUEL PUMP COMP.

37 320 ₽
59

4TR-2637G-00-00 HOLDER, WIRE

HOLDER, WIRE

690 ₽
60

4TR-26331-00-00 CABLE, STARTER 1

CABLE, STARTER 1

2 040 ₽
61

1UA-82591-00-00 BAND

BAND

310 ₽
62

1VJ-26333-00-00 NUT

NUT

350 ₽
