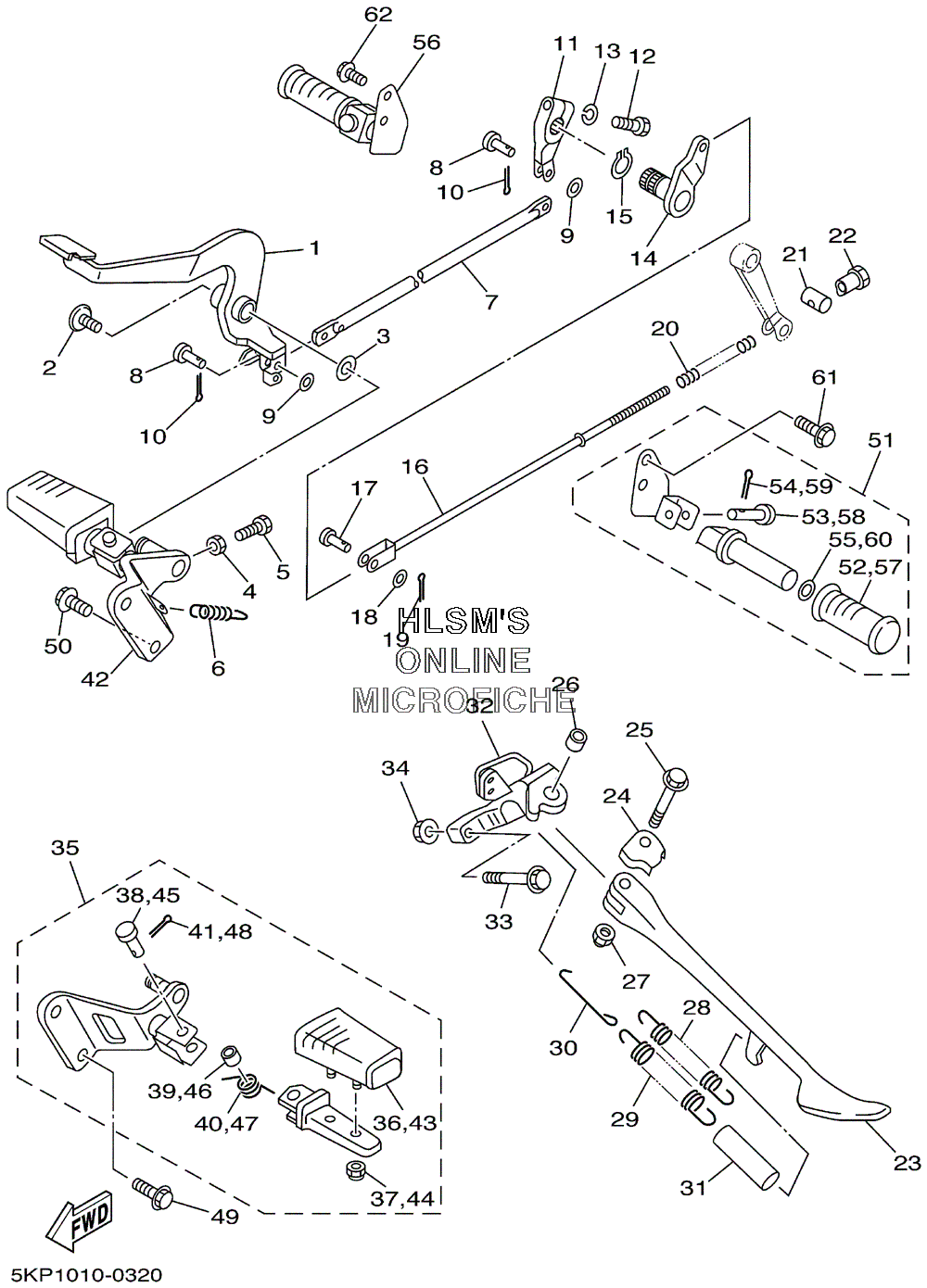

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha XVS 650 V-STAR CUSTOM - 2001 года выпуска
-
№АртикулНазвание
-
15KP-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
290110-06249-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
390206-14086-00 WASHER, WAVEWASHER, WAVE
-
495307-06700-00 NUTNUT
-
590101-06534-00 BOLTBOLT
-
690506-20193-00 SPRING, TENSIONSPRING, TENSION
-
75KP-27247-00-00 ROD 1ROD 1
-
890240-06108-00 PIN, CLEVISPIN, CLEVIS
-
990201-062P7-00 WASHER, PLATEWASHER, PLATE
-
1091401-20012-00 PIN, COTTERPIN, COTTER
-
114TR-27243-00-00 BOSS, BRAKE PEDALBOSS, BRAKE PEDAL
-
1290109-06468-00 BOLTBOLT
-
1392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
144TR-27212-00-00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
1599009-19400-00 CIRCLIPCIRCLIP
-
164TR-27231-00-00 ROD, BRAKEROD, BRAKE
-
1790240-06108-00 PIN, CLEVISPIN, CLEVIS
-
1890201-062P7-00 WASHER, PLATEWASHER, PLATE
-
1991401-20012-00 PIN, COTTERPIN, COTTER
-
2090501-10245-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2190249-12008-00 PINPIN
-
2290179-06411-00 NUTNUT
-
234KU-27311-13-00 STAND, SIDESTAND, SIDE
-
245KP-27322-00-00 WASHERWASHER
-
2590105-102A6-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2690387-1003G-00 COLLARCOLLAR
-
2795607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890506-23490-00 SPRING, TENSIONSPRING, TENSION
-
2990506-29507-00 SPRING, TENSIONSPRING, TENSION
-
305EL-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
3190445-16641-00 HOSE (L60)HOSE (L60)
-
325KP-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
3390105-10727-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
355KP-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
364VR-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
3795617-06100-00 ...NUT, U...NUT, U
-
3891701-08038-00 ...PIN, CLEVIS...PIN, CLEVIS
-
3990387-087K5-00 ...COLLAR...COLLAR
-
4090508-18696-00 ...SPRING, TORSION...SPRING, TORSION
-
4191401-25015-00 ...PIN, COTTER...PIN, COTTER
-
4290105-102A3-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
435KP-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
444VR-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
4595617-06100-00 ...NUT, U...NUT, U
-
4691701-08038-00 ...PIN, CLEVIS...PIN, CLEVIS
-
4790387-087K5-00 ...COLLAR...COLLAR
-
4890508-18696-00 ...SPRING, TORSION...SPRING, TORSION
-
4991401-25020-00 ...PIN, COTTER...PIN, COTTER
-
5090105-102A3-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
515BN-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
52120-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
5391701-06032-00 ...PIN, CLEVIS...PIN, CLEVIS
-
5491490-20015-00 ...PIN, COTTER...PIN, COTTER
-
5590201-20279-00 ...WASHER, PLATE...WASHER, PLATE
-
5690105-082A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
575BN-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
58120-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
5991701-06032-00 ...PIN, CLEVIS...PIN, CLEVIS
-
6091490-20015-00 ...PIN, COTTER...PIN, COTTER
-
6190201-20279-00 ...WASHER, PLATE...WASHER, PLATE
-
6290105-082A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
