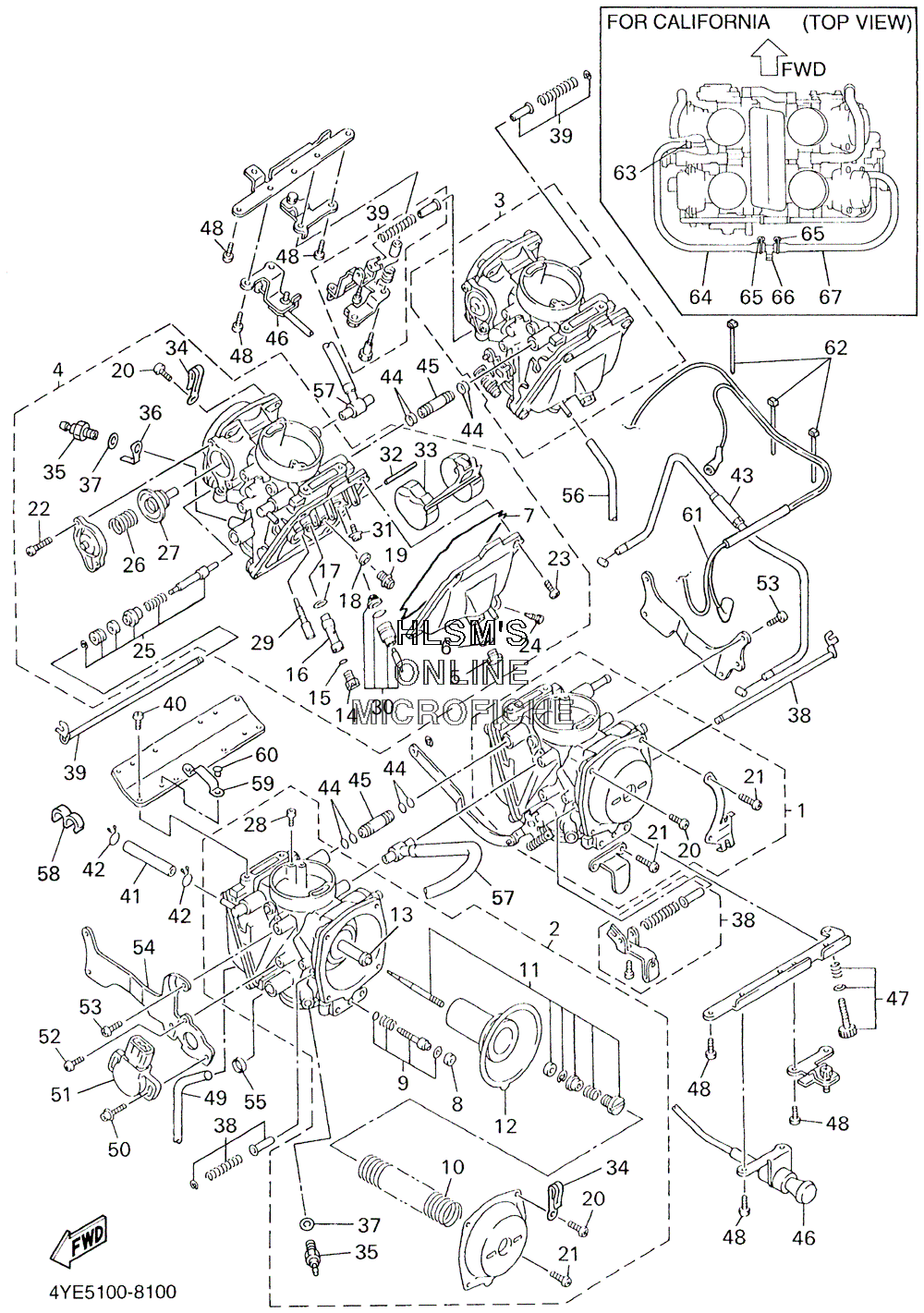

CARBURETOR для Yamaha XVZ 1300 LT ROAD STAR TOUR DELUXE CALIFORNIA - 2001 года выпуска
-
№АртикулНазвание
-
14NK-14901-20-00 CARBURETOR ASSY 1 (EXCEPT CALF)CARBURETOR ASSY 1 (EXCEPT CALF)
-
14NK-14901-30-00 CARBURETOR ASSY 1 (CALF ONLY)CARBURETOR ASSY 1 (CALF ONLY)
-
24NK-14902-20-00 CARBURETOR ASSY 2 (EXCEPT CALF)CARBURETOR ASSY 2 (EXCEPT CALF)
-
24NK-14902-30-00 CARBURETOR ASSY 2 (CALF ONLY)CARBURETOR ASSY 2 (CALF ONLY)
-
34NK-14903-20-00 CARBURETOR ASSY 3 (EXCEPT CALF)CARBURETOR ASSY 3 (EXCEPT CALF)
-
34NK-14903-30-00 CARBURETOR ASSY 3 (CALF ONLY)CARBURETOR ASSY 3 (CALF ONLY)
-
44NK-14904-20-00 CARBURETOR ASSY 4 (EXCEPT CALF)CARBURETOR ASSY 4 (EXCEPT CALF)
-
44NK-14904-30-00 CARBURETOR ASSY 4 (CALF ONLY)CARBURETOR ASSY 4 (CALF ONLY)
-
522U-14115-00-00 ...PLUG, SCREW...PLUG, SCREW
-
622U-14561-00-00 ...O-RING...O-RING
-
71HX-14147-00-00 ...O-RING...O-RING
-
83F9-14118-00-00 ...CAP...CAP
-
93KW-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
103KW-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
114NK-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
124NK-14940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
133DM-14141-30-00 ...MAIN NOZZLE(0-0)...MAIN NOZZLE(0-0)
-
143G2-14231-19-00 ...JET, POWER ( 95)...JET, POWER ( 95)
-
151AE-14227-00-00 ...O-RING...O-RING
-
161AE-14261-00-00 ...HOLDER...HOLDER
-
171AE-14237-00-00 ...GASKET...GASKET
-
18137-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
191HX-14565-00-00 ...SCREW...SCREW
-
2098580-04008-00 ...SCREW, PAN HEAD - CARB ASSY 1...SCREW, PAN HEAD - CARB ASSY 1
-
2098580-04008-00 ...SCREW, PAN HEAD - CARB ASSY 2...SCREW, PAN HEAD - CARB ASSY 2
-
2098580-04008-00 ...SCREW, PAN HEAD - CARB ASSY 3,4...SCREW, PAN HEAD - CARB ASSY 3,4
-
2197890-04010-00 ...SCREW, PAN HEAD - CARB ASSY 2...SCREW, PAN HEAD - CARB ASSY 2
-
2197890-04010-00 ...SCREW, PAN HEAD - CARB ASSY 1...SCREW, PAN HEAD - CARB ASSY 1
-
221UY-14565-00-00 ...SCREW...SCREW
-
2398507-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2412R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
254DN-1410A-01-00 ...STARTER SET...STARTER SET
-
264NK-14935-00-00 ...SPRING...SPRING
-
2722V-14940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
281HX-1423A-74-00 ...JET, MAIN (117.5)...JET, MAIN (117.5)
-
2922F-14142-17-00 ...JET, PILOT ( 17.5)...JET, PILOT ( 17.5)
-
303CF-14107-15-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
311FN-14565-00-00 ...SCREW...SCREW
-
32353-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
331HX-14985-00-00 ...FLOAT...FLOAT
-
3490461-06087-00 ...CLAMP...CLAMP
-
354EB-83790-00-00 ...HEATER ASSY...HEATER ASSY
-
364DH-82103-00-00 ...TERMINAL 1...TERMINAL 1
-
3790201-085R5-00 ...WASHER, PLATE...WASHER, PLATE
-
384NK-1490L-00-00 STARTER LEVER SET, 1STARTER LEVER SET, 1
-
394NK-1490L-10-00 STARTER LEVER SET, 1STARTER LEVER SET, 1
-
4098507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
414NK-14396-00-00 PIPEPIPE
-
424NK-14137-00-00 CLIPCLIP
-
434NK-14130-00-00 CABLECABLE
-
4436Y-14147-00-00 O-RINGO-RING
-
451WG-14251-00-00 NIPPLENIPPLE
-
464NK-14130-12-00 CABLECABLE
-
474NK-14103-00-00 THROTTLE SCREW SETTHROTTLE SCREW SET
-
4898507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
493JD-14197-00-00 PIPEPIPE
-
504KM-24453-00-00 SCREWSCREW
-
514NK-85885-00-00 THROTTLE POSITION SENSOR ASSYTHROTTLE POSITION SENSOR ASSY
-
5298707-05008-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
5398507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
544NK-14867-00-00 BRACKETBRACKET
-
554HM-14239-00-00 SEALSEAL
-
564FU-14197-00-00 PIPEPIPE
-
574NK-14349-20-00 PIPEPIPE
-
5890464-10075-00 CLAMPCLAMP
-
594NK-14243-00-00 PLATEPLATE
-
604NK-14386-00-00 PIN, FLOATPIN, FLOAT
-
614WY-81517-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
6235H-14139-00-00 CLIP, PIPECLIP, PIPE
-
6355X-14937-00-00 CLIP (CALF ONLY)CLIP (CALF ONLY)
-
644NK-14987-00-00 HOSE (CALF ONLY)HOSE (CALF ONLY)
-
6590467-10008-00 CLIP (CALF ONLY)CLIP (CALF ONLY)
-
663H3-24376-00-00 PIPE, JOINT 1 (CALF ONLY)PIPE, JOINT 1 (CALF ONLY)
-
674NK-14987-10-00 HOSE (CALF ONLY)HOSE (CALF ONLY)
