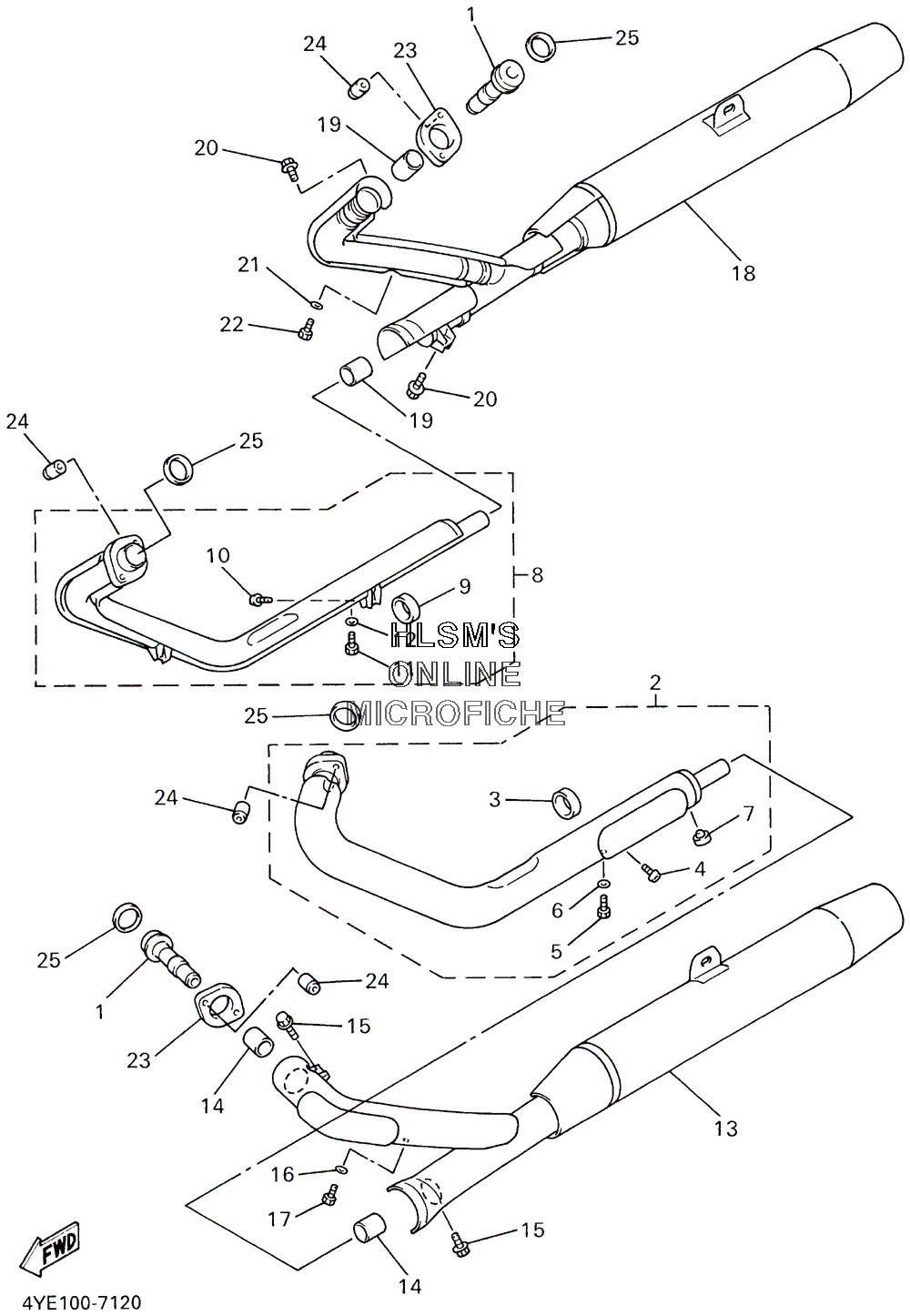

EXHAUST для Yamaha XVZ 1300 LT ROAD STAR TOUR DELUXE - 2001 года выпуска
-
№АртикулНазвание
-
14YE-14614-00-00 FLANGE, EXHAUST PIPEFLANGE, EXHAUST PIPE
-
24YE-14620-00-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
34NK-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
492017-08025-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
597080-06008-00 ...BOLT...BOLT
-
692990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
7116-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
84YE-14650-00-00 EXHAUST PIPE ASSY 4EXHAUST PIPE ASSY 4
-
94NK-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
1092017-08025-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1197080-06008-00 ...BOLT...BOLT
-
1292990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
134YE-14703-00-00 MUFFLER COMP. 1MUFFLER COMP. 1
-
144BH-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
1595024-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1692990-06600-00 WASHER, PLATEWASHER, PLATE
-
1797080-06008-00 BOLTBOLT
-
184YE-14704-00-00 MUFFLER COMP. 2MUFFLER COMP. 2
-
194BH-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
2095024-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2192990-06600-00 WASHER, PLATEWASHER, PLATE
-
2297080-06008-00 BOLTBOLT
-
234KG-14612-00-00 NUT, RINGNUT, RING
-
2490179-08442-00 NUTNUT
-
253GD-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
