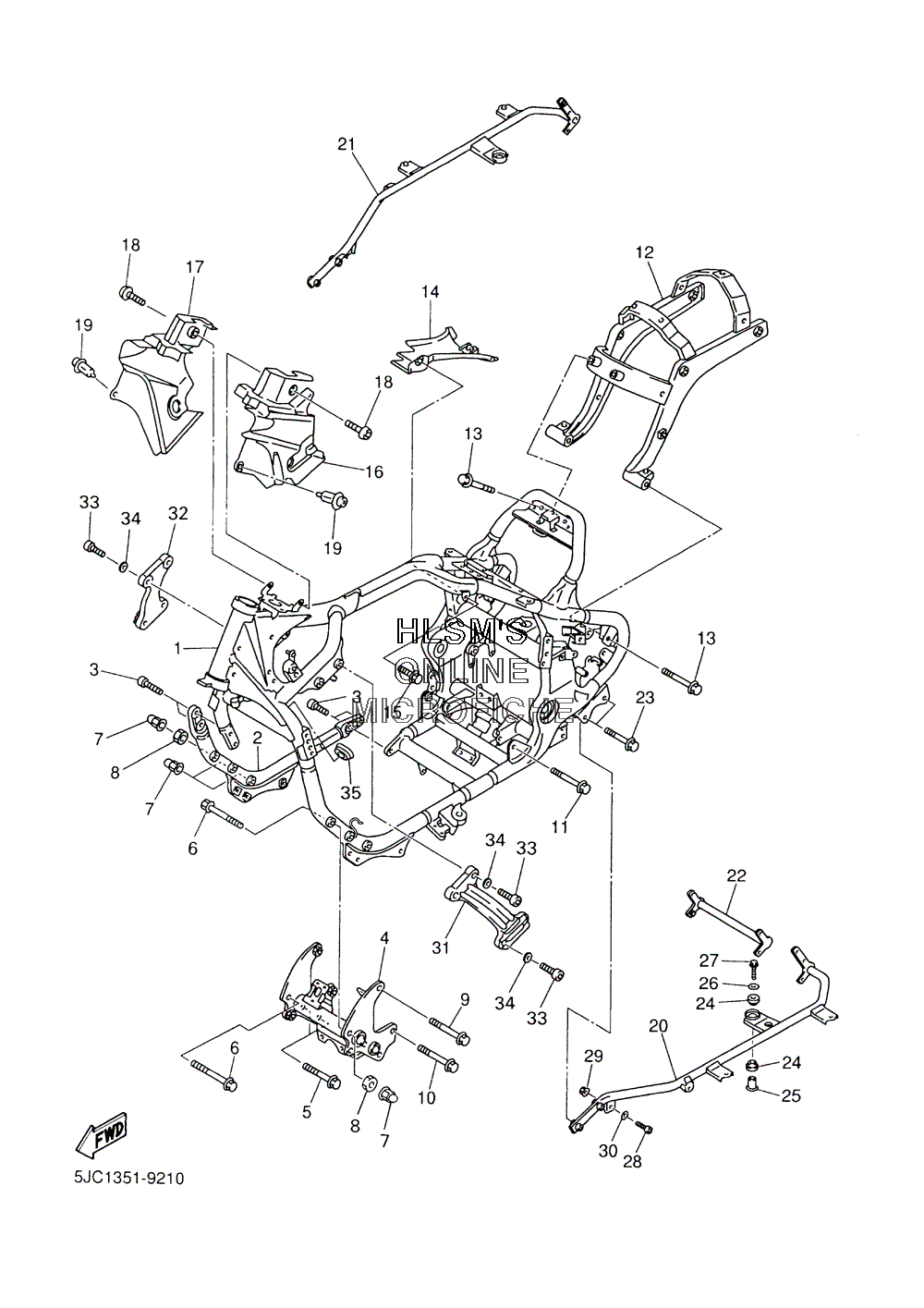

FRAME для Yamaha XVZ 1300 TF ROYAL STAR VENTURE - 2001 года выпуска
-
№АртикулНазвание
-
14XY-21110-00-33 FRAME COMP. (YAMAHA BLACK (YB))FRAME COMP. (YAMAHA BLACK (YB))
-
24XY-21150-00-33 DOWN TUBE COMP.2 (YAMAHA BLACK (YB))DOWN TUBE COMP.2 (YAMAHA BLACK (YB))
-
391317-10030-00 BOLTBOLT
-
44XY-2141V-00-00 CROSS BAR COMPLETECROSS BAR COMPLETE
-
595817-10070-00 BOLT, FLANGEBOLT, FLANGE
-
695827-10080-00 BOLT, FLANGEBOLT, FLANGE
-
790176-10075-00 NUT, CROWNNUT, CROWN
-
890170-10206-00 NUTNUT
-
990105-10788-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1090105-10788-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1190105-12252-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
124XY-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
1395827-10035-00 BOLT, FLANGEBOLT, FLANGE
-
144XY-2117M-00-00 COVER 2COVER 2
-
1590119-06236-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
164XY-2171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
174XY-2171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
1890154-05013-00 SCREW, BINDINGSCREW, BINDING
-
1990269-06083-00 RIVETRIVET
-
204XY-21445-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
214XY-21446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
224YE-2144F-01-00 STAY, MUFFLER 3STAY, MUFFLER 3
-
2390105-08310-00 BOLT, FLANGEBOLT, FLANGE
-
2436Y-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
254G0-14638-00-00 COLLARCOLLAR
-
2690201-10669-00 WASHER, PLATEWASHER, PLATE
-
2795807-10040-00 BOLT, FLANGEBOLT, FLANGE
-
2891317-08035-00 BOLTBOLT
-
2995617-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3090201-08326-00 WASHER, PLATEWASHER, PLATE
-
314XY-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
324XY-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
3391314-10035-00 BOLTBOLT
-
3492990-10600-00 WASHER, PLATEWASHER, PLATE
-
3590480-01401-00 GROMMETGROMMET
