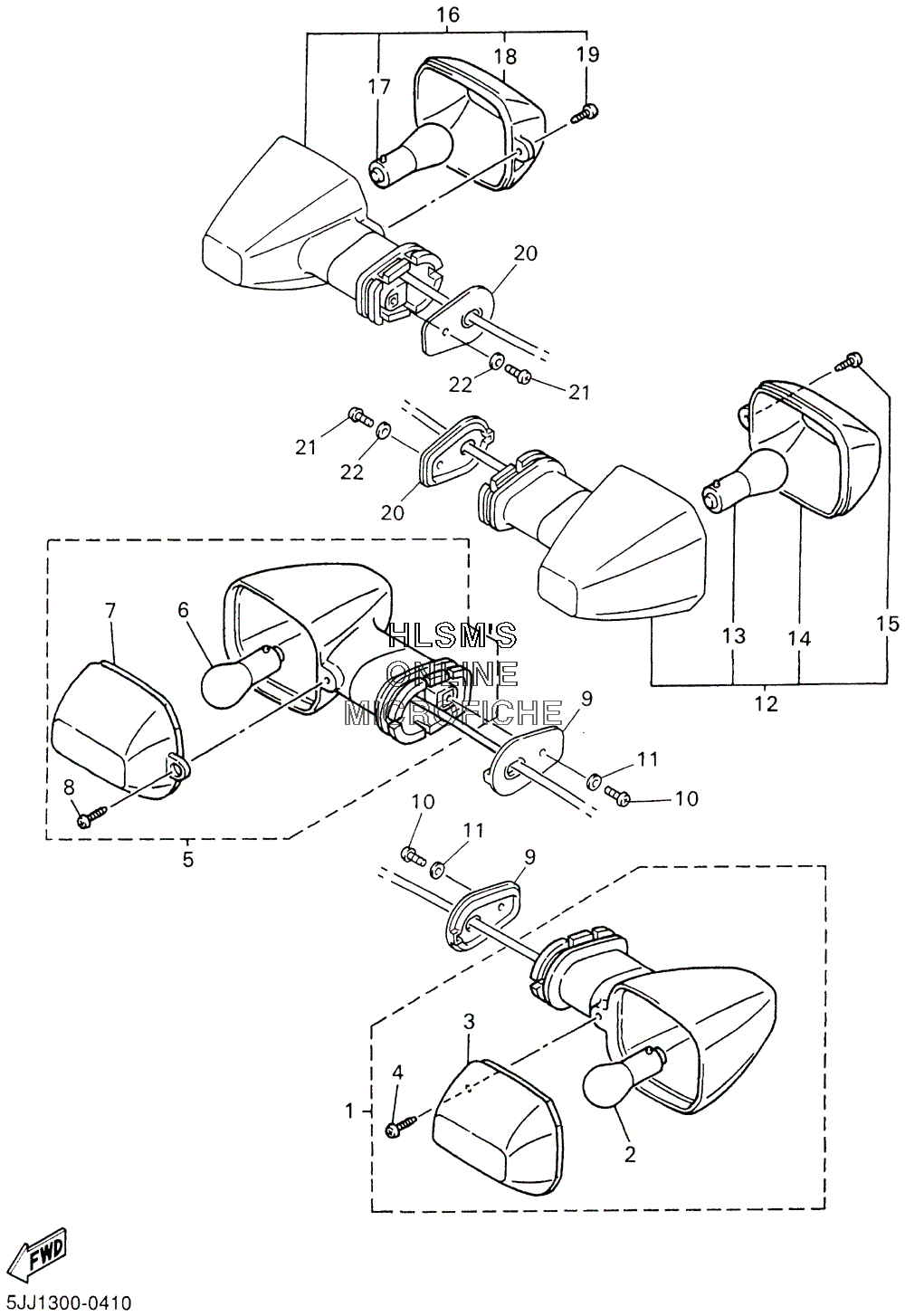

FLASHER LIGHT для Yamaha YZF-R1 CHAMPIONS LTD ED. - 2001 года выпуска
-
№АртикулНазвание
-
15JJ-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
2256-84714-61-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
34JH-83332-10-00 ...LENS, FLASHER...LENS, FLASHER
-
497702-40610-00 ...SCREW, TAPPING...SCREW, TAPPING
-
55JJ-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
6256-84714-61-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
74JH-83342-10-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
897702-40610-00 ...SCREW, TAPPING...SCREW, TAPPING
-
95JJ-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
1098507-04008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1192907-04600-00 WASHERWASHER
-
125JJ-83330-10-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
1325683-31170-XX ...BULB (12V-27W)...BULB (12V-27W)
-
144JH-83342-10-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
1597702-40610-00 ...SCREW, TAPPING...SCREW, TAPPING
-
165JJ-83340-10-00 FLASHER LIGHT ASSY 2FLASHER LIGHT ASSY 2
-
1725683-31170-XX ...BULB (12V-27W)...BULB (12V-27W)
-
184JH-83332-10-00 ...LENS, FLASHER...LENS, FLASHER
-
1997702-40610-00 ...SCREW, TAPPING...SCREW, TAPPING
-
205JJ-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
2198507-04008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2292907-04600-00 WASHERWASHER
