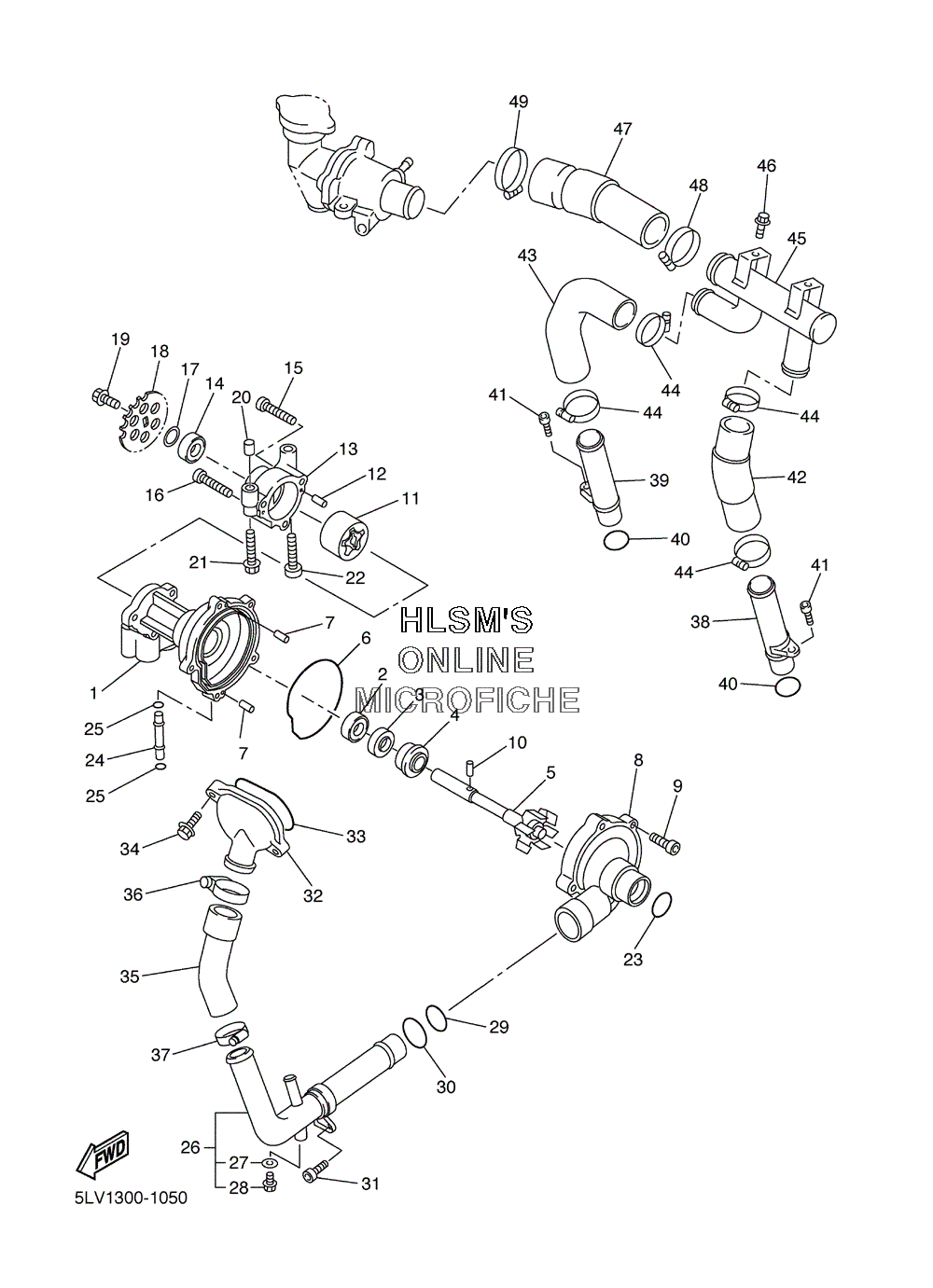

WATER PUMP для Yamaha FZ1 - 2002 года выпуска
-
№АртикулНазвание
-
14XV-12421-00-00 HOUSING, WATER PUMPHOUSING, WATER PUMP
-
293306-00106-00 BEARINGBEARING
-
393102-12372-00 OIL SEALOIL SEAL
-
411H-12438-10-00 SEAL, MECHANICALSEAL, MECHANICAL
-
54XV-12450-00-00 IMPELLER SHAFT ASSYIMPELLER SHAFT ASSY
-
64XV-12439-00-00 O-RINGO-RING
-
793604-10011-00 PIN, DOWELPIN, DOWEL
-
84XV-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
991317-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1093603-17070-00 PIN, DOWELPIN, DOWEL
-
114XV-13310-00-00 ROTOR ASSY 1ROTOR ASSY 1
-
1293603-12007-00 PIN, DOWELPIN, DOWEL
-
134XV-13336-00-00 HOUSING, ROTORHOUSING, ROTOR
-
1493306-00105-00 BEARINGBEARING
-
1591317-06035-00 BOLTBOLT
-
1691317-06040-00 BOLTBOLT
-
1790201-12541-00 WASHER, PLATEWASHER, PLATE
-
184XV-13355-00-00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
1995817-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2091808-30031-00 PIN, DOWELPIN, DOWEL
-
2195817-06045-00 BOLT, FLANGEBOLT, FLANGE
-
2291317-06045-00 BOLTBOLT
-
2393210-357A2-00 O-RINGO-RING
-
244XV-12485-00-00 PIPE 5PIPE 5
-
2593210-06667-00 O-RINGO-RING
-
265LV-12481-00-00 PIPE 1PIPE 1
-
2790430-06014-00 ...GASKET...GASKET
-
2890153-06029-00 ...SCREW, HEXAGON...SCREW, HEXAGON
-
2993210-235A1-00 O-RINGO-RING
-
3093210-27370-00 O-RINGO-RING
-
3191317-06012-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
324XV-12469-00-00 JOINT 1JOINT 1
-
3393210-47675-00 O-RINGO-RING
-
3495024-06020-00 BOLT, FLANGEBOLT, FLANGE
-
354XV-12576-00-00 HOSE 1HOSE 1
-
3690450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3790450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
385LV-12482-00-00 PIPE 2PIPE 2
-
395LV-12483-00-00 PIPE 3PIPE 3
-
4093210-18417-00 O-RINGO-RING
-
4191317-06016-00 BOLTBOLT
-
425LV-12577-00-00 HOSE 2HOSE 2
-
435LV-12578-00-00 HOSE 3HOSE 3
-
4490450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
455LV-12485-00-00 PIPE 5PIPE 5
-
4695817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
475LV-12579-00-00 HOSE 4HOSE 4
-
4890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4990450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
