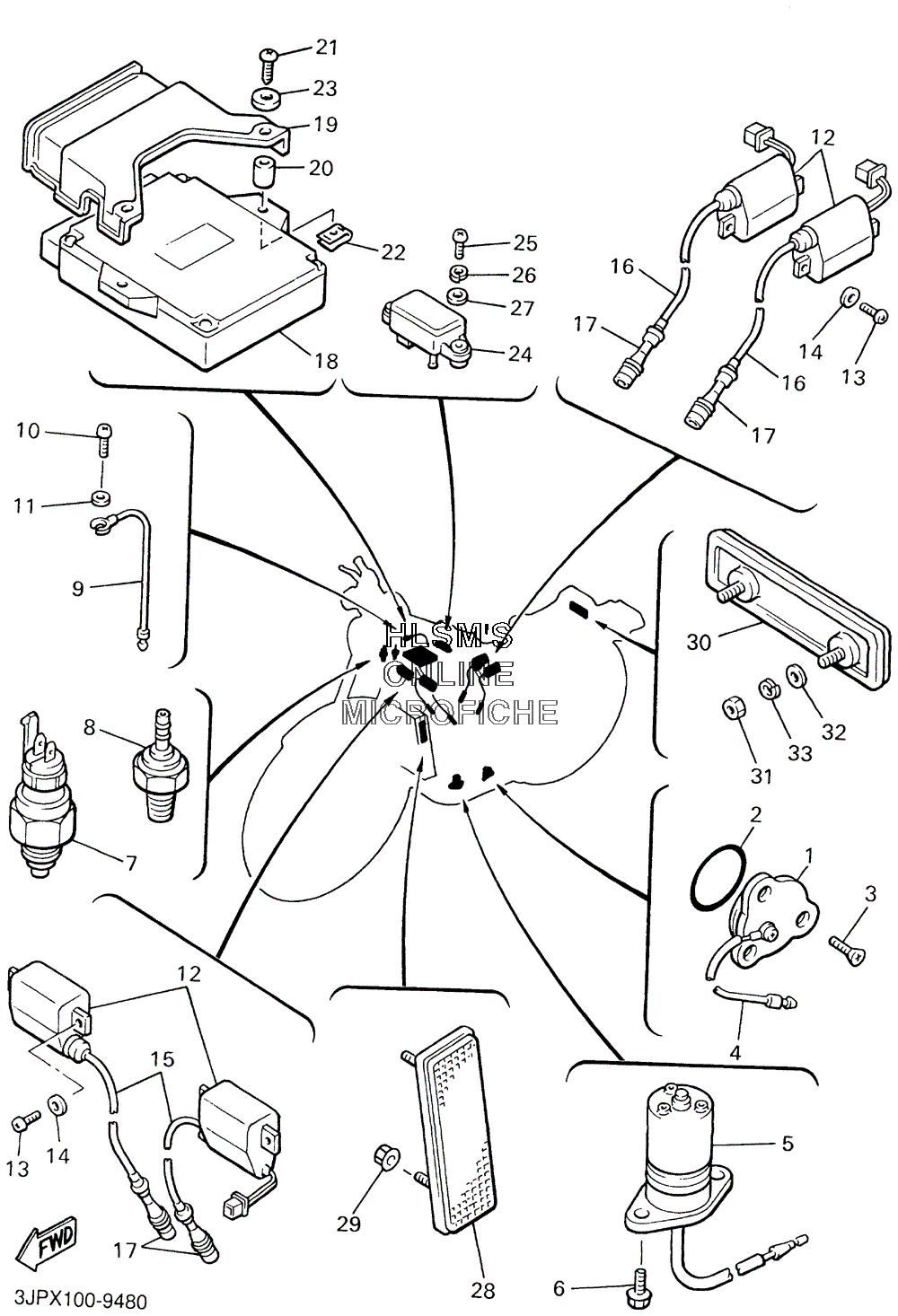

ELECTRICAL для Yamaha VMX 1200 V-MAX CALIFORNIA - 2002 года выпуска
-
№АртикулНазвание
-
11L9-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
293210-29196-00 O-RINGO-RING
-
390149-05321-00 SCREWSCREW
-
42JX-82541-00-00 WIRE, LEADWIRE, LEAD
-
51FK-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
690150-06696-00 BOLT, FLANGEBOLT, FLANGE
-
73LN-82560-01-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
811H-83591-00-00 THERMO UNITTHERMO UNIT
-
94NK-83354-00-00 WIRE, EARTH LEAD 1WIRE, EARTH LEAD 1
-
1098507-04008-00 .SCREW.SCREW
-
1192907-04600-00 WASHERWASHER
-
1225G-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1398517-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492907-06600-00 WASHER, PLATEWASHER, PLATE
-
154X7-82341-00-00 CORD, HIGH TENSIONCORD, HIGH TENSION
-
164X7-82341-00-00 CORD, HIGH TENSIONCORD, HIGH TENSION
-
174XY-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
183JP-82305-12-00 IGNITOR UNIT ASSYIGNITOR UNIT ASSY
-
192EN-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
2090387-045R4-00 COLLARCOLLAR
-
2197704-40616-00 SCREW, TAPPINGSCREW, TAPPING
-
2290183-04027-00 NUT, SPRINGNUT, SPRING
-
2392907-04200-00 WASHERWASHER
-
2422N-82380-10-00 SENSOR, PRESSURE (OPT) (FOR INTAKE PRESSURE)SENSOR, PRESSURE (OPT) (FOR INTAKE PRESSURE)
-
2598517-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2692907-06600-00 WASHER, PLATEWASHER, PLATE
-
2790201-065F3-00 WASHER, PLATEWASHER, PLATE
-
2811H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
2995707-05500-00 NUT, FLANGENUT, FLANGE
-
308Y7-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
3195317-05700-00 NUTNUT
-
3292907-05200-00 WASHERWASHER
-
3392907-05100-00 WASHER, SPRINGWASHER, SPRING
