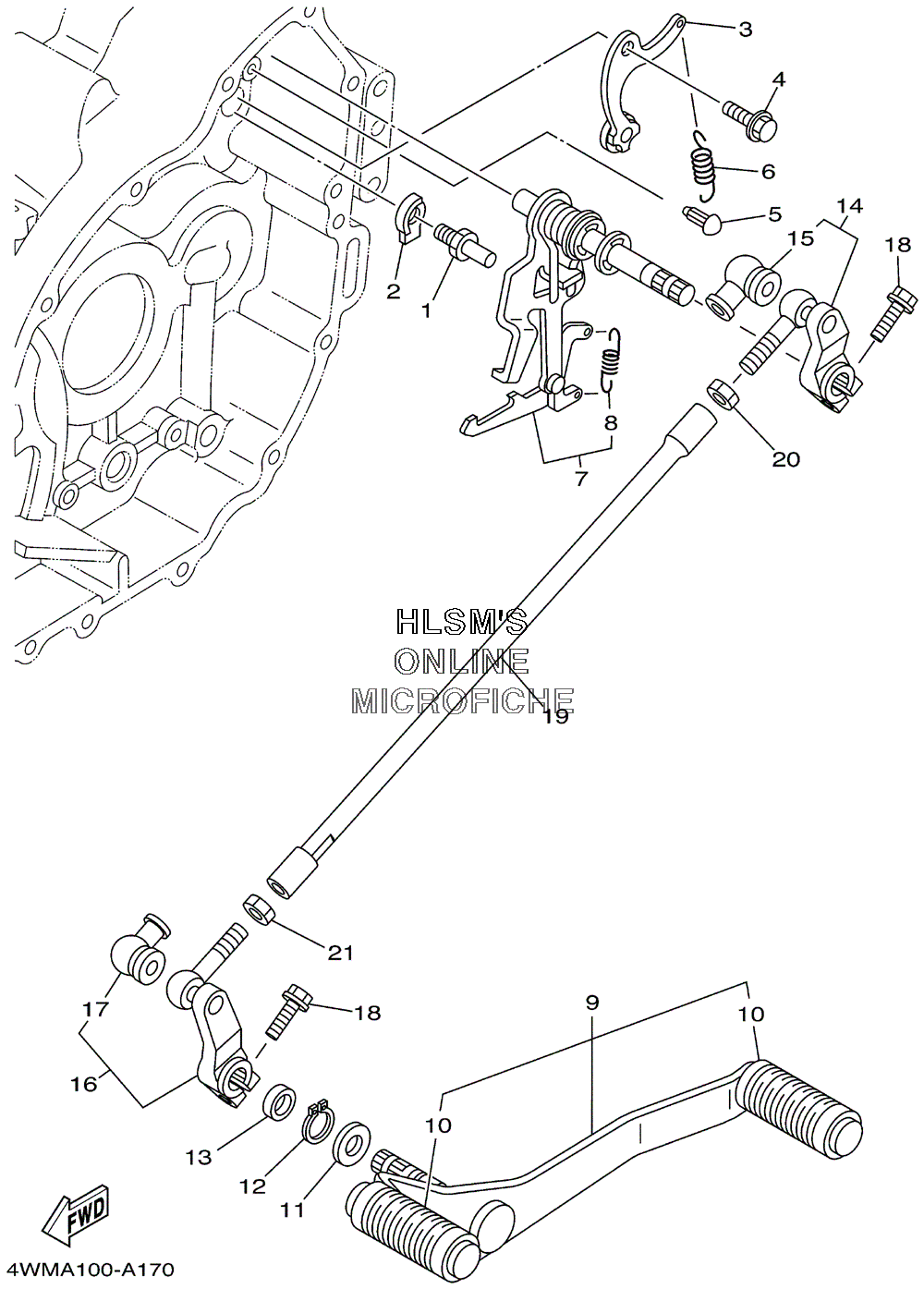

SHIFT SHAFT для Yamaha XV 1600 A ROAD STAR CALIFORNIA - 2002 года выпуска
-
№АртикулНазвание
-
190109-08441-00 BOLTBOLT
-
290215-08115-00 WASHER, LOCKWASHER, LOCK
-
326H-18140-02-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
490109-063F8-00 BOLTBOLT
-
5132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
690507-14064-00 SPRING, TENSIONSPRING, TENSION
-
74WM-18101-01-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
890506-08227-00 ...SPRING, TENSION...SPRING, TENSION
-
94WM-18110-01-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
104NK-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
1190201-127E1-00 WASHER, PLATEWASHER, PLATE
-
1299006-10600-00 CIRCLIPCIRCLIP
-
134WM-18154-00-00 COVER, DUSTCOVER, DUST
-
144WM-18130-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
152H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
164WM-18150-01-00 SHIFT LEVER ASSYSHIFT LEVER ASSY
-
172H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
1891314-06020-00 BOLTBOLT
-
194WM-18115-00-00 ROD, SHIFTROD, SHIFT
-
2095380-08700-00 NUTNUT
-
2190170-08358-00 NUTNUT
