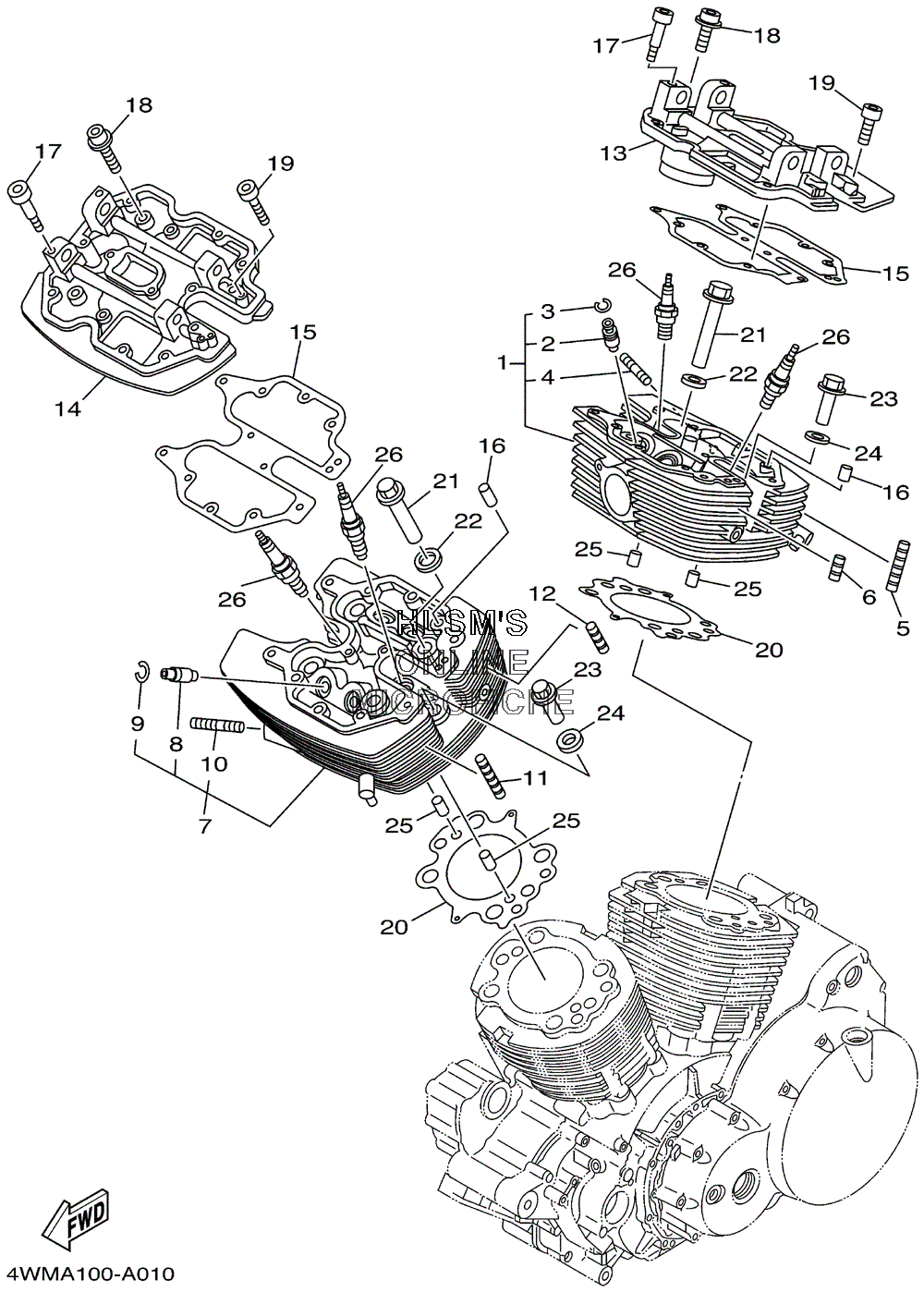

CYLINDER HEAD для Yamaha XV 1600 A ROAD STAR - 2002 года выпуска
-
№АртикулНазвание
-
14WM-11101-00-00 CYL HEAD ASSYCYL HEAD ASSY
-
24WM-11133-10-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
393440-12052-00 ...CIRCLIP...CIRCLIP
-
495617-08625-00 ...BOLT, STUD...BOLT, STUD
-
54WM-11161-00-00 ABSORBER 1ABSORBER 1
-
64WM-11162-00-00 ABSORBER 2ABSORBER 2
-
74WM-11101-10-00 CYL HEAD ASSYCYL HEAD ASSY
-
84WM-11133-10-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
993440-12052-00 ...CIRCLIP...CIRCLIP
-
1095617-08625-00 ...BOLT, STUD...BOLT, STUD
-
114WM-11161-00-00 ABSORBER 1ABSORBER 1
-
124WM-11162-00-00 ABSORBER 2ABSORBER 2
-
134WM-11131-00-00 HEAD, CYL 3HEAD, CYL 3
-
144WM-11141-00-00 HEAD, CYL 4HEAD, CYL 4
-
154WM-11182-00-00 GASKET, CYL HEAD 2GASKET, CYL HEAD 2
-
1691808-16023-00 PIN, DOWELPIN, DOWEL
-
1790109-06419-00 BOLTBOLT
-
1890109-067E6-00 BOLTBOLT
-
1991314-06045-00 BOLTBOLT
-
204WM-11181-00-00 GASKET, CYL HEAD 1GASKET, CYL HEAD 1
-
214WM-11171-00-00 NUT, HOLDINGNUT, HOLDING
-
224WM-11175-00-00 WASHER, HOLDING 1WASHER, HOLDING 1
-
234WM-11172-00-00 NUT, HOLDINGNUT, HOLDING
-
244WM-11176-00-00 WASHER, HOLDINGWASHER, HOLDING
-
2590387-087A5-00 COLLARCOLLAR
-
26NGK-DPR7E-A9-00 PLUG, SPARK (NGK DPR7EA 9) (OPT)PLUG, SPARK (NGK DPR7EA 9) (OPT)
