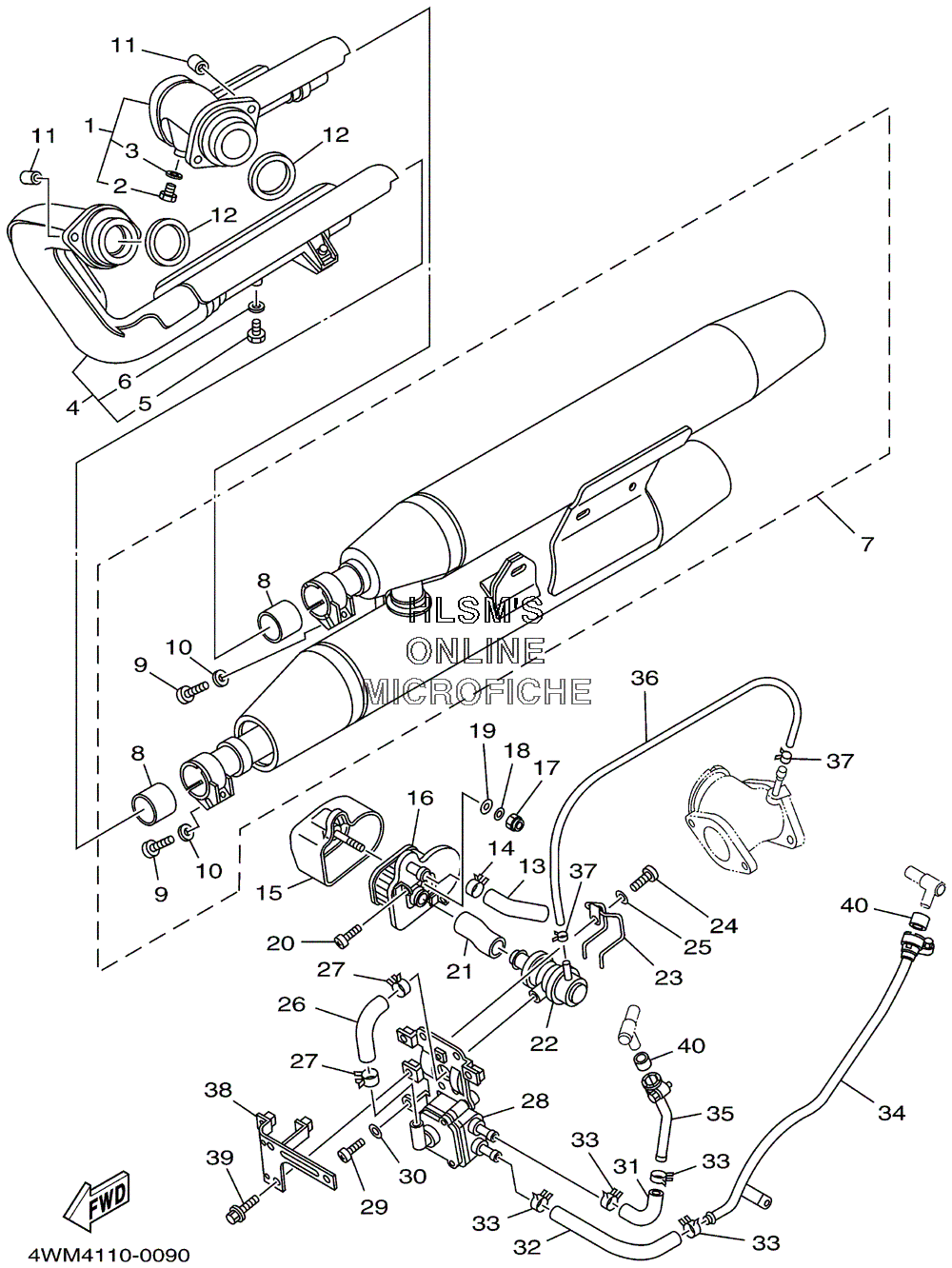

EXHAUST для Yamaha XV 1600 AT ROAD STAR SILVERADO - 2002 года выпуска
-
№АртикулНазвание
-
14WM-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
297080-06008-00 ...BOLT...BOLT
-
392990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
44WM-14620-00-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
597080-06008-00 ...BOLT...BOLT
-
692990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
74WM-14710-03-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
83XW-14755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
997013-08025-00 ...BOLT...BOLT
-
1092990-08600-00 ...WASHER, PLATE...WASHER, PLATE
-
1190179-08442-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
123EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
134WM-14885-00-00 HOSE, BEND 5HOSE, BEND 5
-
1490467-19051-00 CLIPCLIP
-
154WM-14857-00-00 CASE, AIR CLEANERCASE, AIR CLEANER
-
164WM-14858-00-00 CAP, CASECAP, CASE
-
1795617-05100-00 NUT, UNUT, U
-
1892907-05200-00 WASHERWASHER
-
1990202-05057-00 WASHER, PLATEWASHER, PLATE
-
2098517-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
214WM-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
224WM-14840-00-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
2390462-20248-00 CLAMPCLAMP
-
2498507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2592907-06600-00 WASHER, PLATEWASHER, PLATE
-
264WM-14883-00-00 HOSE, BEND 3HOSE, BEND 3
-
2790467-19051-00 CLIPCLIP
-
284WM-14808-00-00 REED VALVE ASSYREED VALVE ASSY
-
2998507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3092907-06600-00 WASHER, PLATEWASHER, PLATE
-
314WM-14884-00-00 HOSE, BEND 4HOSE, BEND 4
-
324WM-14886-00-00 HOSE, BEND 6HOSE, BEND 6
-
3390468-08104-00 CLIPCLIP
-
344WM-14871-00-00 PIPE 1PIPE 1
-
354WM-14872-00-00 PIPE 2PIPE 2
-
364WM-13542-00-00 HOSE, VACUUM SENSING 1HOSE, VACUUM SENSING 1
-
3790467-08092-00 CLIP, SCISSORCLIP, SCISSOR
-
384WM-14868-00-00 BRACKET 2BRACKET 2
-
3995027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
4042H-14714-10-00 GASKET, MUFFLERGASKET, MUFFLER
