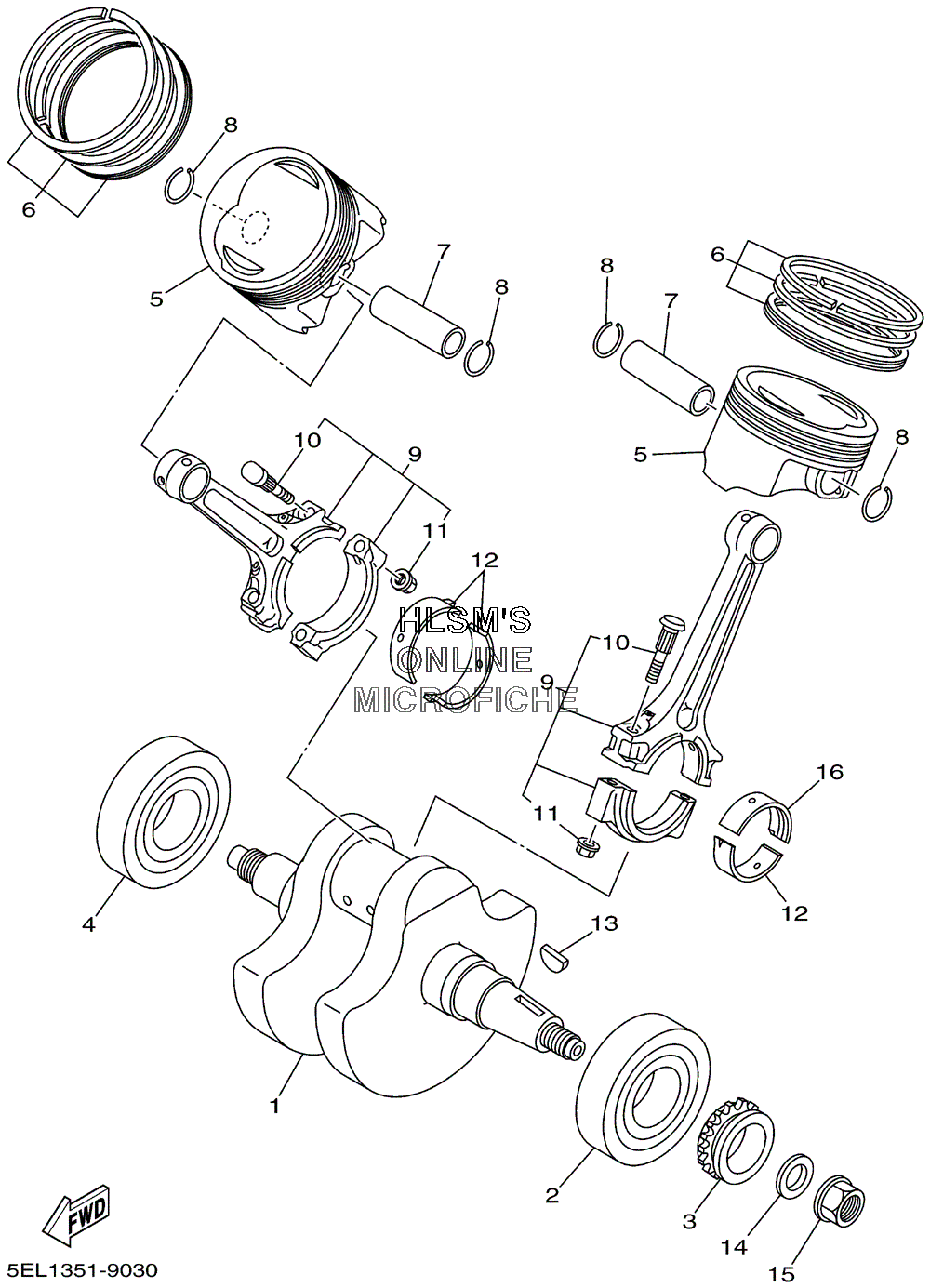

CRANKSHAFT - PISTON для Yamaha XVS 1100 A V-STAR CLASSIC - 2002 года выпуска

№

Артикул

Название
1

5EL-11411-10-00 CRANKSHAFT

CRANKSHAFT

82 050 ₽
2

93306-30808-00 BEARING

BEARING

14 010 ₽
3

4X7-13354-00-00 SPROCKET, DRIVE

SPROCKET, DRIVE

4 400 ₽
4

93306-30808-00 BEARING

BEARING

14 010 ₽
5

5EL-11631-10-00 PISTON (STD)

PISTON (STD)

18 740 ₽
6

1TA-11610-00-00 PISTON RING SET (STD)

PISTON RING SET (STD)

4 400 ₽
7

4WM-11633-00-00 PIN, PISTON

PIN, PISTON

3 300 ₽
8

93450-24028-00 CIRCLIP

CIRCLIP

180 ₽
9

5EL-11650-10-00 CONNECTING ROD ASSY

CONNECTING ROD ASSY

19 680 ₽
10

4X7-11654-01-00 ...BOLT, CONNECTING ROD

...BOLT, CONNECTING ROD

1 000 ₽
11

90179-09379-00 ...NUT

...NUT

380 ₽
12

4X7-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)

PLANE BEARING, CONNECTING ROD (OPT) (BLUE)

1 520 ₽
12

4X7-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)

PLANE BEARING, CONNECTING ROD (OPT) (BLACK)

1 520 ₽
12

4X7-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)

PLANE BEARING, CONNECTING ROD (OPT) (BROWN)

1 520 ₽
12

4X7-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)

PLANE BEARING, CONNECTING ROD (OPT) (GREEN)

1 520 ₽
12

4X7-11656-40-00 PLANE BEARING, CONNECTING ROD (OPT) (YELLOW)

PLANE BEARING, CONNECTING ROD (OPT) (YELLOW)

1 520 ₽
13

90280-05048-00 KEY, WOODRUFF

KEY, WOODRUFF

1 730 ₽
14

90201-165H4-00 WASHER, PLATE

WASHER, PLATE

970 ₽
15

90179-16448-00 NUT

NUT

1 880 ₽
16

5G5-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)

PLANE BEARING, CONNECTING ROD (OPT) (BLACK)

1 730 ₽
16

5G5-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)

PLANE BEARING, CONNECTING ROD (OPT) (BROWN)

1 730 ₽
16

5G5-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)

PLANE BEARING, CONNECTING ROD (OPT) (GREEN)

1 730 ₽
