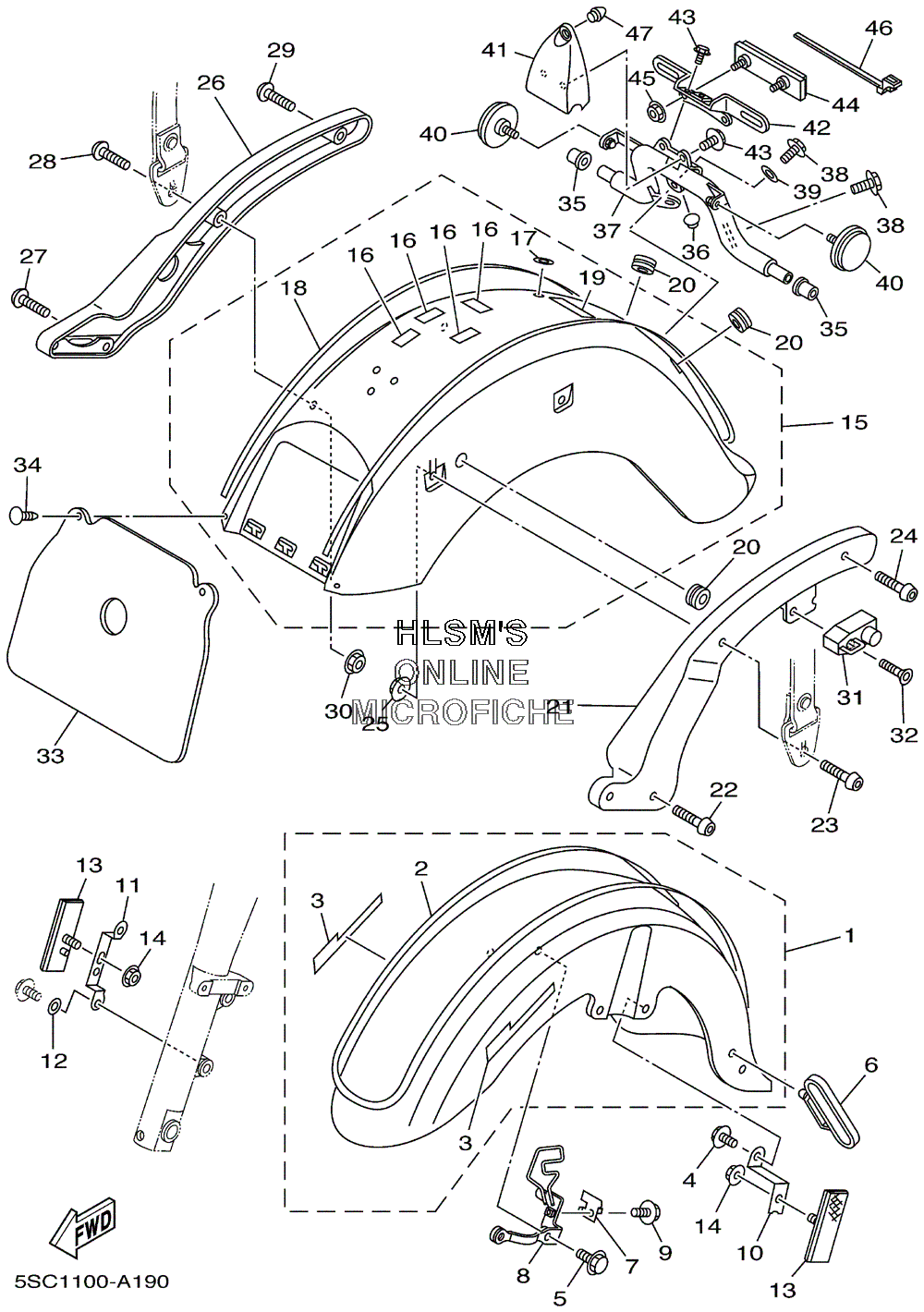

FENDER - FRONT / REAR для Yamaha XVS 650 A V-STAR CLASSIC - 2002 года выпуска
-
№АртикулНазвание
-
15BN-Y2151-31-33 FRONT FENDER COMP. (YAMAHA BLACK (YB))FRONT FENDER COMP. (YAMAHA BLACK (YB))
-
15BN-Y2151-11-2Y FRONT FENDER COMP. (LIGHT GRAYISH BLUE (LNC1) / BLUISH WHITE (BWC1))FRONT FENDER COMP. (LIGHT GRAYISH BLUE (LNC1) / BLUISH WHITE (BWC1))
-
15BN-Y2151-01-3Y FRONT FENDER COMP. (BLUE (VMB) / VERY DARK BLUE (VDBC4))FRONT FENDER COMP. (BLUE (VMB) / VERY DARK BLUE (VDBC4))
-
25BN-21570-F0-00 ...GRAPHIC SET, FRONT FENDER (FOR YAMAHA BLACK (YB))...GRAPHIC SET, FRONT FENDER (FOR YAMAHA BLACK (YB))
-
25BN-21570-G0-00 ...GRAPHIC SET, FRONT FENDER (FOR LIGHT GRAYISH BLUE (LNC1))...GRAPHIC SET, FRONT FENDER (FOR LIGHT GRAYISH BLUE (LNC1))
-
25BN-21570-H0-00 ...GRAPHIC SET, FRONT FENDER (FOR BLUE (VMB))...GRAPHIC SET, FRONT FENDER (FOR BLUE (VMB))
-
35BN-21578-00-00 ...EMBLEM (FOR YAMAHA BLACK (YB))...EMBLEM (FOR YAMAHA BLACK (YB))
-
35BN-21578-80-00 ...EMBLEM (FOR BLUE (VMB))...EMBLEM (FOR BLUE (VMB))
-
35BN-21578-70-00 ...EMBLEM (FOR LIGHT GRAYISH BLUE (LNC1))...EMBLEM (FOR LIGHT GRAYISH BLUE (LNC1))
-
495817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
595814-08020-00 BOLT, FLANGEBOLT, FLANGE
-
65BN-21518-01-00 HOLDER, CABLEHOLDER, CABLE
-
75BN-21598-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
85BN-21587-01-00 STAY 1STAY 1
-
995807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
105BN-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
115BN-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
1290201-08759-00 WASHER, PLATEWASHER, PLATE
-
1311H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
1495707-05500-00 NUT, FLANGENUT, FLANGE
-
155BN-Y2161-02-33 REAR FENDER COMP. (YAMAHA BLACK (YB))REAR FENDER COMP. (YAMAHA BLACK (YB))
-
155BN-Y2161-32-3Y REAR FENDER COMP. (LIGHT GRAYISH BLUE (LNC1) / BLUISH WHITE (BWC1))REAR FENDER COMP. (LIGHT GRAYISH BLUE (LNC1) / BLUISH WHITE (BWC1))
-
155BN-Y2161-42-4Y REAR FENDER COMP. (BLUE (VMB) / VERY DARK BLUE (VDBC4))REAR FENDER COMP. (BLUE (VMB) / VERY DARK BLUE (VDBC4))
-
163SP-21732-00-00 ...SEAL 1...SEAL 1
-
174NK-21735-00-00 ...SEAL 2...SEAL 2
-
185BN-2165A-F0-00 ...GRAPHIC SET,REAR FENDER (FOR YAMAHA BLACK (YB))...GRAPHIC SET,REAR FENDER (FOR YAMAHA BLACK (YB))
-
185BN-2165A-G0-00 ...GRAPHIC SET,REAR FENDER (FOR LIGHT GRAYISH BLUE (LNC1))...GRAPHIC SET,REAR FENDER (FOR LIGHT GRAYISH BLUE (LNC1))
-
185BN-2165A-H0-00 ...GRAPHIC SET,REAR FENDER (FOR BLUE (VMB))...GRAPHIC SET,REAR FENDER (FOR BLUE (VMB))
-
1999244-00080-00 ...EMBLEM, YAMAHA (FOR LIGHT GRAYISH BLUE (LNC1))...EMBLEM, YAMAHA (FOR LIGHT GRAYISH BLUE (LNC1))
-
1999247-00080-00 ...EMBLEM, YAMAHA (FOR YAMAHA BLACK (YB) / (FOR YAMAHA BLACK (YB))...EMBLEM, YAMAHA (FOR YAMAHA BLACK (YB) / (FOR YAMAHA BLACK (YB))
-
2090480-15061-00 GROMMETGROMMET
-
215BN-21613-10-00 STAY, FENDER 1STAY, FENDER 1
-
2292014-10025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2392014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2492014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2590179-08491-00 NUT, FLANGENUT, FLANGE
-
265BN-21614-10-00 STAY, FENDER 2STAY, FENDER 2
-
2792014-10025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2892014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2992014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3090179-08491-00 NUT, FLANGENUT, FLANGE
-
314R8-21308-00-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
3290149-06154-00 SCREWSCREW
-
334TR-21629-00-00 GUARD, MUDGUARD, MUD
-
3490269-05039-00 RIVETRIVET
-
354NK-83321-00-00 DAMPER, FLASHER 1DAMPER, FLASHER 1
-
364NK-83345-00-00 PLUG, BLINDPLUG, BLIND
-
375BN-2317W-40-00 STAY, 9STAY, 9
-
3895024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3990201-06043-00 WASHER, PLATEWASHER, PLATE
-
40449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
415BN-84703-00-00 BRACKETBRACKET
-
425BN-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
4395027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
441FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4595707-05500-00 NUT, FLANGENUT, FLANGE
-
4690464-25002-00 CLAMPCLAMP
-
4742U-21639-00-00 DAMPER 2DAMPER 2
