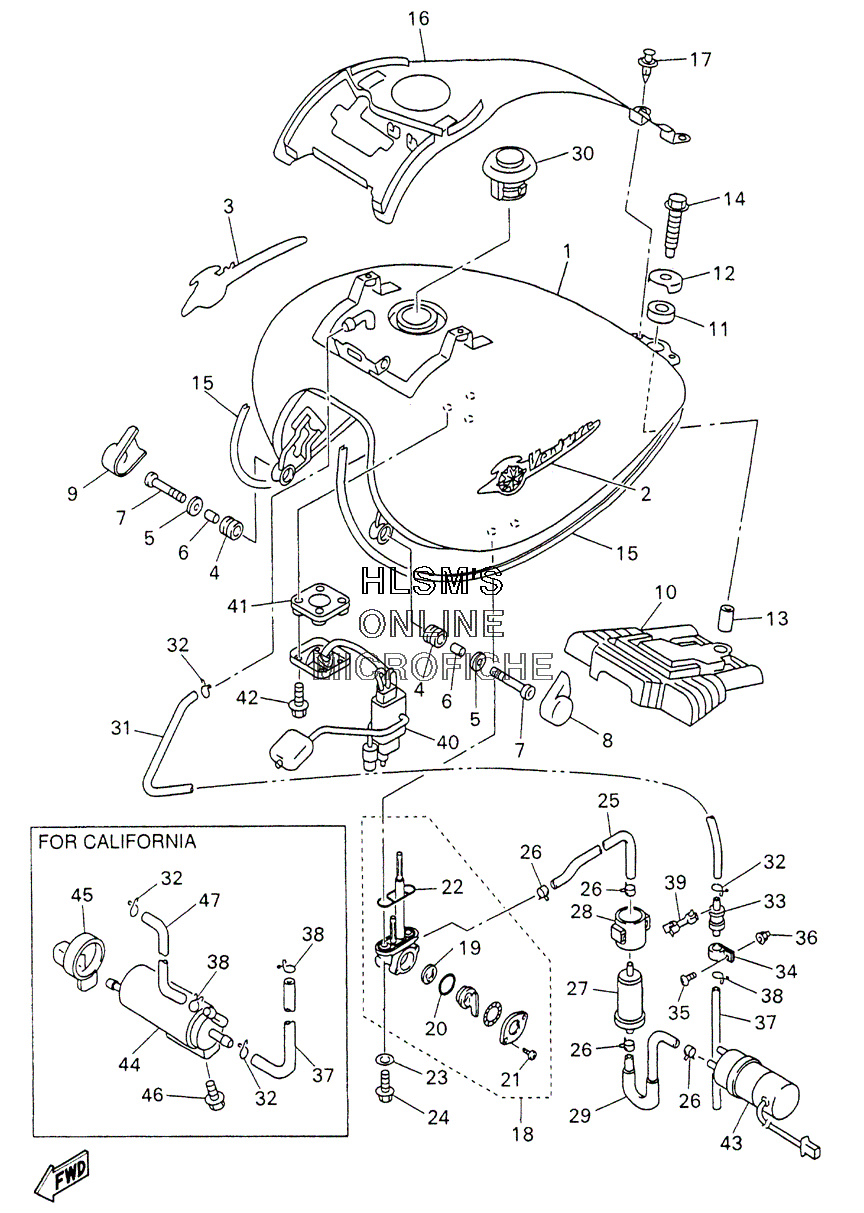

FUEL TANK для Yamaha XVZ 1300 TFS ROYAL STAR MIDNIGHT VENTURE - 2002 года выпуска
-
№АртикулНазвание
-
14XY-YK241-10-33 FUEL TANK COMP. (YAMAHA BLACK (YB))FUEL TANK COMP. (YAMAHA BLACK (YB))
-
24XY-2416B-10-00 EMBLEMEMBLEM
-
34XY-2417B-10-00 EMBLEMEMBLEM
-
490480-18549-00 GROMMETGROMMET
-
590201-063J2-00 WASHER, PLATEWASHER, PLATE
-
690387-06027-00 COLLARCOLLAR
-
792017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
84XY-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
94XY-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
104XY-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
114XY-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1242X-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1390387-0813V-00 COLLARCOLLAR
-
1490109-08002-00 BOLTBOLT
-
154XY-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
164XY-2171A-00-00 COVER, TOPCOVER, TOP
-
1790269-07076-00 RIVETRIVET
-
184WM-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
193AJ-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
203AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
2197801-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
224X8-24512-00-00 ...O-RING...O-RING
-
2390202-05193-00 WASHER, PLATEWASHER, PLATE
-
2490149-06011-00 SCREWSCREW
-
254XY-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2690467-12053-00 CLIPCLIP
-
271FK-24560-10-00 FILTER ASSYFILTER ASSY
-
281FK-24566-00-00 BRACKET, FILTERBRACKET, FILTER
-
294NK-24312-00-00 PIPE 2PIPE 2
-
304NK-24602-10-00 CAP ASSYCAP ASSY
-
314XY-24321-01-00 PIPE 10PIPE 10
-
3290467-10008-00 CLIPCLIP
-
334WM-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
3490461-15139-00 CLAMPCLAMP
-
3598907-05012-00 SCREW, SOCKETSCREW, SOCKET
-
3690176-05054-00 NUT, CROWNNUT, CROWN
-
3790445-116K9-00 HOSE (L355)HOSE (L355)
-
3890467-10008-00 CLIPCLIP
-
3990464-13103-00 CLAMPCLAMP
-
404XY-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
415G3-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
4290119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
434NK-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
444XY-24170-00-00 CANISTER ASSY (CALF ONLY)CANISTER ASSY (CALF ONLY)
-
452JU-2419E-00-00 COVER, CANISTER (CALF ONLY)COVER, CANISTER (CALF ONLY)
-
4695817-06010-00 BOLT, FLANGE (CALF ONLY)BOLT, FLANGE (CALF ONLY)
-
4790445-117K3-00 HOSE (L590) (CALF ONLY)HOSE (L590) (CALF ONLY)
