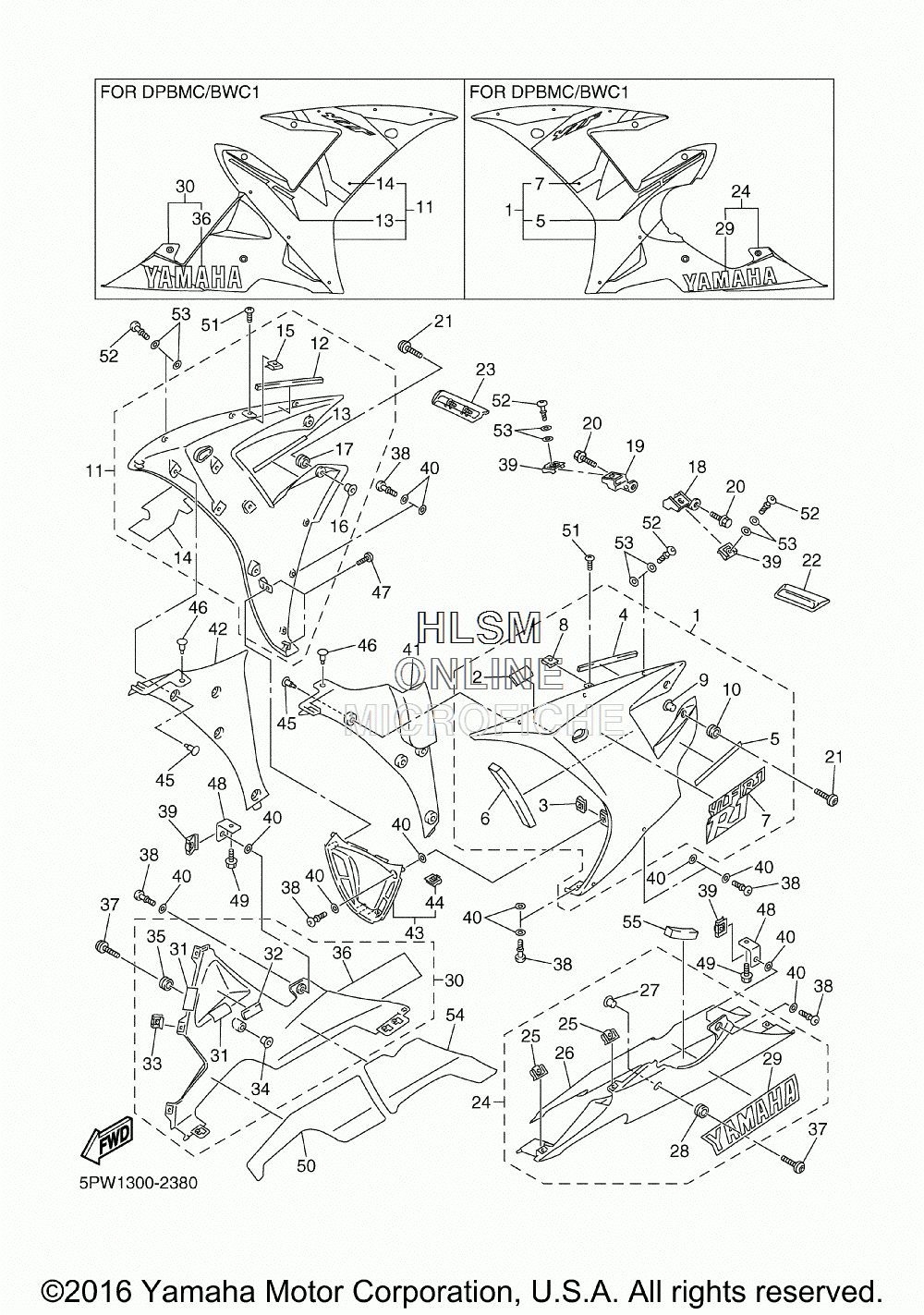

COWLING 2 для Yamaha YZF-R1 [ YZFR1P/C] (5PW4/5PW5) - 2002 года выпуска
-
№АртикулНазвание
-
15PW-Y283U-30-P1 PANEL ASSEMBLY 1 (OPT) (DPBMC FOR DPBMC/BWC1)PANEL ASSEMBLY 1 (OPT) (DPBMC FOR DPBMC/BWC1)
-
15PW-Y283U-00-P0 PANEL ASSEMBLY 1 (OPT) (BWC1 FOR VRC1)PANEL ASSEMBLY 1 (OPT) (BWC1 FOR VRC1)
-
15PW-Y283U-20-P2 PANEL ASSEMBLY 1 (OPT) (MBL2 FOR S3)PANEL ASSEMBLY 1 (OPT) (MBL2 FOR S3)
-
21TX-28371-00-00 ...DAMPER...DAMPER
-
35PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
45PW-28307-00-00 ...SEAL...SEAL
-
55PW-28328-A0-00 ...EMBLEM (OPT) (FOR DPBMC/BWC1)...EMBLEM (OPT) (FOR DPBMC/BWC1)
-
55PW-28328-20-00 ...EMBLEM (OPT) (FOR S3)...EMBLEM (OPT) (FOR S3)
-
55PW-28328-00-00 ...EMBLEM (OPT) (FOR VRC1)...EMBLEM (OPT) (FOR VRC1)
-
65PW-28371-00-00 ...DAMPER...DAMPER
-
75PW-28393-00-00 ...GRAPHIC 3 (OPT) (FOR DPBMC/BWC1)...GRAPHIC 3 (OPT) (FOR DPBMC/BWC1)
-
75PW-28391-20-00 ...GRAPHIC 1 (OPT) (FOR S3)...GRAPHIC 1 (OPT) (FOR S3)
-
75PW-28391-00-00 ...GRAPHIC 1 (OPT) (FOR VRC1)...GRAPHIC 1 (OPT) (FOR VRC1)
-
890183-05074-00 ...NUT, SPRING...NUT, SPRING
-
990387-065J6-00 ...COLLAR...COLLAR
-
1090480-12596-00 ...GROMMET...GROMMET
-
115PW-Y283V-40-P1 PANEL ASSEMBLY 2 (OPT) (DPBMC FOR DPBMC/BWC1)PANEL ASSEMBLY 2 (OPT) (DPBMC FOR DPBMC/BWC1)
-
115PW-Y283V-00-P0 PANEL ASSEMBLY 2 (OPT) (BWC1 FOR VRC1)PANEL ASSEMBLY 2 (OPT) (BWC1 FOR VRC1)
-
115PW-Y283V-20-P2 PANEL ASSEMBLY 2 (OPT) (MBL2 FOR S3)PANEL ASSEMBLY 2 (OPT) (MBL2 FOR S3)
-
125PW-28307-00-00 ...SEAL...SEAL
-
135PW-28338-A0-00 ...EMBLEM (OPT) (FOR DPBMC/BWC1)...EMBLEM (OPT) (FOR DPBMC/BWC1)
-
135PW-28338-00-00 ...EMBLEM (OPT) (FOR VRC1)...EMBLEM (OPT) (FOR VRC1)
-
135PW-28338-20-00 ...EMBLEM (OPT) (FOR S3)...EMBLEM (OPT) (FOR S3)
-
145PW-28394-00-00 ...GRAPHIC 4 (OPT) (FOR DPBMC/BWC1)...GRAPHIC 4 (OPT) (FOR DPBMC/BWC1)
-
145PW-28392-00-00 ...GRAPHIC 2 (OPT) (FOR VRC1)...GRAPHIC 2 (OPT) (FOR VRC1)
-
145PW-28392-20-00 ...GRAPHIC 2 (OPT) (FOR S3)...GRAPHIC 2 (OPT) (FOR S3)
-
1590183-05074-00 ...NUT, SPRING...NUT, SPRING
-
1690387-065J6-00 ...COLLAR...COLLAR
-
1790480-12596-00 ...GROMMET...GROMMET
-
185PW-2836A-00-00 BRACKET 1BRACKET 1
-
195PW-2836E-00-00 BRACKET 2BRACKET 2
-
2090119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2190149-06302-00 SCREWSCREW
-
225PW-2832M-00-00 PROTECTOR 1PROTECTOR 1
-
235PW-2832N-00-00 PROTECTOR 2PROTECTOR 2
-
245PW-Y2808-20-P2 COVER ASSY, UNDER (OPT) (DPBMC FOR DPBMC/BWC1)COVER ASSY, UNDER (OPT) (DPBMC FOR DPBMC/BWC1)
-
245PW-Y2808-10-P1 COVER, LOWER (OPT) (S3 FOR S3)COVER, LOWER (OPT) (S3 FOR S3)
-
245PW-Y2808-00-P0 COVER, LOWER (OPT) (MBL2 FOR VRC1)COVER, LOWER (OPT) (MBL2 FOR VRC1)
-
255PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
265PW-2848L-00-00 ...SEAT 3...SEAT 3
-
2790387-065J6-00 ...COLLAR...COLLAR
-
2890480-12596-00 ...GROMMET...GROMMET
-
2999247-00320-00 ...EMBLEM, YAMAHA (OPT) (FOR S3)...EMBLEM, YAMAHA (OPT) (FOR S3)
-
2999241-00320-00 ...EMBLEM, YAMAHA (OPT) (FOR DPBMC/BWC1)...EMBLEM, YAMAHA (OPT) (FOR DPBMC/BWC1)
-
2999246-00320-00 ...EMBLEM, YAMAHA (OPT) (FOR VRC1)...EMBLEM, YAMAHA (OPT) (FOR VRC1)
-
305PW-Y2809-20-P2 COVER ASSY 2, UNDER (OPT) (DPBMC FOR DPBMC/BWC1)COVER ASSY 2, UNDER (OPT) (DPBMC FOR DPBMC/BWC1)
-
305PW-Y2809-00-P0 COVER, UNDER (OPT) (MBL2 FOR VRC1)COVER, UNDER (OPT) (MBL2 FOR VRC1)
-
305PW-Y2809-10-P1 COVER, UNDER (OPT) (S3 FOR S3)COVER, UNDER (OPT) (S3 FOR S3)
-
311JK-21735-00-00 ...SEAL 2...SEAL 2
-
321TX-28371-00-00 ...DAMPER...DAMPER
-
335PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
3490387-065J6-00 ...COLLAR...COLLAR
-
3590480-12596-00 ...GROMMET...GROMMET
-
3699241-00320-00 ...EMBLEM, YAMAHA (OPT) (FOR DPBMC/BWC1)...EMBLEM, YAMAHA (OPT) (FOR DPBMC/BWC1)
-
3699247-00320-00 ...EMBLEM, YAMAHA (OPT) (FOR S3)...EMBLEM, YAMAHA (OPT) (FOR S3)
-
3699246-00320-00 ...EMBLEM, YAMAHA (OPT) (FOR VRC1)...EMBLEM, YAMAHA (OPT) (FOR VRC1)
-
3790149-06302-00 SCREWSCREW
-
385PW-28386-00-00 HEADHEAD
-
395PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
402TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
415PW-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
425PW-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
435PW-Y283S-00-00 PANEL, INNER 3PANEL, INNER 3
-
445PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
4590269-06081-00 RIVETRIVET
-
4690269-07077-00 RIVETRIVET
-
4797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
485PW-2836F-00-00 BRACKET 3BRACKET 3
-
4995817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
505PW-2848M-00-00 SEAT 4SEAT 4
-
5190154-05013-00 SCREW, BINDINGSCREW, BINDING
-
525PW-28386-00-00 HEADHEAD
-
532TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
545PW-2848N-00-00 SEAT 5SEAT 5
-
555PW-2834E-00-00 DAMPER 1DAMPER 1
