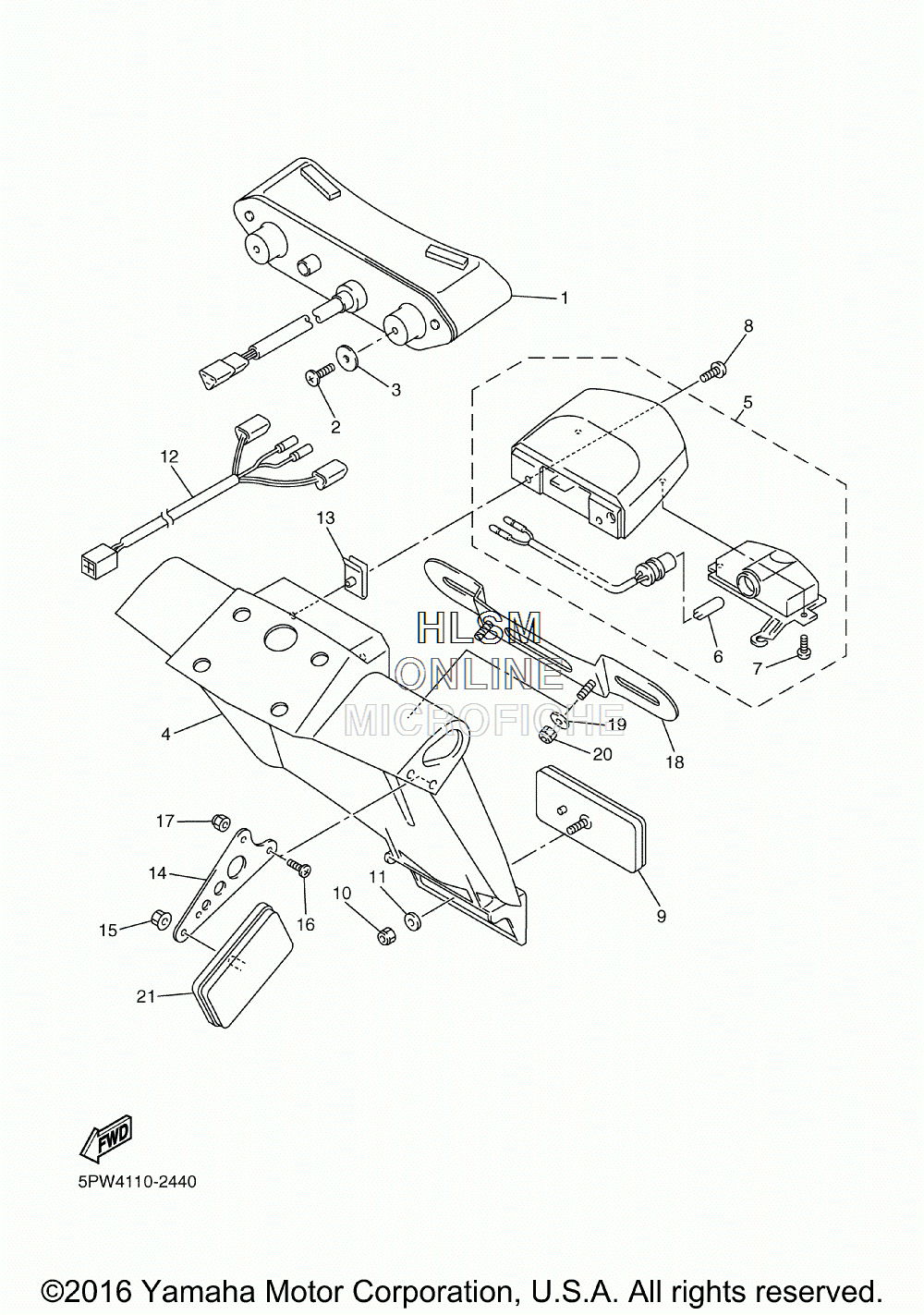

TAILLIGHT для Yamaha YZF-R1 CALIFORNIA - 2002 года выпуска
-
№АртикулНазвание
-
15PW-84710-10-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
390201-05033-00 WASHER, PLATEWASHER, PLATE
-
45PW-21629-10-00 GUARD, MUDGUARD, MUD
-
55PW-84745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
64HC-84744-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
797706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
85PW-84726-00-00 SCREWSCREW
-
93Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1095617-05100-00 ...NUT, U...NUT, U
-
1190201-05725-00 WASHER, PLATEWASHER, PLATE
-
125PW-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
-
134KB-84117-00-00 NUTNUT
-
145PW-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
1595707-05500-00 NUT, FLANGENUT, FLANGE
-
1690150-04041-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
1795607-04100-00 NUT, UNUT, U
-
185MT-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
1990201-06057-00 WASHER, PLATEWASHER, PLATE
-
2095607-06100-00 NUT, UNUT, U
-
213Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
