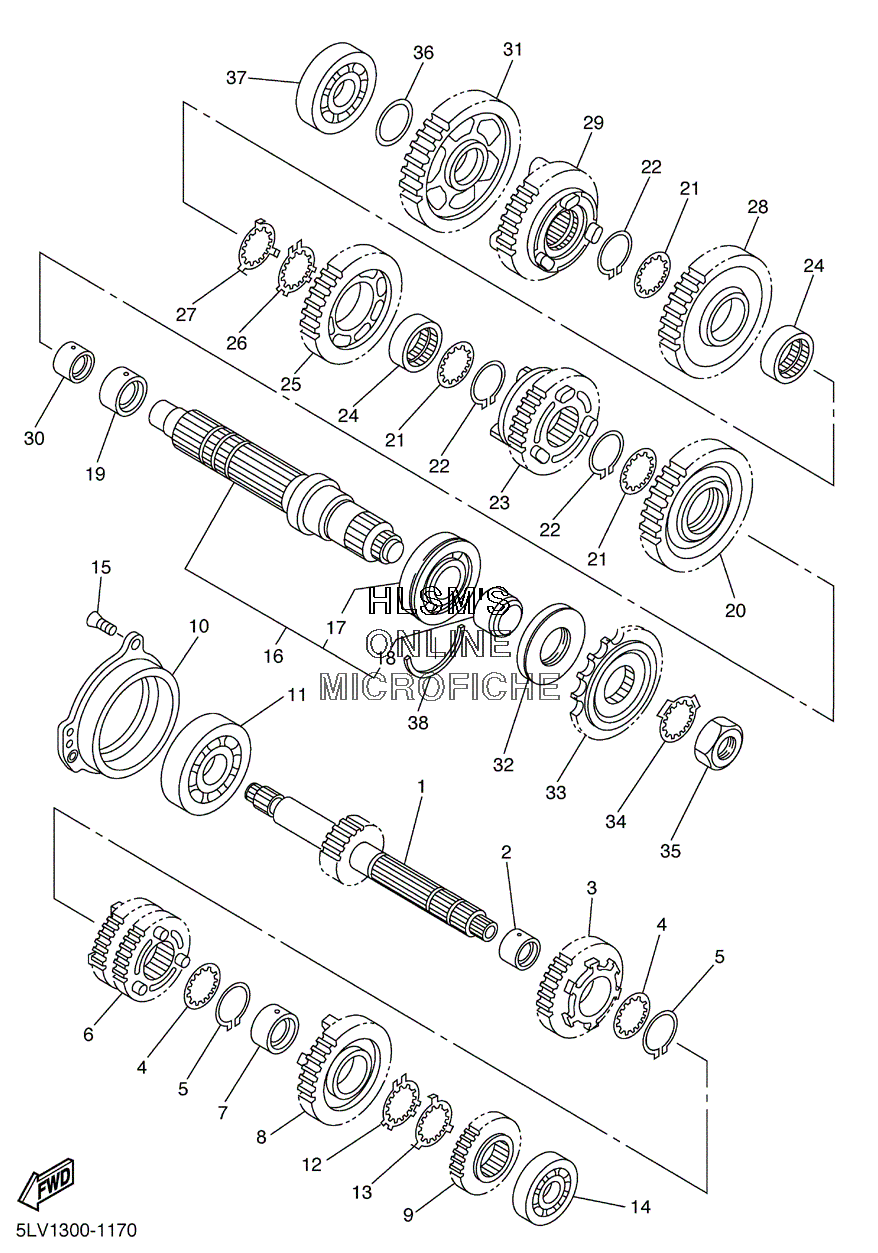

TRANSMISSION для Yamaha FZS 1000 SP FZ-1 CALIFORNIA - 2003 года выпуска
-
№АртикулНазвание
-
15LV-17411-00-00 AXLE, MAIN (14T)AXLE, MAIN (14T)
-
290387-2811B-00 COLLARCOLLAR
-
35JJ-17151-00-00 GEAR, 5TH PINION (25T)GEAR, 5TH PINION (25T)
-
490209-25342-00 WASHERWASHER
-
593440-28062-00 CIRCLIPCIRCLIP
-
65JJ-17131-00-00 GEAR, 3RD PINION (20/21T)GEAR, 3RD PINION (20/21T)
-
790387-2810U-00 COLLARCOLLAR
-
85JJ-17161-00-00 GEAR, 6TH PINION (26T)GEAR, 6TH PINION (26T)
-
95JJ-17121-01-00 GEAR, 2ND PINION (19T)GEAR, 2ND PINION (19T)
-
105JJ-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
1193306-37807-00 BEARINGBEARING
-
1290209-25349-00 WASHERWASHER
-
1390209-25350-00 WASHERWASHER
-
1493306-27208-00 BEARINGBEARING
-
1590149-06126-00 SCREWSCREW
-
165LV-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
1793306-20705-00 ...BEARING (B6207N)...BEARING (B6207N)
-
1890387-30001-00 ...COLLAR...COLLAR
-
1990387-3311C-00 COLLARCOLLAR
-
205JJ-17221-00-00 GEAR, 2ND WHEEL (35T)GEAR, 2ND WHEEL (35T)
-
2190209-30344-00 WASHERWASHER
-
2293440-32063-00 CIRCLIPCIRCLIP
-
235PW-17261-00-00 GEAR, 6TH WHEEL (29T)GEAR, 6TH WHEEL (29T)
-
2490387-3310V-00 COLLARCOLLAR
-
255JJ-17241-00-00 GEAR, 4TH WHEEL (28T)GEAR, 4TH WHEEL (28T)
-
2690209-30345-00 WASHERWASHER
-
2790209-30343-00 WASHERWASHER
-
285JJ-17231-00-00 GEAR, 3RD WHEEL (30T)GEAR, 3RD WHEEL (30T)
-
295JJ-17251-00-00 GEAR, 5TH WHEEL (30T)GEAR, 5TH WHEEL (30T)
-
3090387-2511A-00 COLLARCOLLAR
-
315JJ-17211-00-00 GEAR,1ST WHEEL (35T)GEAR,1ST WHEEL (35T)
-
3293102-45465-00 OIL SEALOIL SEAL
-
334XV-17460-00-00 SPROCKET, DRIVE (16T)SPROCKET, DRIVE (16T)
-
3490215-26241-00 WASHER, LOCKWASHER, LOCK
-
3590179-22063-00 NUTNUT
-
3690201-224L4-00 WASHER, PLATEWASHER, PLATE
-
3793306-37209-00 BEARINGBEARING
-
3893440-72049-00 CIRCLIPCIRCLIP
