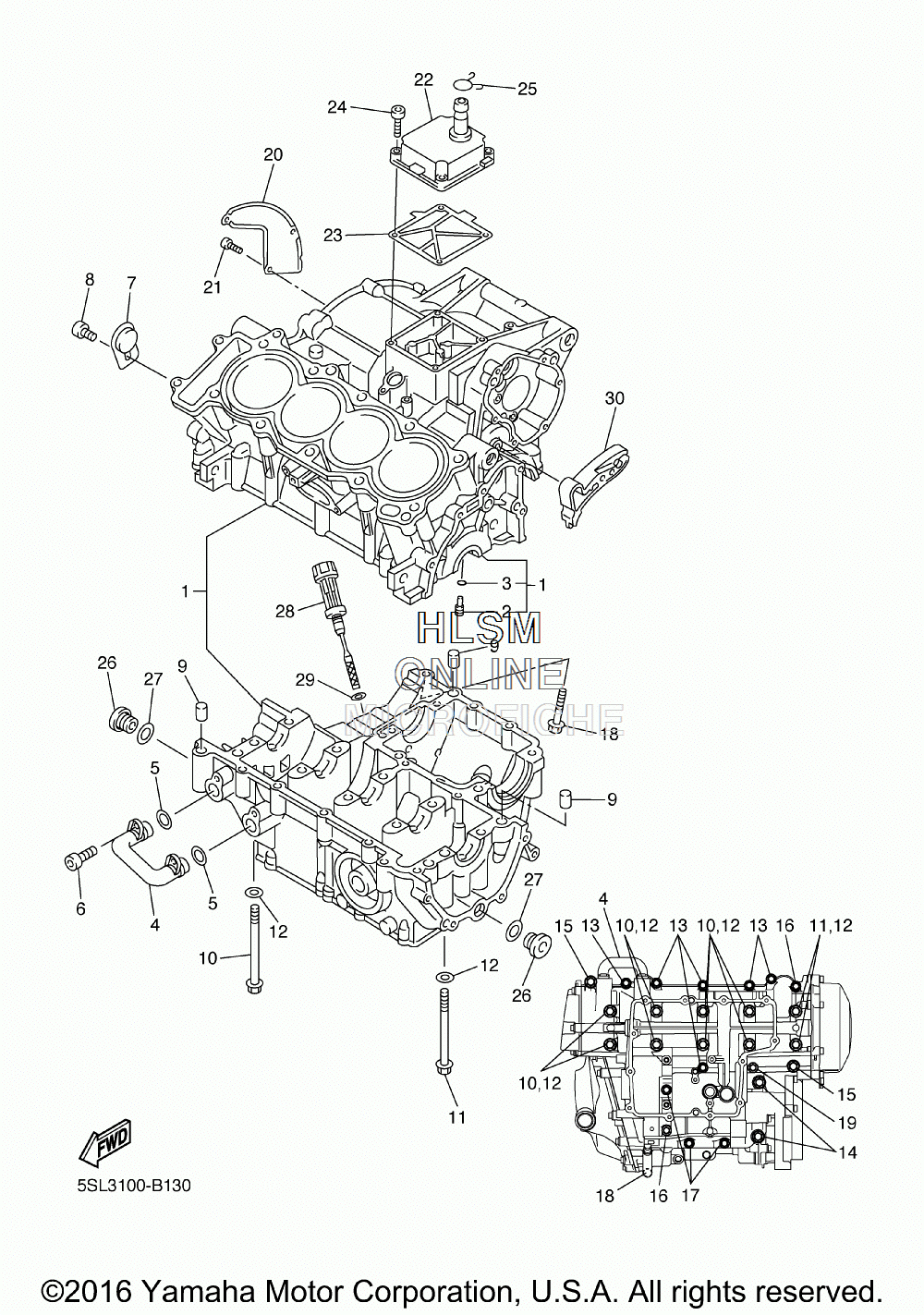

CRANKCASE для Yamaha R6 [ YZFR6R/C] (5SL3) - 2003 года выпуска
-
№АртикулНазвание
-
15SL-15100-01-00 CRANKCASE ASSYCRANKCASE ASSY
-
25EB-15155-00-00 ...NOZZLE 3...NOZZLE 3
-
393210-04092-00 ...O-RING...O-RING
-
45EB-13418-00-00 PIPE, OIL 2PIPE, OIL 2
-
593210-14579-00 O-RINGO-RING
-
690110-06091-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
75SL-15189-00-00 PLUGPLUG
-
890149-06020-00 SCREWSCREW
-
999530-10014-00 PIN, DOWELPIN, DOWEL
-
1090105-087A0-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-086A9-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-087K3-00 WASHER, PLATEWASHER, PLATE
-
1395817-06055-00 BOLT, FLANGEBOLT, FLANGE
-
1495817-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1590109-065G3-00 BOLTBOLT
-
1695817-06065-00 BOLT, FLANGEBOLT, FLANGE
-
1795817-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1895817-06100-00 BOLT, FLANGEBOLT, FLANGE
-
1990105-06006-00 BOLT, FLANGEBOLT, FLANGE
-
205SL-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
2190149-06020-00 SCREWSCREW
-
225SL-15413-00-00 COVERCOVER
-
235SL-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
2491314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590467-14015-00 CLIPCLIP
-
2636Y-15189-00-00 PLUGPLUG
-
2793210-16325-00 O-RINGO-RING
-
285EB-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2993210-09165-00 O-RINGO-RING
-
305SL-15377-00-00 GUIDE, INLETGUIDE, INLET
