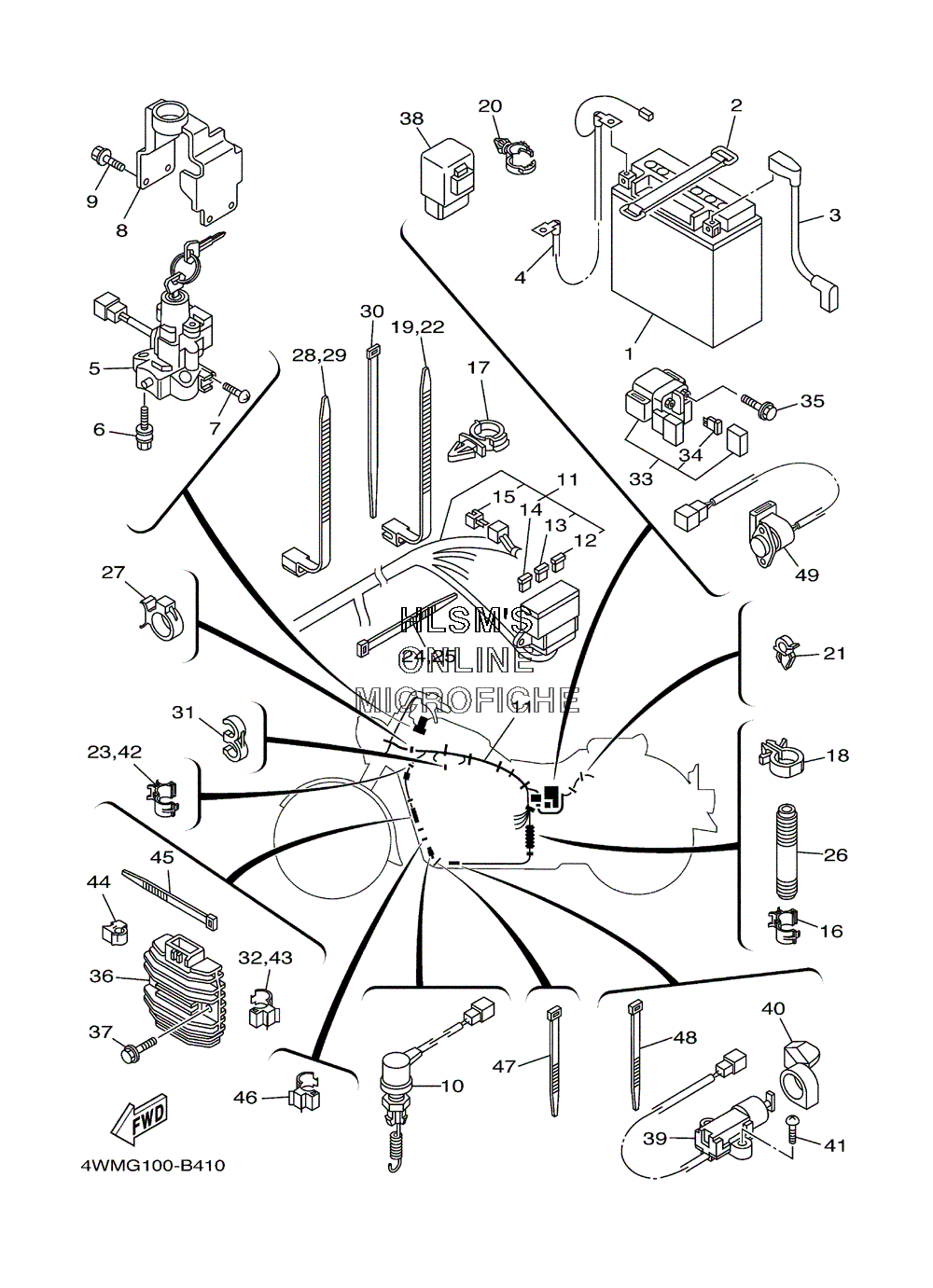

ELECTRICAL 2 для Yamaha XV 1600 AS ROAD STAR MIDNIGHT - 2003 года выпуска
-
№АртикулНазвание
-
1BTY-YTX20-LB-S0 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
24WM-82131-00-00 BAND, BATTERYBAND, BATTERY
-
34WM-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
44WM-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
54WM-82501-01-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
690109-080G5-00 BOLTBOLT
-
798517-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
84WM-82568-00-00 COVER, MAIN SWITCHCOVER, MAIN SWITCH
-
990105-06010-00 BOLT, FLANGEBOLT, FLANGE
-
104WM-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
114WM-82590-00-00 WIRE HARNESS ASSY (EXCEPT CALIF)WIRE HARNESS ASSY (EXCEPT CALIF)
-
114WM-82590-10-00 WIRE HARNESS ASSY (CALIF ONLY)WIRE HARNESS ASSY (CALIF ONLY)
-
121NL-82151-00-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
1336Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
1442X-82151-00-00 ...FUSE (10A)...FUSE (10A)
-
153WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
1690464-20191-00 CLAMPCLAMP
-
1790464-07209-00 CLAMPCLAMP
-
1890464-24230-00 CLAMPCLAMP
-
1990464-15195-00 CLAMPCLAMP
-
2090464-20181-00 CLAMPCLAMP
-
2190464-08263-00 CLAMPCLAMP
-
2290464-15195-00 CLAMPCLAMP
-
2390464-15192-00 CLAMPCLAMP
-
241UA-82591-00-00 CLAMPCLAMP
-
251UA-82591-00-00 CLAMPCLAMP
-
264WM-82139-00-00 TUBETUBE
-
2790464-20191-00 CLAMPCLAMP
-
2825G-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
2990464-12045-00 CLAMPCLAMP
-
3090464-32060-00 CLAMPCLAMP
-
3190464-60067-00 CLAMPCLAMP
-
3290464-10190-00 CLAMPCLAMP
-
334BH-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
341AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
3595027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
365BN-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
3795817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
383EN-81950-00-00 RELAY ASSYRELAY ASSY
-
393LD-82566-70-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
404WM-8252U-00-00 COVERCOVER
-
4195807-05014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
4290464-15192-00 CLAMPCLAMP
-
4390464-10190-00 CLAMP (EXCEPT CALIF)CLAMP (EXCEPT CALIF)
-
4390464-15192-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4490464-05188-00 CLAMPCLAMP
-
451UA-82591-00-00 CLAMPCLAMP
-
4690464-10190-00 CLAMPCLAMP
-
471UA-82591-00-00 CLAMPCLAMP
-
481UA-82591-00-00 CLAMPCLAMP
