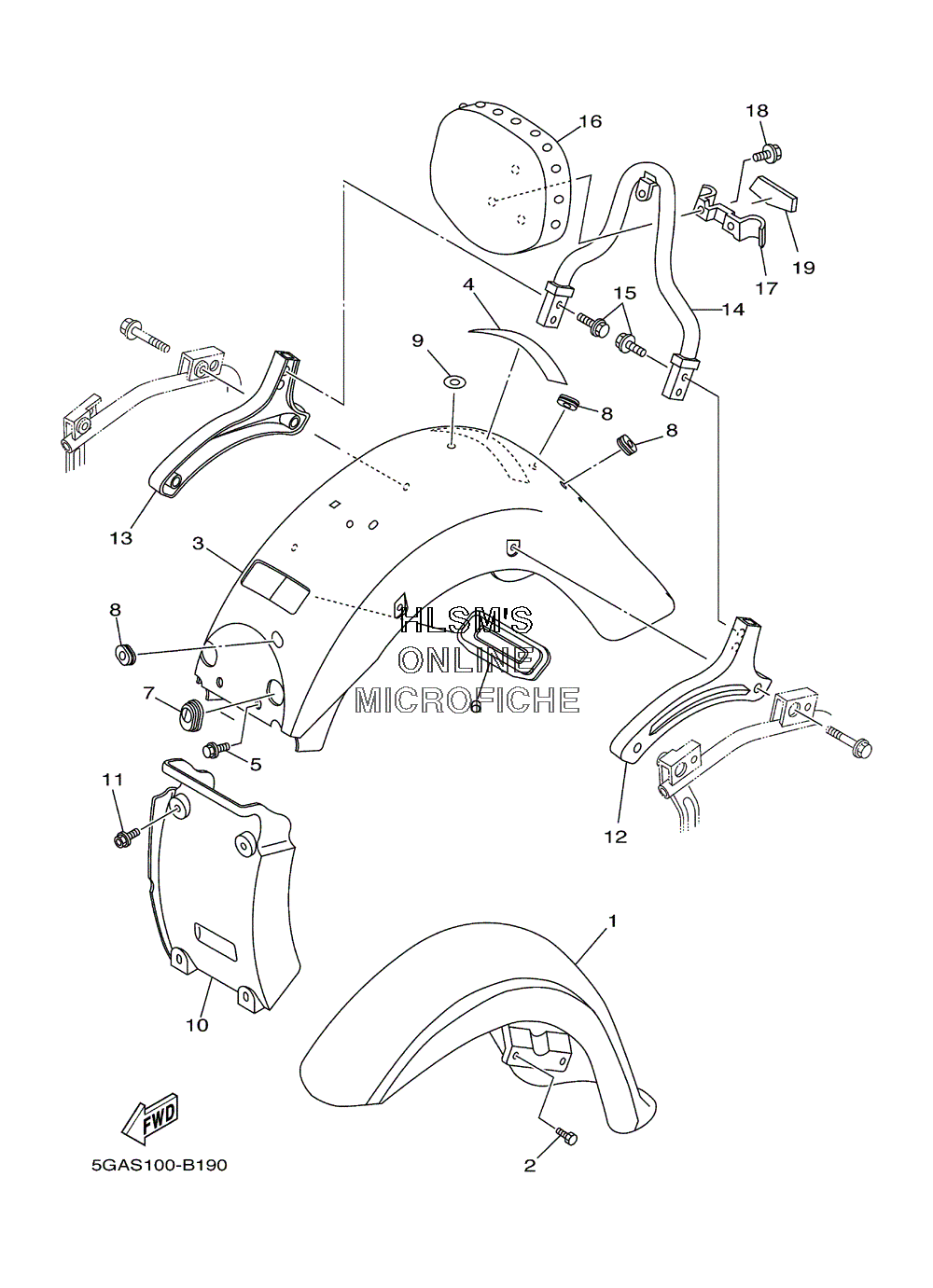

FENDER - FRONT / REAR для Yamaha XV 1600 ATLE RS SILVERADO LTD CALIFORNIA - 2003 года выпуска
-
№АртикулНазвание
-
14WM-YK215-00-P5 FRONT FENDER COMP. (SILVER (S3))FRONT FENDER COMP. (SILVER (S3))
-
291314-08025-00 BOLT, SOCKETBOLT, SOCKET
-
34WM-YK216-01-P5 REAR FENDER C0MP. (SILVER (S3))REAR FENDER C0MP. (SILVER (S3))
-
499247-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
590119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
64WM-21649-00-00 DAMPERDAMPER
-
74WM-21638-00-00 DAMPER 1DAMPER 1
-
890480-15061-00 GROMMETGROMMET
-
94NK-21735-00-00 SEAL 2SEAL 2
-
104WM-21629-00-P7 GUARD, MUD (SILVER (S3))GUARD, MUD (SILVER (S3))
-
1190119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
125GA-2164A-00-00 GRIP 1GRIP 1
-
135GA-2164E-00-00 GRIP 2GRIP 2
-
145GA-2164F-00-00 STAY 1STAY 1
-
1595024-08012-00 BOLT, FLANGEBOLT, FLANGE
-
165GA-2840F-00-00 BACK REST ASSYBACK REST ASSY
-
175GA-2164G-00-00 STAY 2STAY 2
-
1895024-06010-00 BOLT, FLANGEBOLT, FLANGE
-
195GA-24786-00-00 EMBLEMEMBLEM
