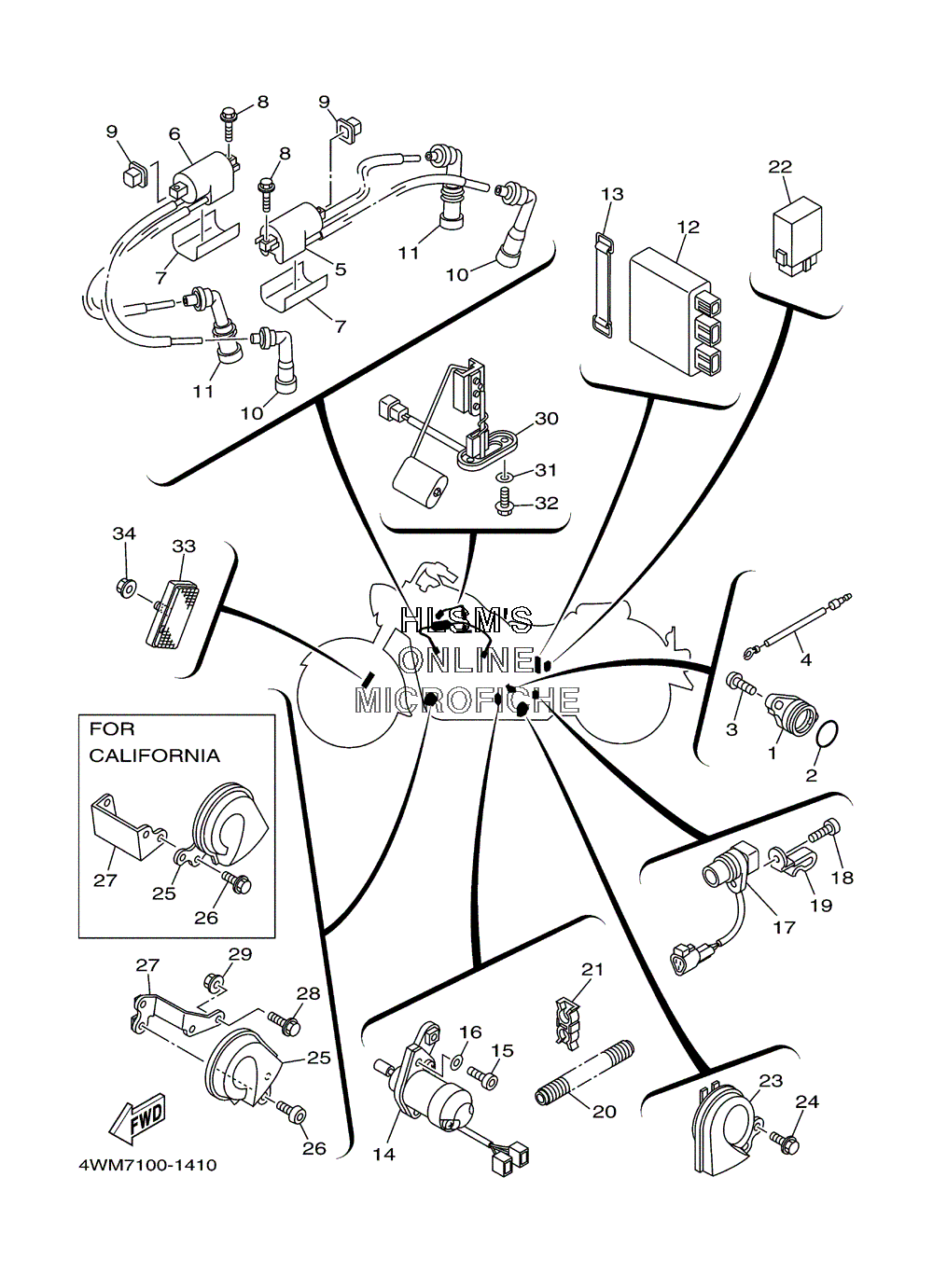

ELECTRICAL для Yamaha XV 1600 ATLE RS SILVERADO LTD - 2003 года выпуска
-
№АртикулНазвание
-
11AE-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
293210-29196-00 O-RINGO-RING
-
392014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
44WM-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
55MB-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
64WM-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
74WM-21266-00-00 SHEET 1SHEET 1
-
895817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
94U8-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
104TR-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
114NK-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
124WM-82305-00-00 IGNITOR UNIT ASSYIGNITOR UNIT ASSY
-
137H3-82131-00-00 BAND, BATTERYBAND, BATTERY
-
144WM-86110-00-00 SOLENOIDSOLENOID
-
1590110-06114-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690214-06002-00 WASHER, PLATEWASHER, PLATE
-
174WM-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
1891314-06014-00 BOLT, SOCKETBOLT, SOCKET
-
1990465-06376-00 CLAMPCLAMP
-
204WM-81842-00-00 COVERCOVER
-
2190464-18266-00 CLAMPCLAMP
-
224WM-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
234WM-83371-00-00 HORNHORN
-
2495817-06012-00 BOLT, FLANGE (EXCEPT CALIF)BOLT, FLANGE (EXCEPT CALIF)
-
254WM-83371-20-00 HORN (EXCEPT CALIF)HORN (EXCEPT CALIF)
-
254WM-83371-10-00 HORN (CALIF ONLY)HORN (CALIF ONLY)
-
2695817-06012-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
2692017-06012-00 SCREW (EXCEPT CALIF)SCREW (EXCEPT CALIF)
-
274WM-83378-00-00 STAY, HORN (EXCEPT CALIF)STAY, HORN (EXCEPT CALIF)
-
274WM-83378-10-00 STAY, HORN (CALIF ONLY)STAY, HORN (CALIF ONLY)
-
2890105-06009-00 BOLT, WASHER BASED (EXCEPT CALIF)BOLT, WASHER BASED (EXCEPT CALIF)
-
2995707-06500-00 NUT, FLANGE (EXCEPT CALIF)NUT, FLANGE (EXCEPT CALIF)
-
304WM-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
3190202-05187-00 WASHER, PLATEWASHER, PLATE
-
3295817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3311H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
3495707-05500-00 NUT, FLANGENUT, FLANGE
