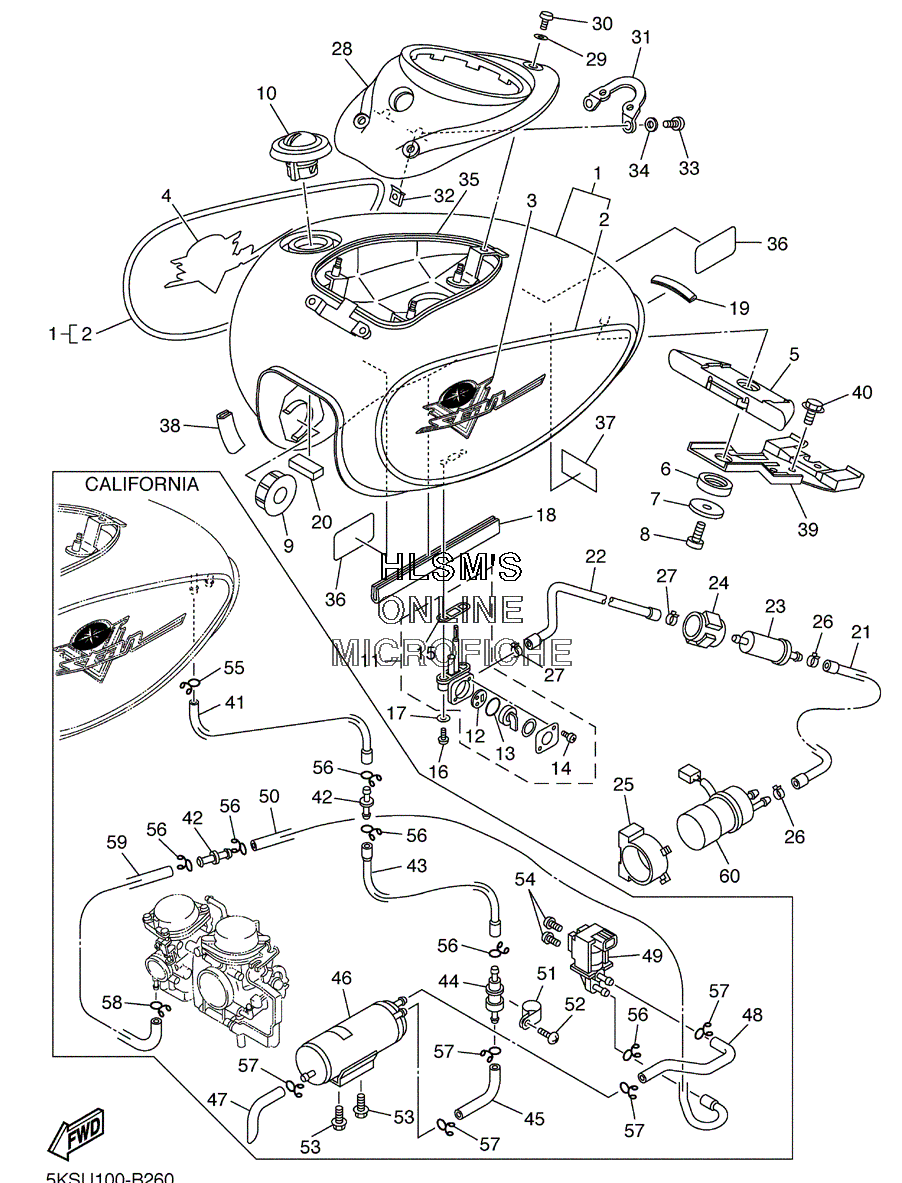

FUEL TANK для Yamaha XVS 1100 AW V STAR CLASSIC COAST CALIFORNIA - 2003 года выпуска
-
№АртикулНазвание
-
15EL-Y2410-T0-W1 FUEL TANK COMP. (PEARL WHITE (NPW) / BROWN (IPB)) (EXCEPT CALIF)FUEL TANK COMP. (PEARL WHITE (NPW) / BROWN (IPB)) (EXCEPT CALIF)
-
15EL-Y2410-30-W3 FUEL TANK COMP. (PEARL WHITE (NPW) / BROWN (IPB)) (CALIF ONLY)FUEL TANK COMP. (PEARL WHITE (NPW) / BROWN (IPB)) (CALIF ONLY)
-
25KS-24240-G0-00 ...GRAPHIC SET...GRAPHIC SET
-
35KS-2416B-10-00 EMBLEMEMBLEM
-
45KS-2417B-10-00 EMBLEMEMBLEM
-
55EL-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
64TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
790201-060S9-00 WASHER, PLATEWASHER, PLATE
-
892017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
92YK-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
104NK-24602-10-00 CAP ASSYCAP ASSY
-
105BN-24602-00-00 CAP ASSYCAP ASSY
-
114WM-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
123AJ-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
133AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
1497801-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
154X8-24512-00-00 ...O-RING...O-RING
-
1690149-06011-00 SCREWSCREW
-
1790202-05193-00 WASHER, PLATEWASHER, PLATE
-
181FK-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
195EL-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
203XV-21717-00-00 DAMPERDAMPER
-
215EL-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
225EL-24313-00-00 PIPE 3PIPE 3
-
231FK-24560-10-00 FILTER ASSYFILTER ASSY
-
241FK-24566-00-00 BRACKET, FILTERBRACKET, FILTER
-
254EB-24398-00-00 BAND 1BAND 1
-
2690467-12053-00 CLIPCLIP
-
2790467-11028-00 CLIPCLIP
-
285EL-2171A-00-00 COVER, TOPCOVER, TOP
-
2990202-05180-00 WASHER, PLATEWASHER, PLATE
-
3090110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
315EL-2412F-00-00 BRACKET, SEATBRACKET, SEAT
-
3290183-05061-00 NUT, SPRINGNUT, SPRING
-
3398507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3492907-05600-00 WASHER, PLATEWASHER, PLATE
-
355EL-2414G-00-00 SEALSEAL
-
364DN-21268-00-00 SEALSEAL
-
373SP-21732-00-00 SEAL 1SEAL 1
-
385EL-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
395EL-2411F-00-00 PLATE, FITTINGPLATE, FITTING
-
4095807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
415EL-24321-00-00 PIPE 10PIPE 10
-
424XY-14568-00-00 JOINTJOINT
-
435EL-24312-10-00 PIPE 2PIPE 2
-
445RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
4590445-11030-00 HOSEHOSE
-
465EL-24170-00-00 CANISTER ASSYCANISTER ASSY
-
475EL-24316-00-00 PIPE 6PIPE 6
-
485EL-24317-00-00 PIPE 7PIPE 7
-
494WM-14896-00-00 VALVE, OUTER VENT CONTROL 2VALVE, OUTER VENT CONTROL 2
-
505EL-24315-00-00 PIPE 5PIPE 5
-
5190461-15139-00 CLAMPCLAMP
-
5297707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
5390105-06446-00 BOLT, FLANGEBOLT, FLANGE
-
5490150-05040-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
5590467-08075-00 CLIPCLIP
-
5690467-09103-00 CLIPCLIP
-
5790467-10041-00 CLIPCLIP
-
5890467-08017-00 CLIPCLIP
-
595EL-24322-00-00 PIPE 11PIPE 11
-
605KS-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
