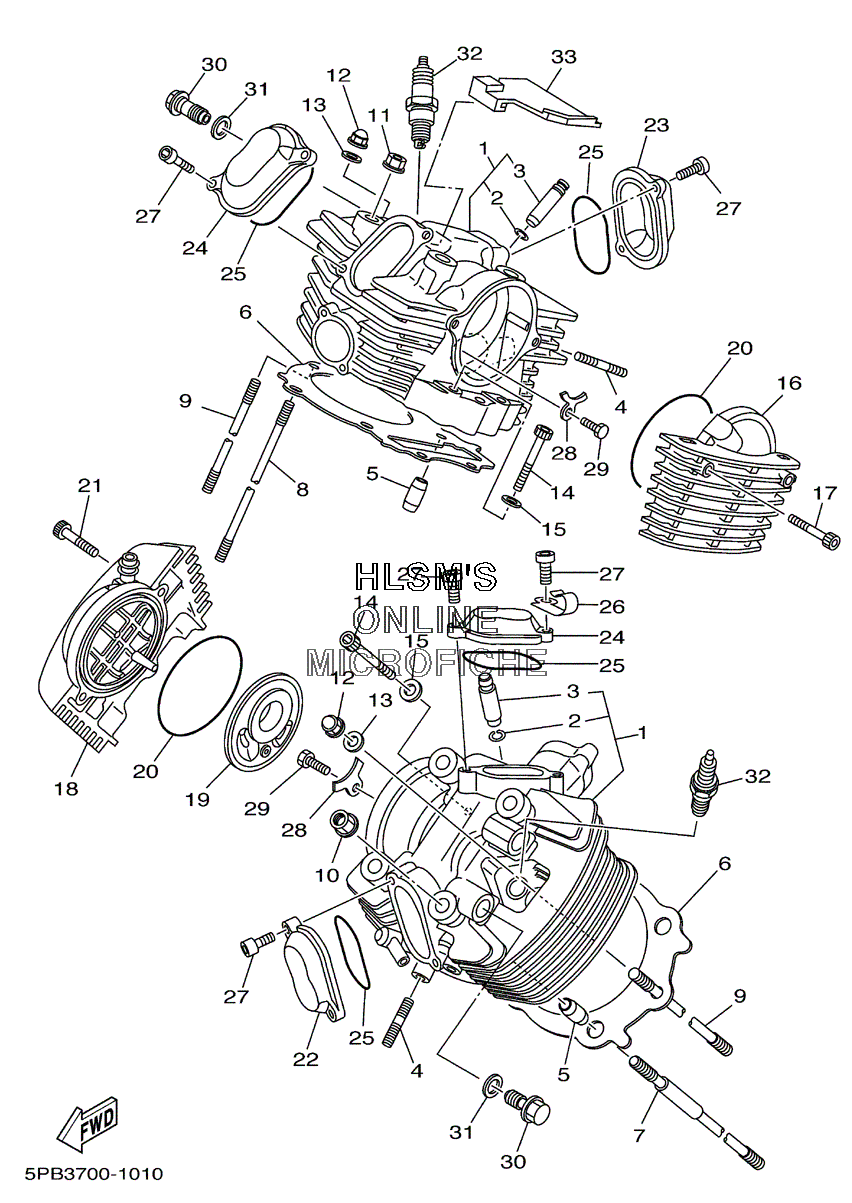

CYLINDER HEAD для Yamaha XVS 1100 V STAR CUSTOM CALIFORNIA - 2003 года выпуска
-
№АртикулНазвание
-
15EL-11101-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
293440-14086-00 ...CIRCLIP...CIRCLIP
-
34X7-11133-10-00 ...GUIDE, IN./EX. VALVE...GUIDE, IN./EX. VALVE
-
495617-08625-00 BOLT, STUDBOLT, STUD
-
591817-30011-00 PIN, DOWELPIN, DOWEL
-
65EL-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
74X7-11363-01-00 BOLT, CYLINDER HOLDING 3BOLT, CYLINDER HOLDING 3
-
890116-12469-00 BOLT, STUDBOLT, STUD
-
990116-10344-00 BOLT, STUDBOLT, STUD
-
1090179-12326-00 NUTNUT
-
1190179-12325-00 NUTNUT
-
1290176-10075-00 NUT, CROWNNUT, CROWN
-
1390201-1D2G9-00 WASHER, PLATEWASHER, PLATE
-
1491314-08050-00 BOLTBOLT
-
1592907-08600-00 WASHER, PLATEWASHER, PLATE
-
165EL-1111H-00-00 COVER, CYLINDER HEAD SIDE 4COVER, CYLINDER HEAD SIDE 4
-
1791314-06035-00 BOLTBOLT
-
185EL-11185-00-00 COVER, CYLINDER HEAD SIDE 1COVER, CYLINDER HEAD SIDE 1
-
1942X-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
2093210-92448-00 O-RINGO-RING
-
2191314-06035-00 BOLTBOLT
-
2242H-11186-01-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
235EL-11187-00-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
244X7-11187-01-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
2593210-62446-00 O-RINGO-RING
-
2690465-10029-00 CLAMPCLAMP
-
2791314-06016-00 BOLTBOLT
-
284X7-1111F-00-00 PLATEPLATE
-
2997017-08020-00 BOLTBOLT
-
3090401-16002-00 BOLT, UNIONBOLT, UNION
-
3190430-17168-00 GASKETGASKET
-
32NGK-BPR7E-S0-00 PLUG, SPARK (NGK BPR7ES) (OPT)PLUG, SPARK (NGK BPR7ES) (OPT)
-
335EL-1112M-00-00 COVERCOVER
