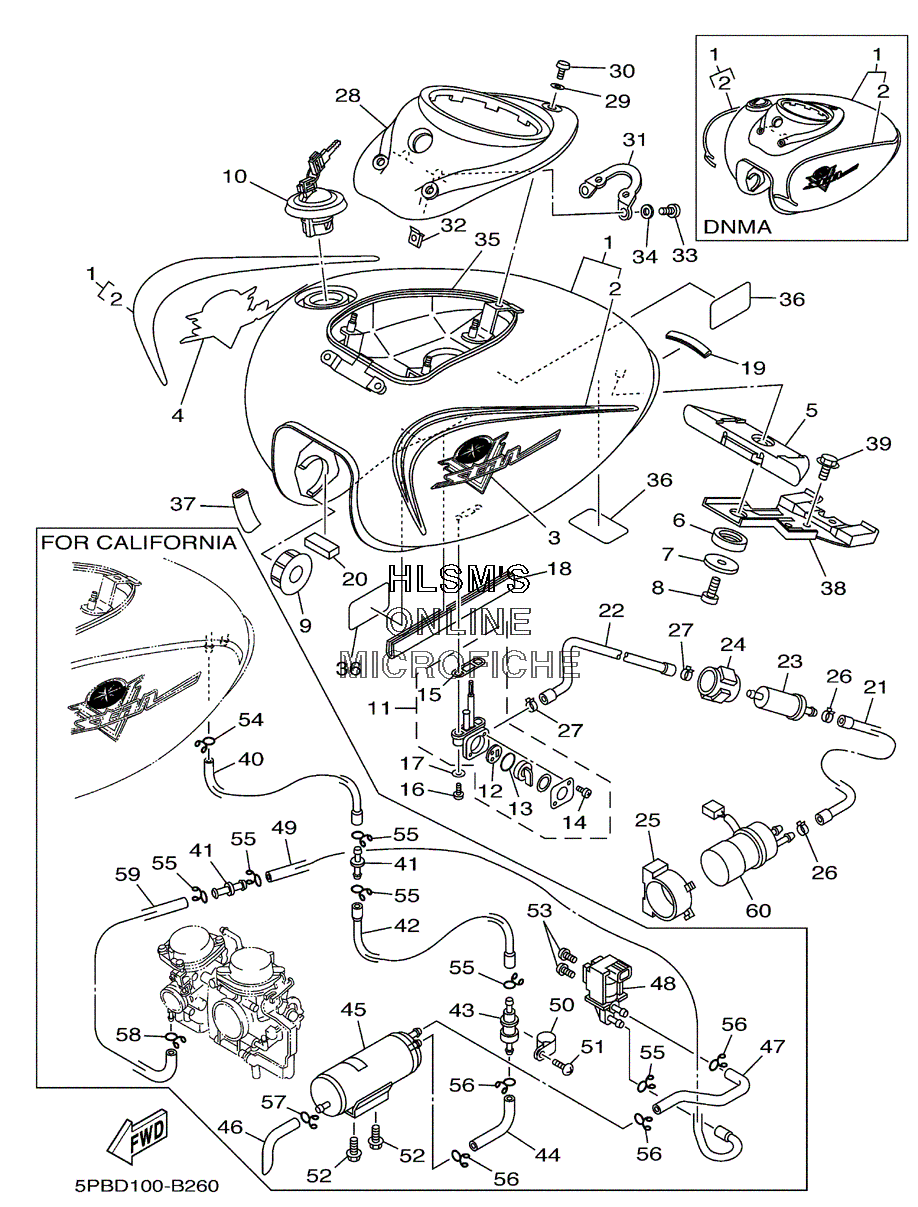

FUEL TANK для Yamaha XVS 1100 V STAR CUSTOM - 2003 года выпуска
-
№АртикулНазвание
-
15EL-Y2410-T0-X8 FUEL TANK COMP. (YAMAHA BLACK (YB)) (EXCEPT CALIF)FUEL TANK COMP. (YAMAHA BLACK (YB)) (EXCEPT CALIF)
-
15EL-Y2410-T0-X9 FUEL TANK COMP. (DARK GRAY METALLIC (DNMA)) (EXCEPT CALIF)FUEL TANK COMP. (DARK GRAY METALLIC (DNMA)) (EXCEPT CALIF)
-
15EL-Y2410-30-W1 FUEL TANK COMP. (YAMAHA BLACK (YB)) (CALIF ONLY)FUEL TANK COMP. (YAMAHA BLACK (YB)) (CALIF ONLY)
-
15EL-Y2410-30-W2 FUEL TANK COMP. (DARK GRAY METALLIC (DNMA)) (CALIF ONLY)FUEL TANK COMP. (DARK GRAY METALLIC (DNMA)) (CALIF ONLY)
-
25PB-24240-60-00 ...GRAPHIC SET (FOR YAMAHA BLACK (YB))...GRAPHIC SET (FOR YAMAHA BLACK (YB))
-
25KS-24240-E0-00 ...GRAPHIC SET (FOR DARK GRAY METALLIC (DNMA))...GRAPHIC SET (FOR DARK GRAY METALLIC (DNMA))
-
35KS-2416B-10-00 EMBLEMEMBLEM
-
45KS-2417B-10-00 EMBLEMEMBLEM
-
55EL-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
64TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
790201-060S9-00 WASHER, PLATEWASHER, PLATE
-
892017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
94H7-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
104NK-24602-10-00 CAP ASSY (CALIF ONLY)CAP ASSY (CALIF ONLY)
-
105BN-24602-00-00 CAP ASSY (EXCEPT CALIF)CAP ASSY (EXCEPT CALIF)
-
114WM-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
123AJ-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
133AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
1498580-03008-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
154X8-24512-00-00 ...O-RING...O-RING
-
1690149-06011-00 SCREWSCREW
-
1790202-05187-00 WASHER, PLATEWASHER, PLATE
-
181FK-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
195EL-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
203XV-21717-00-00 DAMPERDAMPER
-
215EL-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
225EL-24313-00-00 PIPE 3PIPE 3
-
231FK-24560-10-00 FILTER ASSYFILTER ASSY
-
241FK-24566-00-00 BRACKET, FILTERBRACKET, FILTER
-
254EB-24398-00-00 BAND 1BAND 1
-
2690467-11044-00 CLIPCLIP
-
2790467-11028-00 CLIPCLIP
-
285EL-2171A-00-00 COVER, TOPCOVER, TOP
-
2990202-05180-00 WASHER, PLATEWASHER, PLATE
-
3090110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
315EL-2412F-00-00 BRACKET, SEATBRACKET, SEAT
-
3290183-05061-00 NUT, SPRINGNUT, SPRING
-
3398517-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3492907-05600-00 WASHER, PLAINWASHER, PLAIN
-
355EL-2414G-00-00 SEALSEAL
-
361JK-21735-00-00 SEAL 2SEAL 2
-
375EL-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
385EL-2411F-00-00 PLATE, FITTINGPLATE, FITTING
-
3995817-08012-00 BOLT, FLANGEBOLT, FLANGE
-
405EL-24321-00-00 PIPE 10 (CALIF ONLY)PIPE 10 (CALIF ONLY)
-
414XY-14568-00-00 JOINT (CALIF ONLY)JOINT (CALIF ONLY)
-
425EL-24312-10-00 PIPE 2 (CALIF ONLY)PIPE 2 (CALIF ONLY)
-
435RB-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
4490445-11030-00 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
-
455EL-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
465EL-24316-00-00 PIPE 6 (CALIF ONLY)PIPE 6 (CALIF ONLY)
-
475EL-24317-00-00 PIPE 7 (CALIF ONLY)PIPE 7 (CALIF ONLY)
-
484WM-14896-00-00 VALVE, OUTER VENT CONTROL 2 (CALIF ONLY)VALVE, OUTER VENT CONTROL 2 (CALIF ONLY)
-
495EL-24315-00-00 PIPE 5 (CALIF ONLY)PIPE 5 (CALIF ONLY)
-
5090461-15139-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
5195817-06012-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
5295817-06017-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
5398507-05008-00 SCREW, PAN HEAD (CALIF ONLY)SCREW, PAN HEAD (CALIF ONLY)
-
5490467-70930-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5590467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5690467-10008-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5790467-11106-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5890467-08017-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
595EL-24322-00-00 PIPE 11 (CALIF ONLY)PIPE 11 (CALIF ONLY)
-
603YX-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
