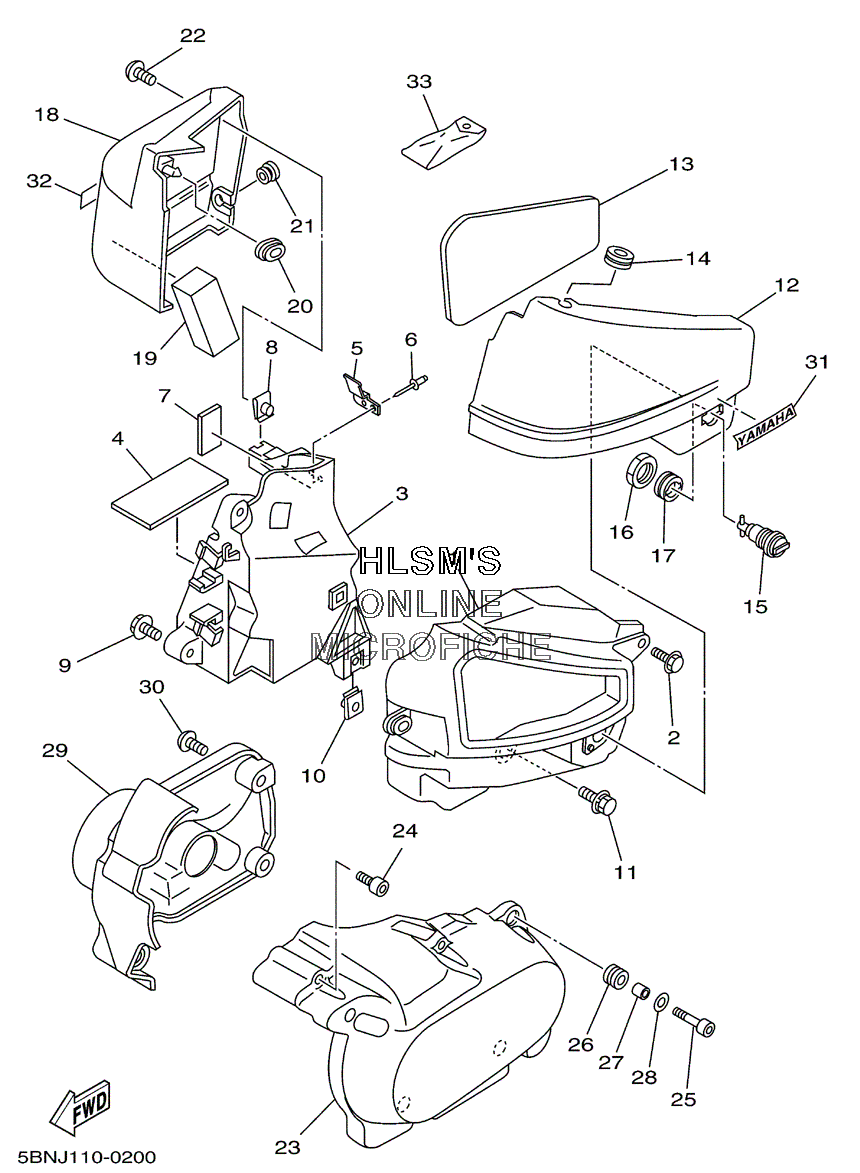

SIDE COVER для Yamaha XVS 650 A V STAR CLASSIC - 2003 года выпуска
-
№АртикулНазвание
-
14TR-2160A-00-00 BOX COMP.BOX COMP.
-
290119-06118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
34TR-2177G-02-00 BOX, BATTERYBOX, BATTERY
-
45Y1-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
55BN-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
690267-32198-00 RIVET, BLINDRIVET, BLIND
-
722F-2139X-00-00 DAMPERDAMPER
-
890183-06069-00 NUT, SPRINGNUT, SPRING
-
990119-06118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090183-06023-00 NUT, SPRINGNUT, SPRING
-
1190119-06172-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
125BN-21711-10-33 COVER, SIDE 1 (YAMAHA BLACK (YB))COVER, SIDE 1 (YAMAHA BLACK (YB))
-
125BN-21711-10-PB COVER, SIDE 1 (DARK VIOLET METALLIC (DVMA))COVER, SIDE 1 (DARK VIOLET METALLIC (DVMA))
-
125BN-21711-10-Y9 COVER, SIDE 1 (PEARL WHITE (NPW) FOR SILVER (S3))COVER, SIDE 1 (PEARL WHITE (NPW) FOR SILVER (S3))
-
134TR-21717-00-00 DAMPERDAMPER
-
1490480-12320-00 GROMMETGROMMET
-
1555K-21708-00-00 LOCK ASSY 2LOCK ASSY 2
-
1690170-22187-00 NUTNUT
-
1790480-24186-00 GROMMETGROMMET
-
185BN-21721-00-33 COVER, SIDE 2 (YAMAHA BLACK (YB))COVER, SIDE 2 (YAMAHA BLACK (YB))
-
185BN-21721-00-PC COVER, SIDE 2 (DARK VIOLET METALLIC (DVMA))COVER, SIDE 2 (DARK VIOLET METALLIC (DVMA))
-
185BN-21721-00-Y9 COVER, SIDE 2 (PEARL WHITE (NPW) FOR SILVER (S3))COVER, SIDE 2 (PEARL WHITE (NPW) FOR SILVER (S3))
-
1984M-77555-00-00 PROTECTOR 5PROTECTOR 5
-
2090480-01559-00 GROMMETGROMMET
-
2190480-12320-00 GROMMETGROMMET
-
2290149-06302-00 SCREWSCREW
-
235BN-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
2490110-06254-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2591314-06020-00 BOLTBOLT
-
2690480-10289-00 GROMMETGROMMET
-
2790387-0600V-00 COLLARCOLLAR
-
2890201-06062-00 WASHER, PLATEWASHER, PLATE
-
294VR-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
3090110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3199247-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
3299247-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
334TR-28100-00-00 TOOL KITTOOL KIT
